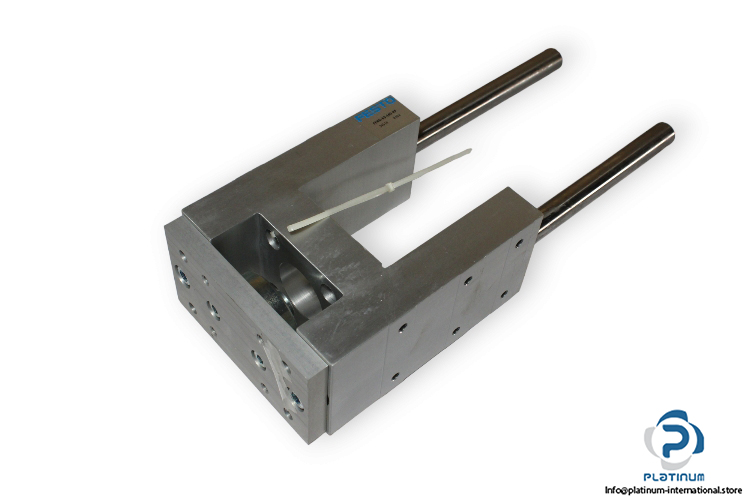

Festo 34515 Guide Unit

Manufacturer: FESTO

Type: Guide unit

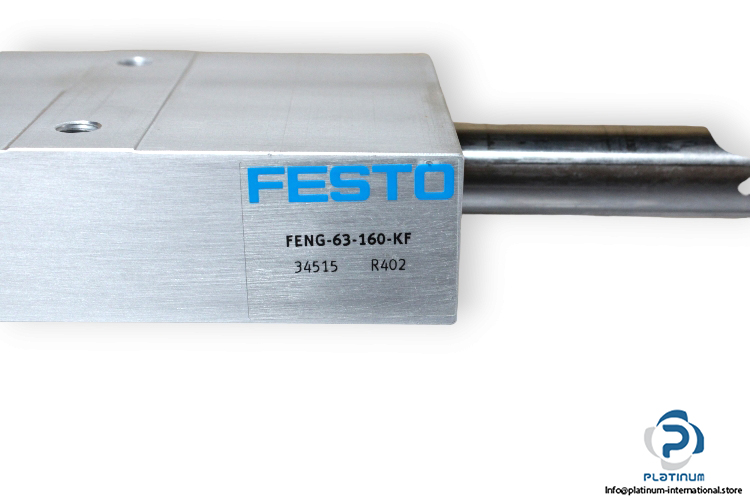

Model: FENG-63-160-KF

Part No.: 34515



Size: 63

Stroke: 160 mm

Mounting position: Any

Guide: Recirculating ball bearing guide

Structural design: Guide

Ambient temperature: -20 °C … 80 °C

Max. force Fy: 1260 N

Max. force Fy static: 1600 N

Max. force Fz: 1260 N

Max. force Fz static: 1600 N

Max. torque Mx: 75 Nm

Max. static moment Mx: 95 Nm
