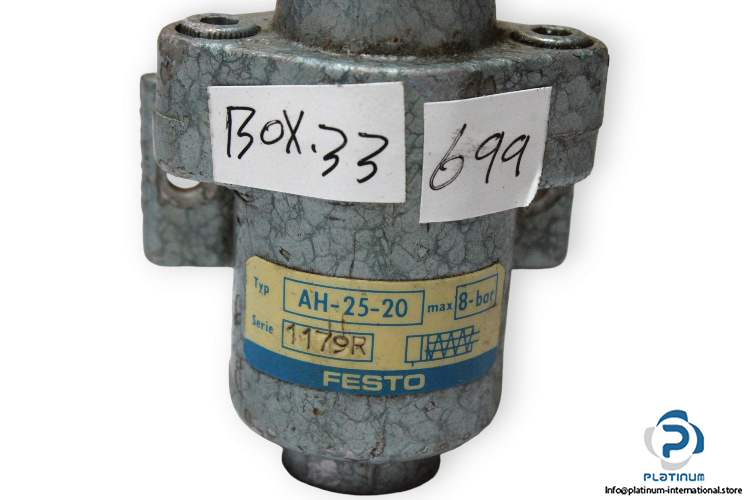

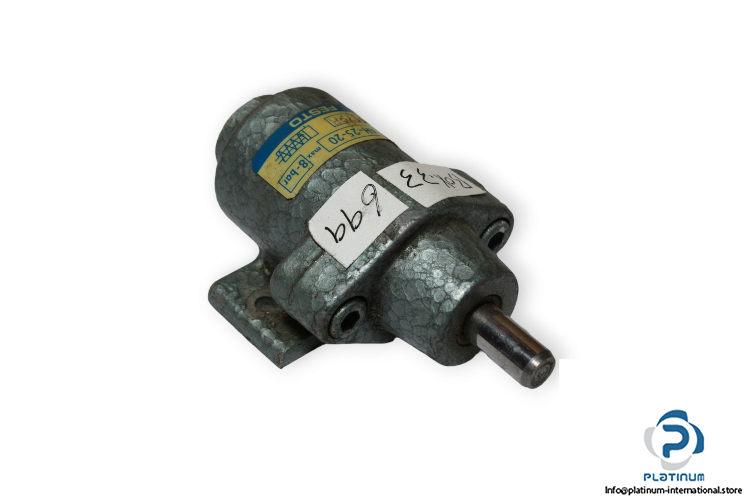

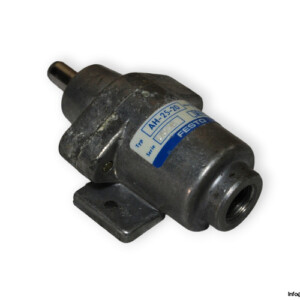

Festo 2388 Single Acting Cylinder

Manufacturer: FESTO
Type: Single acting cylinder
Model: AH-25-20
Part No.: 2388

Medium: Compressed air
Mode of operation: Single, pushing
Shape piston: Round
Shape of piston rod: Round
Piston, nominal size: 25
Stroke: 20 mm
Piston rod diameter: 8 mm
Operating pressure min.: 1,5 bar
Operating pressure max.: 8 bar
Minimum ambient temperature: -20 °C
Maximum ambient temperature: 80 °C
Material of barrel/housing: Cast aluminium, Die-cast aluminium
Air connection type cover cap: Female thread
EE Connecting thread for end cap: G 1/4
Effective force (theor.) at 6 bar, adv: 0.220 N
