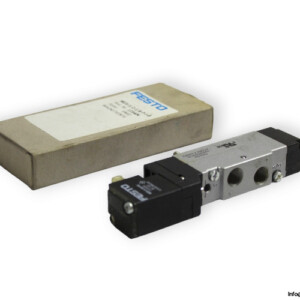

Festo 173404 Single Solenoid Valve
Utilisé
En stock2 unitésPrêt à être expédié
40,00$
SINGLE SOLENOID VALVE
FESTO MEH-5/2-1/8-P-I-B solenoid valve with MEH-3-24V DC coil offers 5/2 monostable function, high flow rate, and durable aluminum design for air control.5/2AirAluminiumcoildcdie-castFestoIndustrialMEH-3-24VMEH-5/2-1/8-P-I-BMonostablePneumaticSinglesolenoidValve
Nouveau
Disponible sur demande 55,00$
Ce produit est également disponible en neuf
Voir la nouvelle version →
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

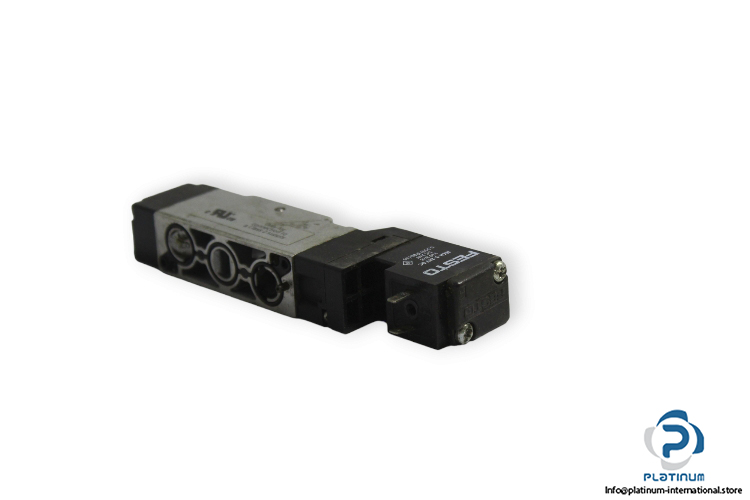

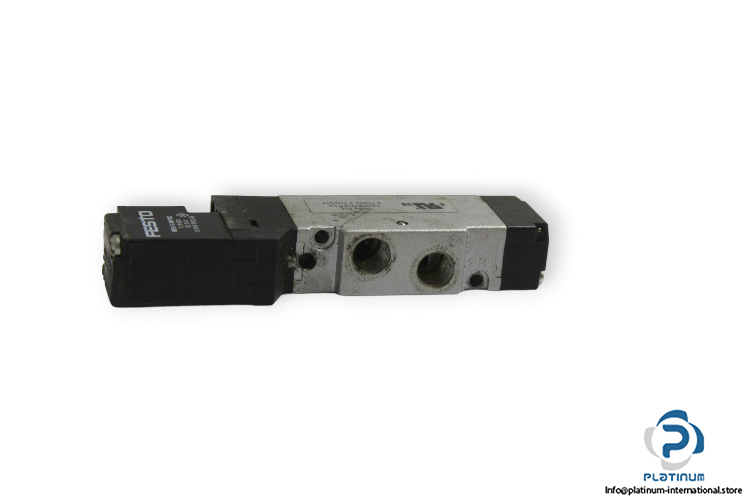

FESTO MEH-5/2-1/8-P-I-B SINGLE SOLENOID VALVE WITH MEH-3-24V DC COIL
The FESTO MEH-5/2-1/8-P-I-B is a high-performance single solenoid valve designed for fast and reliable air control in pneumatic systems. Engineered with a piston slide design and die-cast aluminum housing, this 5/2 monostable valve offers consistent performance in demanding industrial environments. Supplied with the FESTO MEH-3-24V DC solenoid coil for efficient 24V operation.
Manufacturer: FESTO
Type: Single Solenoid Valve

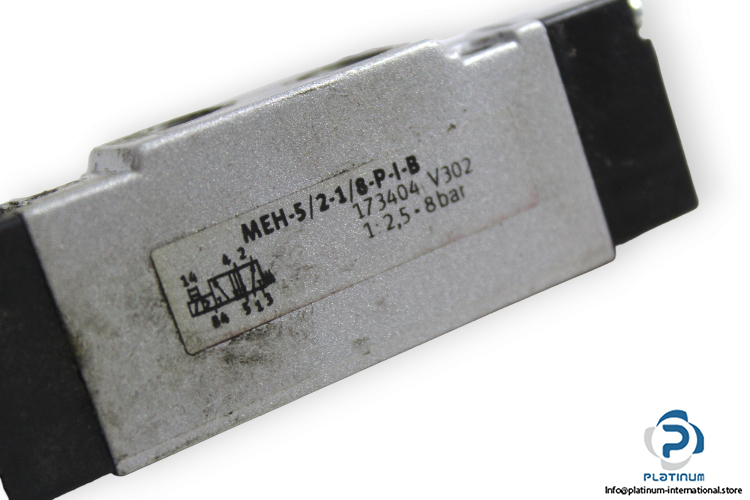

Model: MEH-5/2-1/8-P-I-B
Part No.: 173404
Coil Technical Information
| Fluid | Air |
| Design | Piston slide |
| Function | 5/2 monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 3 ... 8 bar |
| Pilot Pressure | 2.5 ... 8 bar |
| Nominal Flow Rate | 600 l/min |
| Pneumatic Connection | G1/8 |
| Material | Die-cast aluminium |
| Ambient Temperature | -10 / 50 °C |

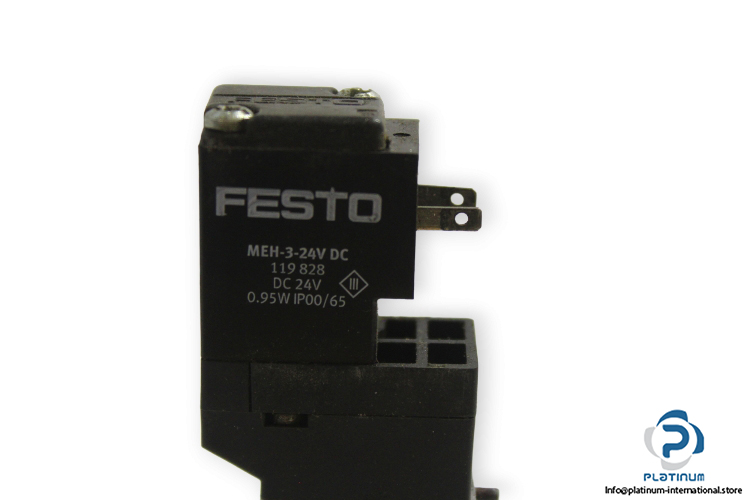

| Attachment | FESTO MEH-3-24V DC SOLENOID COIL |
| Part No. | 119828 |
| Supply Voltage | 24 V DC |
| Power Consumption | 0.95 W |
| Protection Class | IP00 / IP65 |
