Crouzet 81523601 Memory Module
Utilisé
En stock1 unitéPrêt à être expédié
55,55$
Memory Module
The CROUZET 81 523 601 pneumatic memory module, used with the 81 531 001 logic sub-base, offers precise signal retention and control with 200 Nl/min flow, 2“8 bar pressure range, and reliable pneumatic performance.0012002852353160181AirAutomationbarControlCrouzetElementIndustrialLogicMemoryModuleMountingNl/minPneumaticPneumaticsSub-Base
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

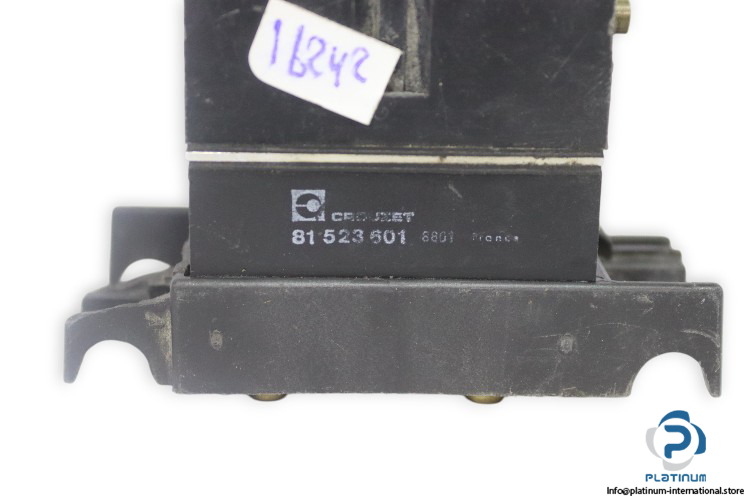

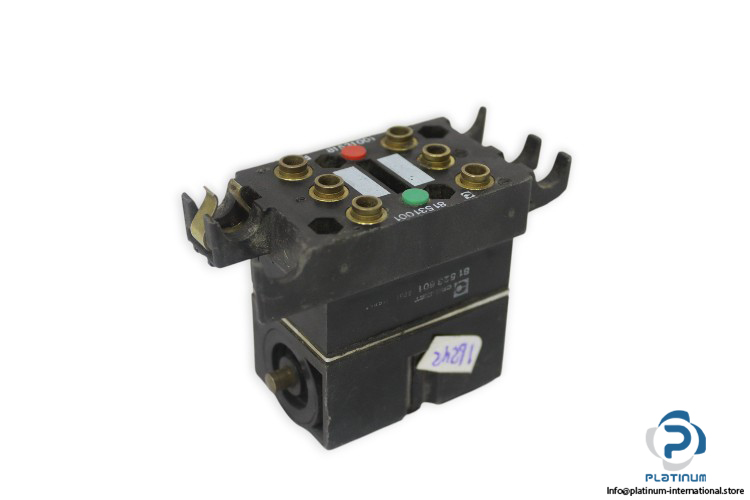

CROUZET 81 523 601 Memory Module with 81 531 001 Logic Element Sub-Base
The CROUZET 81 523 601 Memory Module is a pneumatic logic element designed for control systems requiring reliable signal retention and logic sequencing. It is mounted on the CROUZET 81 531 001 Sub-Base, offering stable performance in automation environments.
Manufacturer: CROUZET
Type: Memory Module
Model: 81 523 601
Ref No.: 8801
Attachment
| Flow at 6 bar | 200 Nl/min |
| Orifice Diameter | 2.7 mm |
| Minimum Pilot Pressure | 2.5 bar |
| Operating Pressure | 2 to 8 bar |
| Mount | Sub-base |

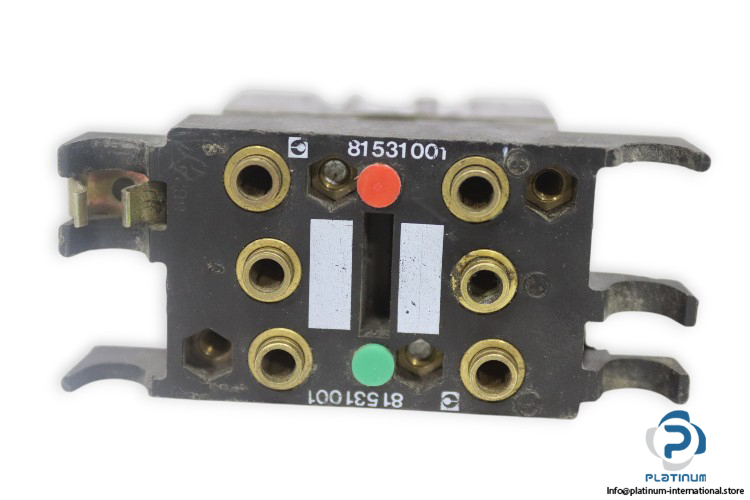

| Attachment | CROUZET 81 531 001 Sub-Base |
| Fluid | Air |
| Shaft Mount | 8 mm via clip |
| Connection | Rear |
