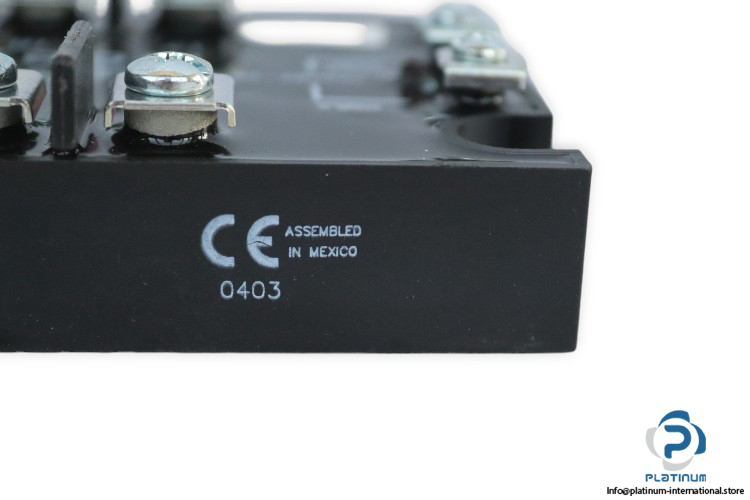

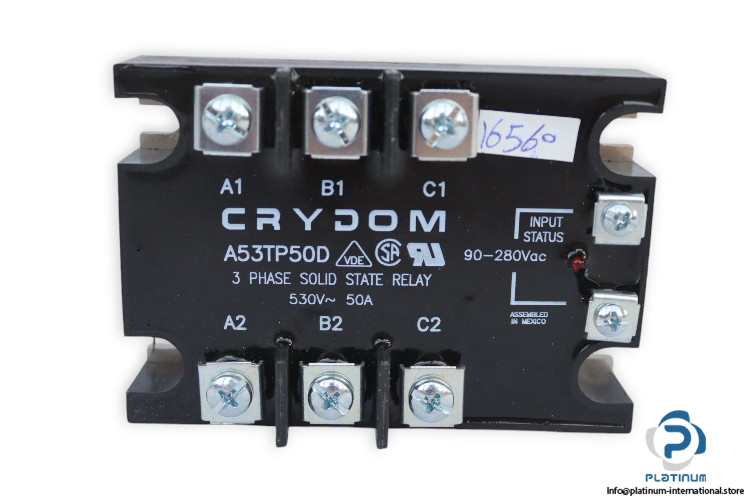

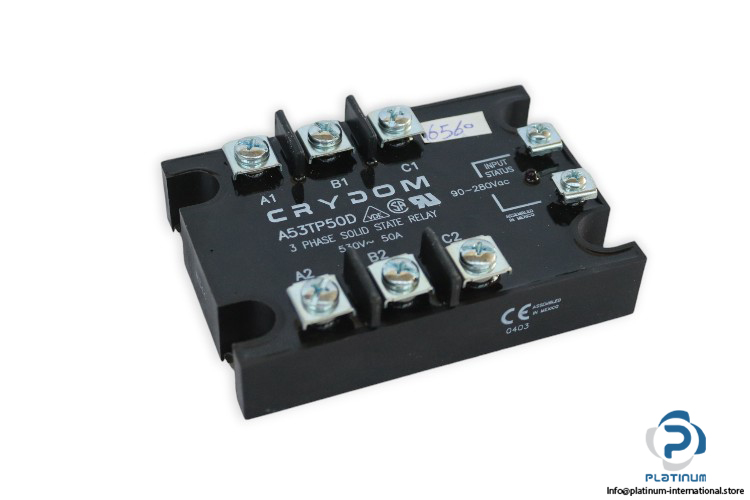

Crydom A53TP50D Solid State Relay

Manufacturer: CRYDOM
Type: Solid State Relay
Series: 53TP
Model: A53TP50D
218-1921

Control Voltage: 90 … 280 V AC
Operating Voltage: 48-530 V AC
Current: 50 A
Minimum Turn-On Voltage: 90 V
Minimum Turn-Off Voltage: 10 VDC
Input Current: 2.2 … 10 mA
Turn-On Time: 50 msec
Ambient Operating Temperature: -40 … 80 °C
Material:
Terminals: Nickel plated Brass
Screws and Saddle clamps: Zinc plated Steel
Dimensions: 103 X 73 X 30 mm
