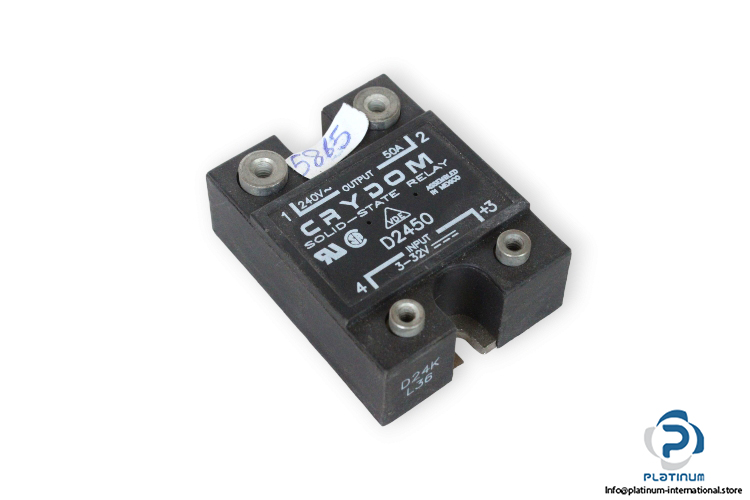

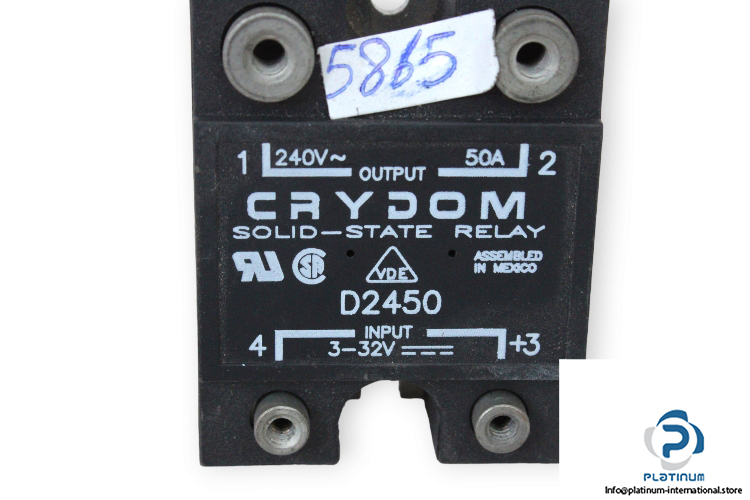

Crydom D2450 Solid State Relay
Manufacturer: CRYDOM
Type: Solid State Relay
Model: D2450
Control Voltage: 3 … 32 VDC
Operating Voltage: 24 … 280 V AC
Current: 50 A
Maximum Reverse Voltage: -32 VDC
Minimum Turn-On Voltage: 3.0 VDC
Must Turn-Off Voltage: 1.0 VDC
Input Current: 7 … 12 mA
Turn-On Time: 1/2 Cycle msec
Ambient Operating Temperature: -40 … 80 °C
Dimensions: 47.6 X 44.5 X 22.6 mm
