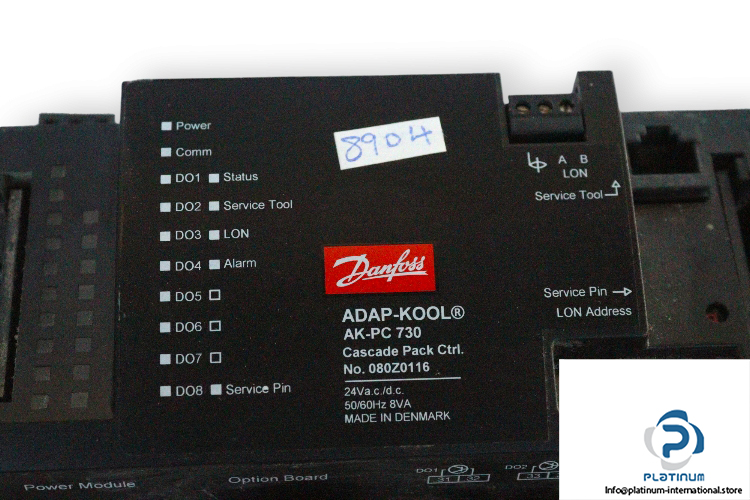

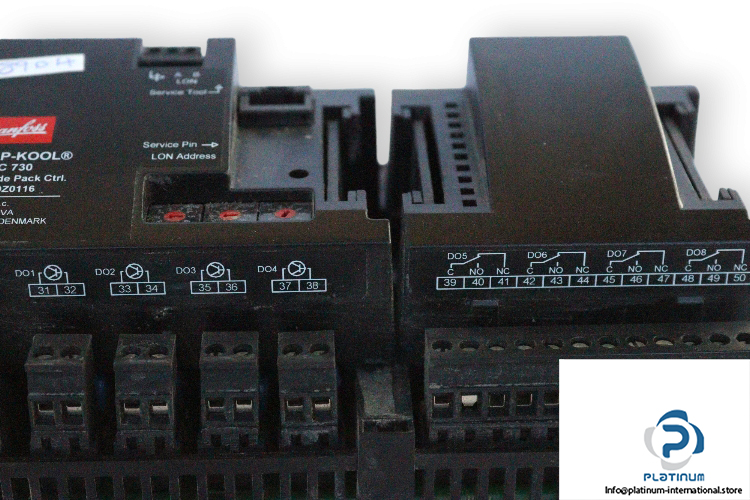

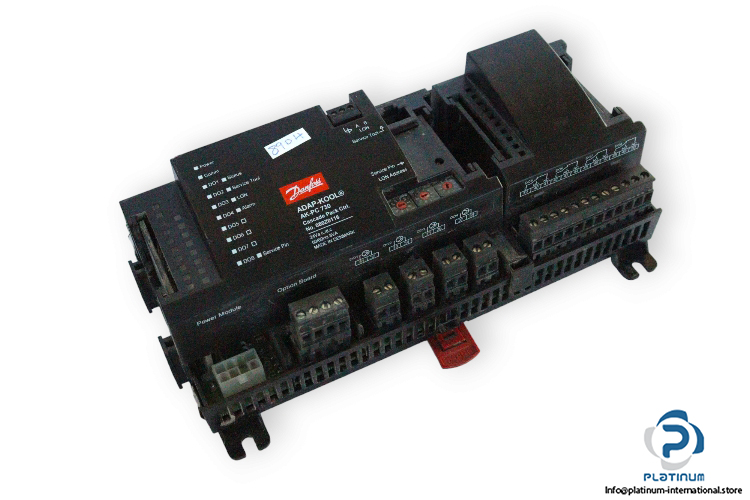

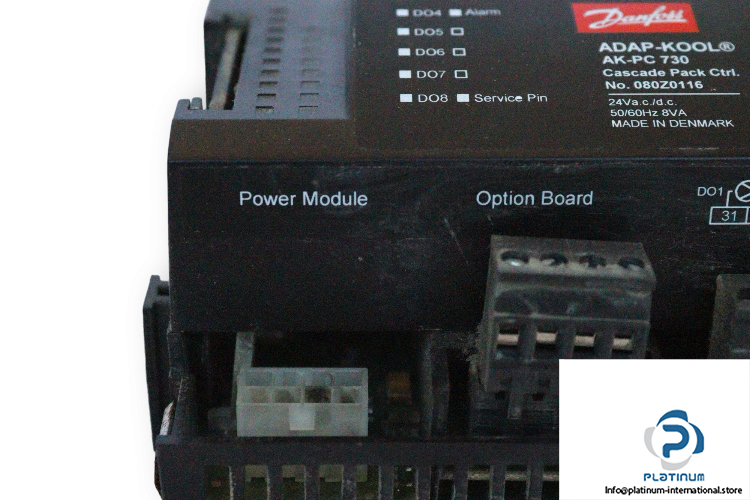

Danfoss AK-PC 730 Capacity Controller
Utilisé
En stock2 unitésPrêt à être expédié
RÉGULATEUR DE CAPACITÉ Danfoss AKPC730 régulateur de capacité avec prise en charge multilingue, entrée 24 V AC/DC et E/S analogiques et relais de précision, idéal pour le contrôle avancé des compresseurs et condensateurs dans les systèmes industriels.
24vACAKPC730CapacitycascadecompressorCondenserControlControllerDanfossdcIndustrialInputModulemultilingualPt1000Unit
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
DANFOSS AKPC730 CAPACITY CONTROLLER
The Danfoss AKPC730 is a high-performance controller designed for efficient and intelligent capacity control of compressors and condensers. It supports multi-language interfaces and a wide range of industrial applications, including cascade control systems.
Manufacturer: Danfoss
Type: Capacity Controller
Model: AKPC730
Code No.: 080Z0116
On/Off Supply Voltage Inputs:
| Function | Controller for capacity control of compressors and condensers |
| Application | Compressor / Condenser / Both / Cascade Control |
| Languages | English, German, French, Dutch, Italian |
| Supply Voltage | 24 V DC/AC |
| Power Consumption | 8 VA |
| Frequency | 50/60 Hz |
| Analog Inputs | Pt 1000 ohm /0°C, Resolution: 0.1°C, Accuracy: +/- 0.5°C |
| - Low Voltage | 0 / 80 V AC/DC (Off: U < 2 V, On: U > 10 V) |
| - High Voltage | 0 / 260 V AC (Off: U < 24 V, On: U > 80 V) |
| Relay Outputs SPDT | AC-1 (ohmic) 4 A, AC-15 (inductive) 3 A, U Min. 24 V, Max. 230 V |
| Ambient Temperature (Operation) | -20 to 55°C |
| Enclosure | Material: PC / ABS, Density: IP10, VBG 4 |
| Mounting | For panel wall or DIN rail |
