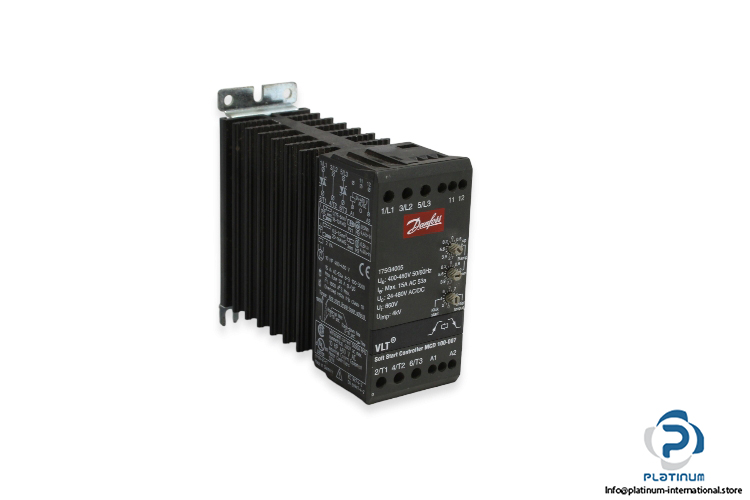

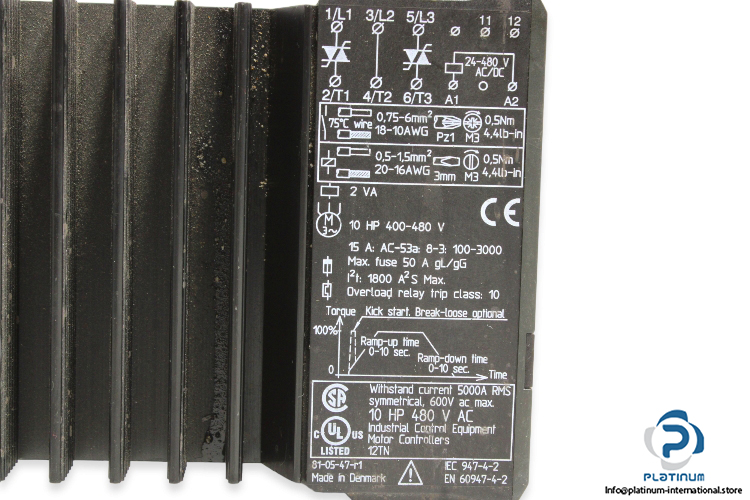

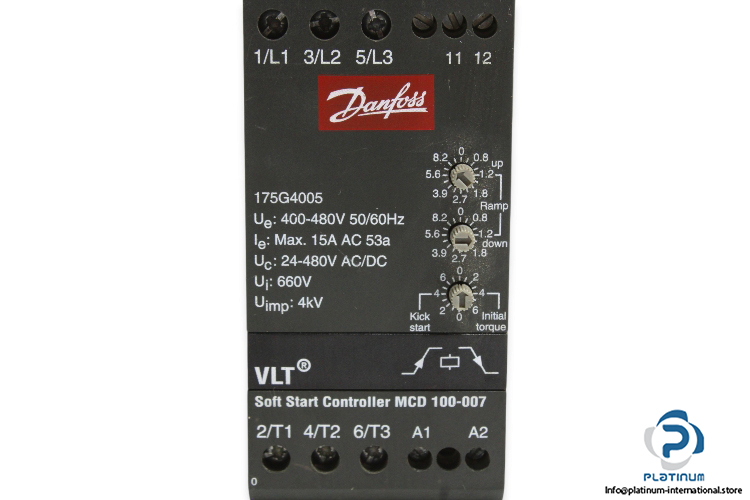

Danfoss MCD 100-007 Soft Start Controller

Manufacturer: Danfoss

Type: Soft Start Controller

Model: MCD 100-007

Part no.: 175G4005



Voltage: 400 … 480 V

Current (max): 15 A

Power (max): 7.5 Kw (10 HP)

Control voltage range: 24 … 480 V AC/DC

Rated insulation Voltage: 660 V

Rated impulse withstand Voltage: 4 kV

Ramp-up, down time: Adjust from 0 … 10 sec

Initial torque: Adjust from 0 … 85%

Ratings: 15 A: AC-53a: 8-3 :100 – 3000

Ambient temperature: -5 … 40°C

Protection degree: IP20

Dimensions: 45 x 128.1 x 110 mm
