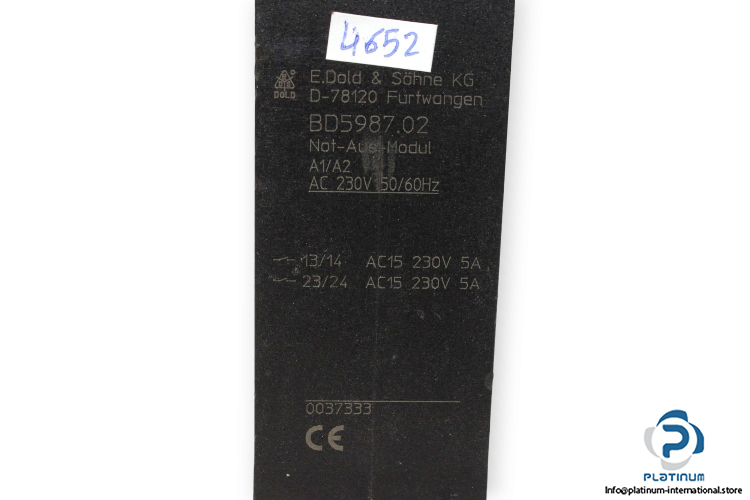

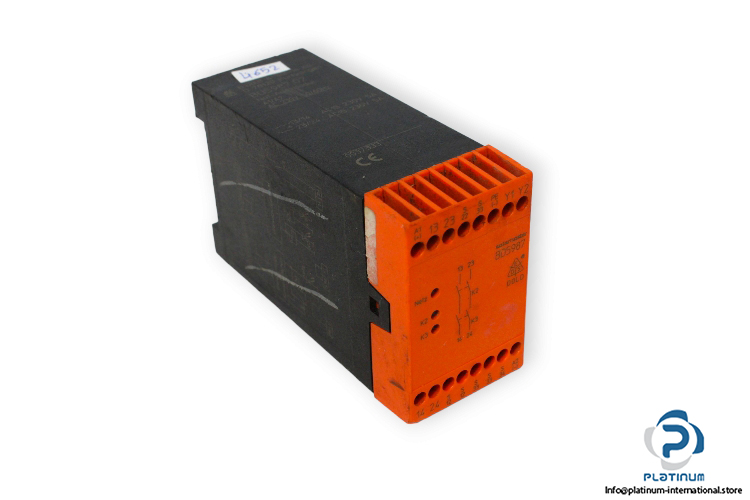

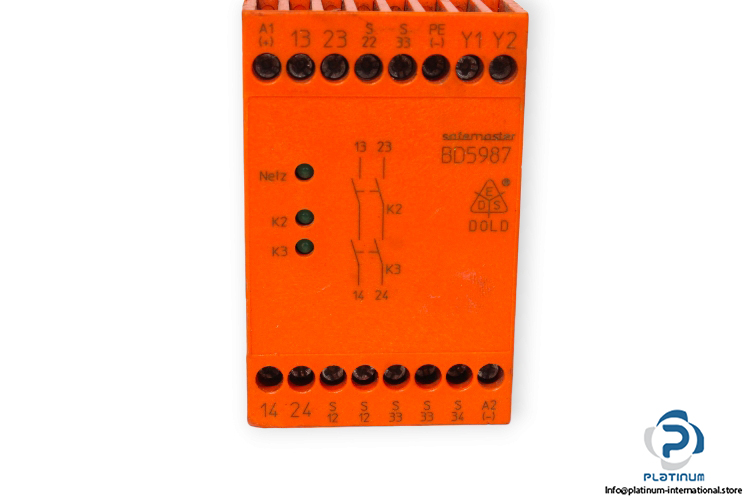

Dold BD5987.02 Emergency Stop Module

Manufacture: Dold
Type: Emergency Stop Module
Model: BD598702
Art. No.: 0037333

Nominal voltage UN: 230 V AC
Nominal frequency of UN: 50/60 Hz
Nominal consumption: Approx. 5.5 VA
Contact rating: 2 NO
Switching capacity AC-15: 230 V AC,5 A
Operation temperature: -15 … 55°C
Degree of protection: Housing: IP 40, Terminals: IP 20
Housing: Thermoplastic with V0 behavior
Mounting: DIN rail
Dimensions: 45 x 74 x 121 mm
