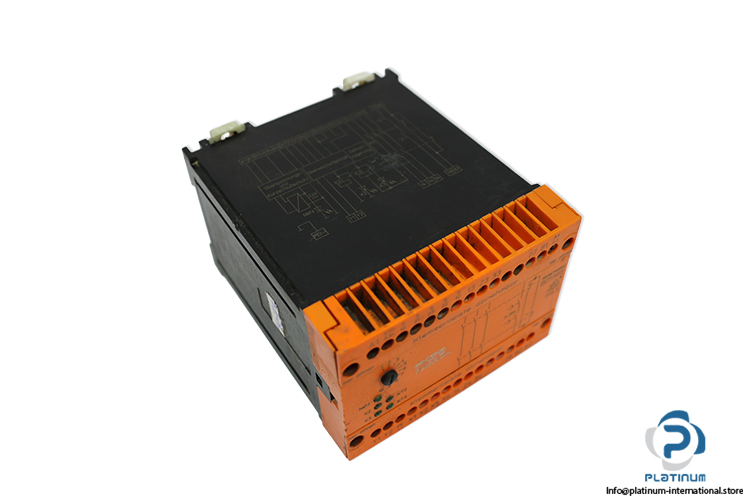

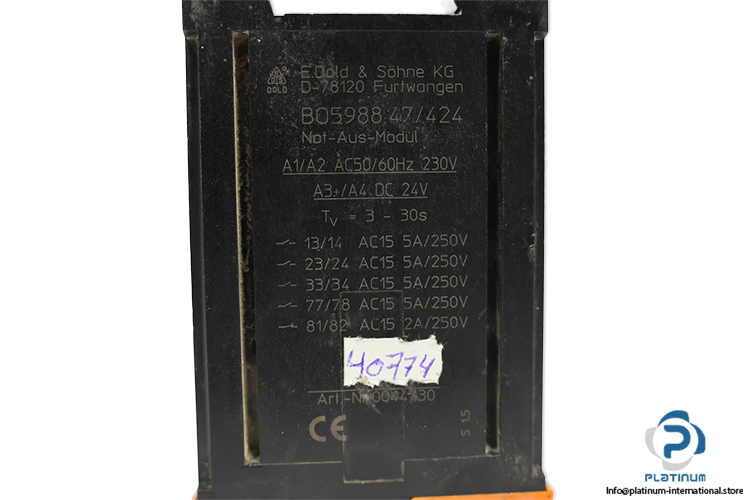

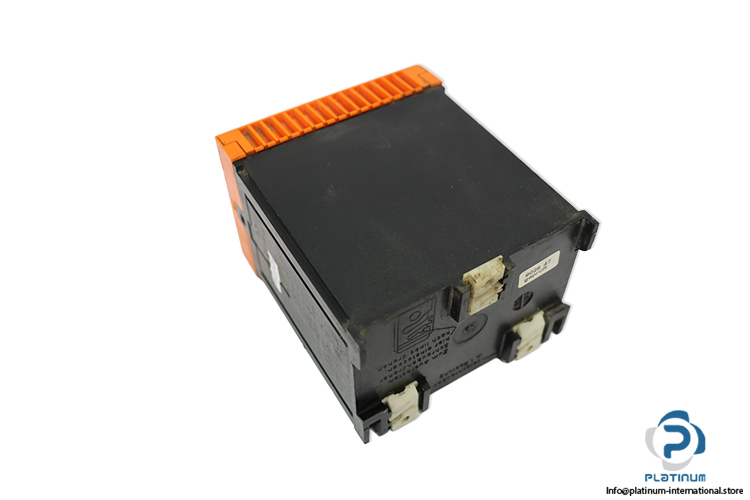

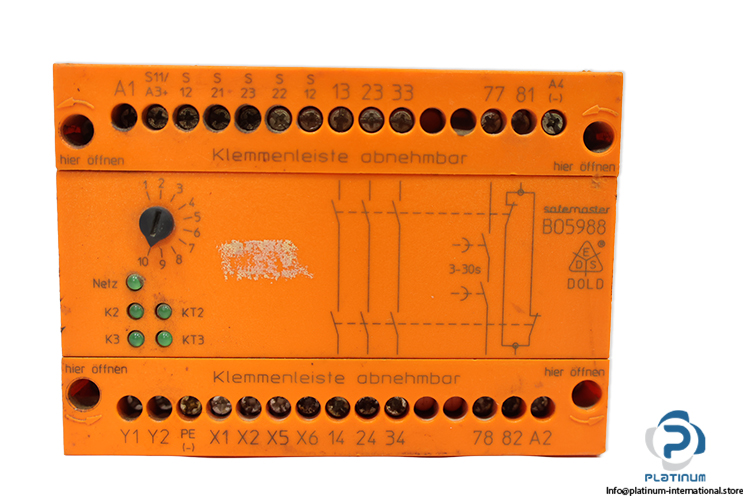

Dold BO 5988.47/424 Safety AND Emergency Stop Module
Utilisé
En stock3 unitésPrêt à être expédié
Safety And Emergency Stop Module The DOLD BO5988.47/424 is an electromechanical safety module featuring a 3–30 s adjustable time delay and 4 NO safety contacts for industrial emergency stop and safety control applications.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
| Art. No. | 004430 |
| Voltage | 230 V AC / 24 V DC |
| Frequency | 50 … 60 Hz |
| Thermal Current | 10 A |
| Time Delay | 3 … 30 s |
| Safety Contact | 4 Normally Open (NO) |
| Auxiliary Contact | 1 Normally Closed (NC) |
| Contact Ratings | 250 V AC, 5/2 A |
| Material | Thermoplastic |
| Protection Class | Housing IP40 / Terminals IP20 |
| Operating Temperature | -15 … 50 °C |
| Dimensions | 100 x 74 x 127 mm |
| Stock Key | CON003 |
| Condition | Used |
| SKU | 1104284 |
| Weight | 0,76 |
