Dynapar H2200100320D3 Incremental Encoder
Utilisé
En stock3 unitésPrêt à être expédié
140,00$
L'encodeur incrémental Dynapar H2200100320D3 est un encodeur incrémental à montage servo avec 10 PPR, arbre de moyeu de 3/8 pouces, sortie à pilote de ligne différentiel et protection IP66. Convient aux applications 5“26 VDC.
107-Pin7272AutomationConnectorDynaparEncoderH2200100320D3HubIncrementalIndustrialIP66mountOutputPPRRatedServoshaft
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
DYNAPAR H2200100320D3 INCREMENTAL ENCODER

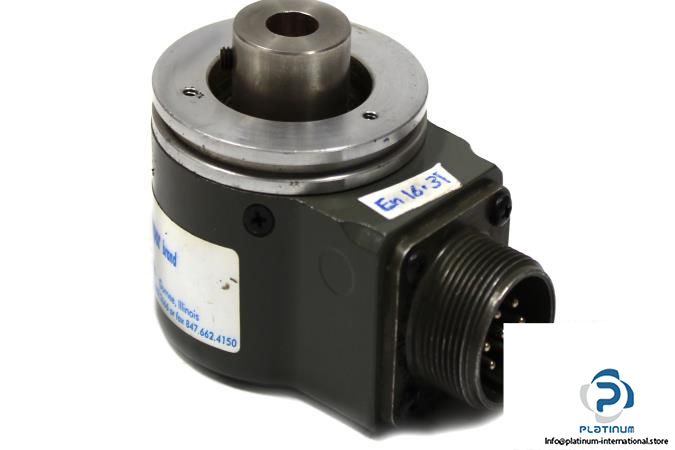

The Dynapar H2200100320D3 incremental encoder is engineered for precise positioning and motion feedback in industrial automation systems. Designed with rugged materials and a servo mount housing, this encoder ensures high durability and reliable signal output even in demanding environments.

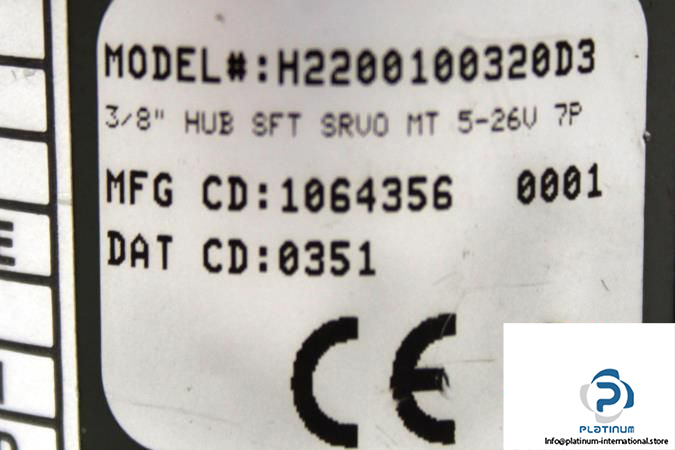

Manufacturer: DYNAPAR
Type: Incremental Encoder
Model: H2200100320D3
MFG CD: 1064356 0001
Code: 0351
Reference No.: 3/8 HUB SFT SRVO MT 5-26V 7P

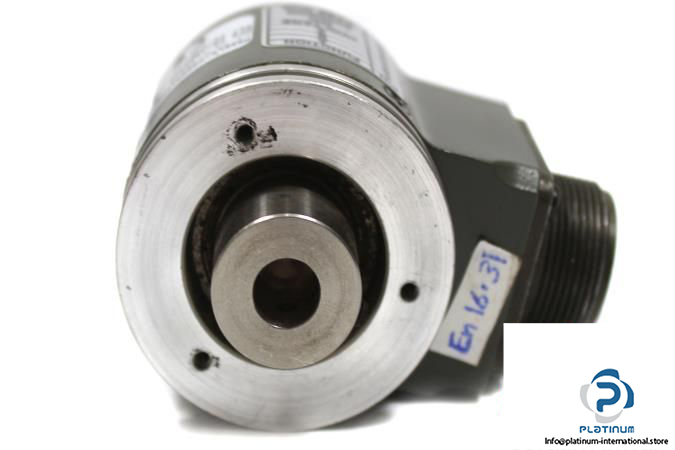

| Housing Type | Servo Mount |
| Shaft Type | Hub Shaft and Flex Coupling |
| Shaft Diameter | 3/8 IN |
| Resolution | 10 Pulses per Revolution (PPR) |
| Voltage Supply | 5 / 26 VDC |
| Housing and Cover | Aluminum |
| Shaft Material | Stainless Steel |
| Output Circuits | Differential Line Driver (7272) |

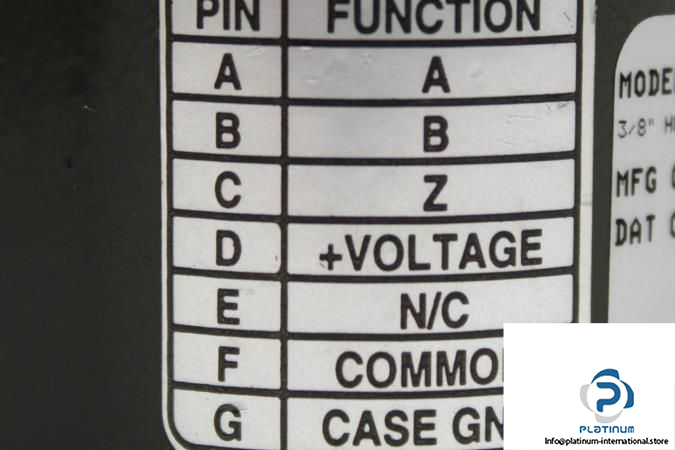

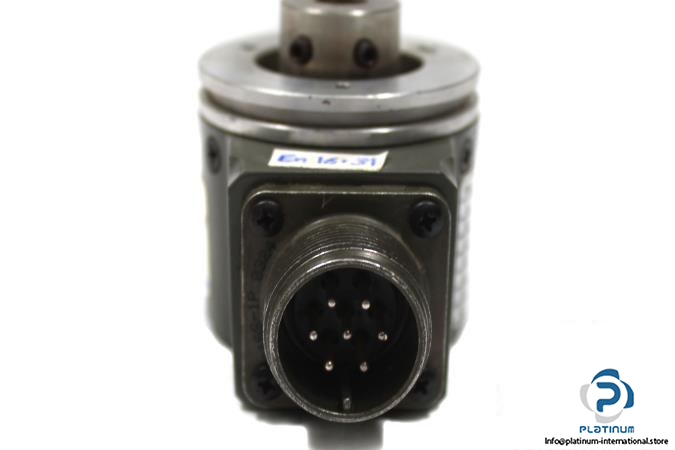

| Connection Type | 7-Pin Connector, Side Mount |
| Protection Class | IP66 |
| Temperature Range | 0 / 70°C (Standard) |
