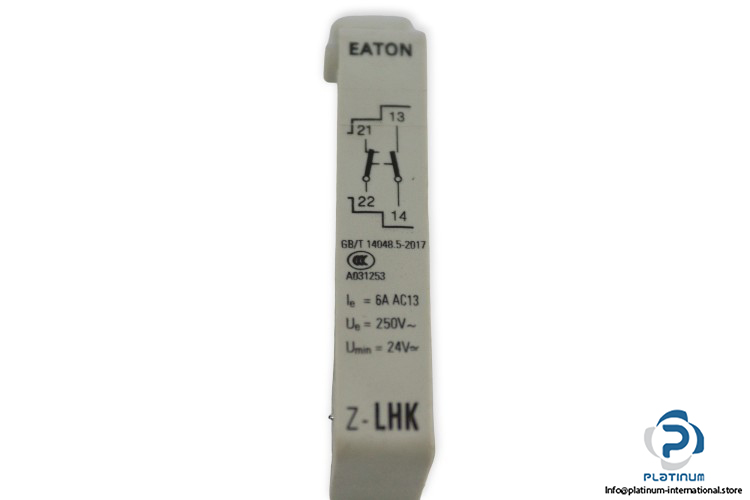

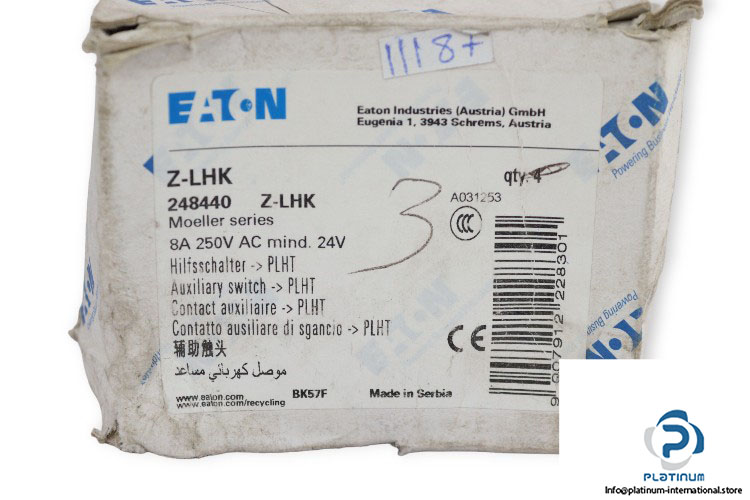

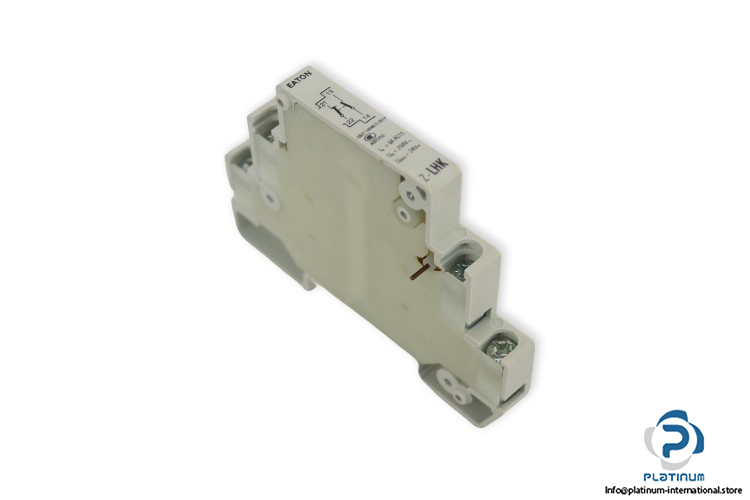

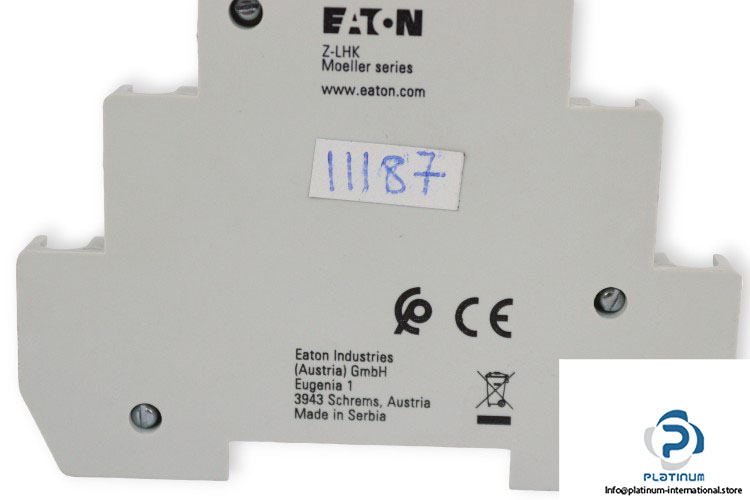

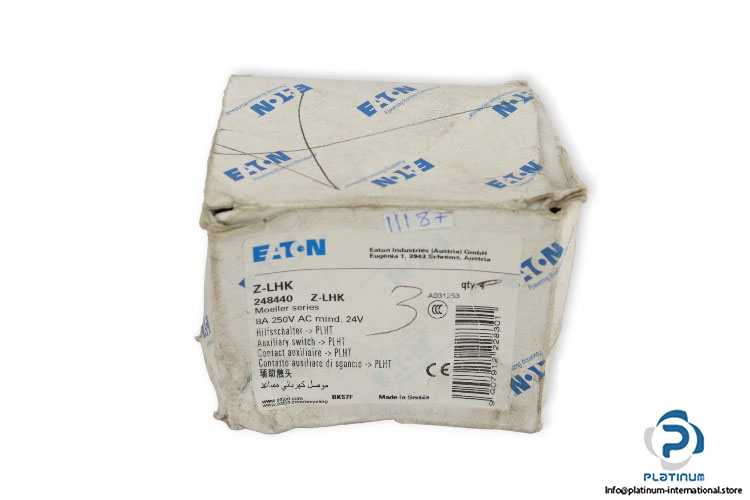

Eaton Z-LHK Auxiliary Contact Module

Manufacture: Eaton
Type: Auxiliary Contact Module
Model: ZLHK
Part No.: 248440

Application: Switchgear for industrial and advanced commercial applications
Rated operational voltage (Ue): 250 V AC
Rated switch current (Ie) AC-13: 6 A
Minimum voltage Umin: 24 V AC/DC
Suitable for max. current main contact unit: 8 A
No. of contacts (normally closed contacts): 1
No. of contacts (normally open contacts): 1
Suitable for max. number of poles main contact unit (total): 2
Ambient operating temperature: -5 … 40°C
Dimensions: 80 x 75 x 8.8 mm
