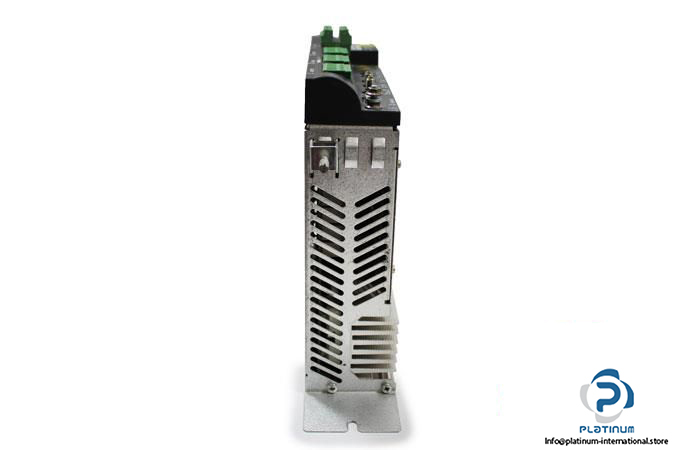

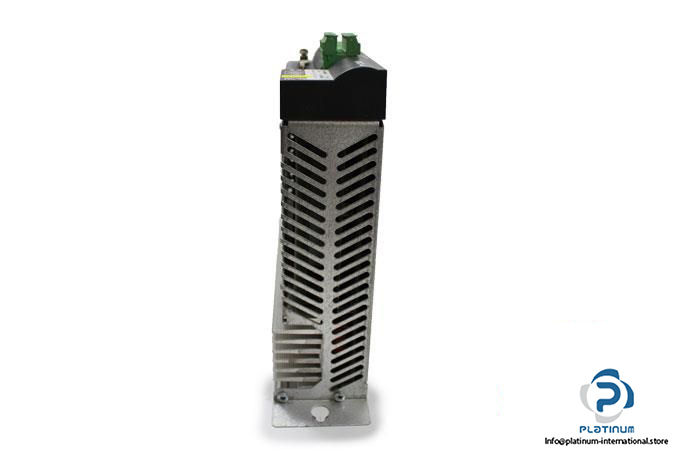

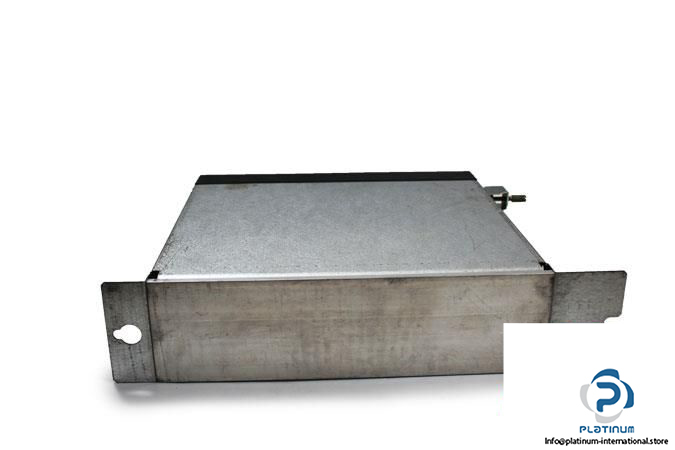

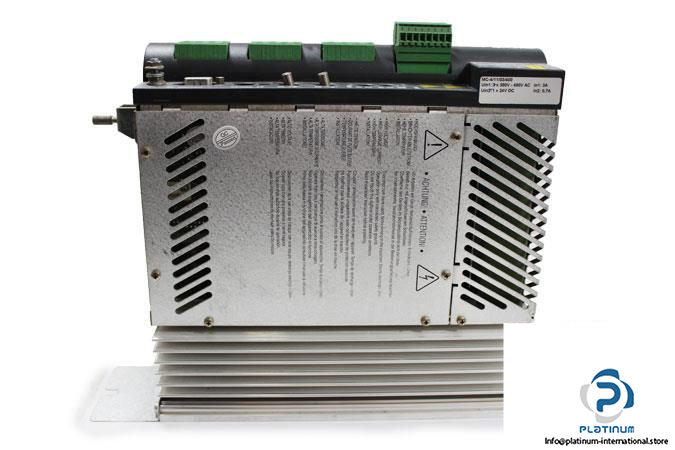

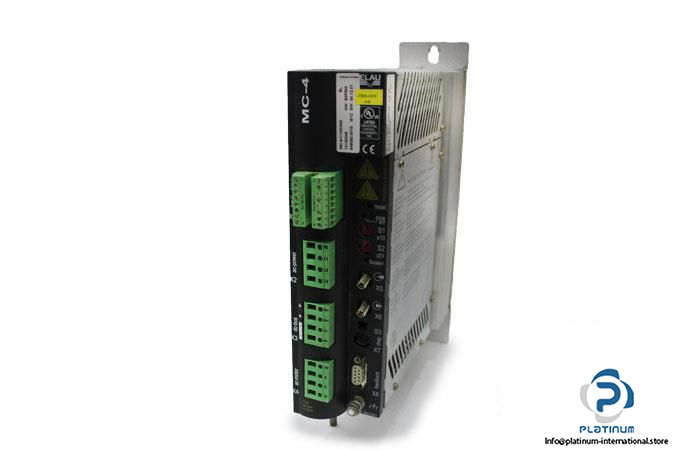

Elau MC-4 /11/03/400 Servo Drive
Manufacturer: Elau Schneider Electric
Type: Servo Drive

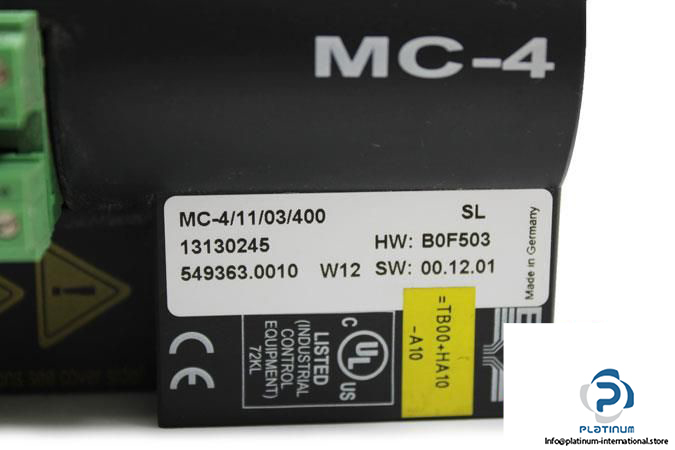

Model: MC-4 / 11 / 03 / 400
MRN: VDM01U30AQ00
Order No.: 13 13 02 45
Input 1
Voltage Rating: 3 Phase 380…480 V AC
Current: 3.2 A
Frequency: 48…62 Hz
Input 2
Voltage: 24 VDC
Current: 1 A
Output
Voltage Rating: 3 Phase 0…480 V AC
Current: 3 A
Frequency: 0…600 Hz
Peak Power: 5 kW
Ambient Temperature: 5…45 °C
Dimensions: 240 X 66 X 230 mm
Weight: 3.1 Kg
