Embraco EMT6152GK Compressor
Compresseur monophasé Embraco pour réfrigérant R-404A, offrant une performance de 1/4 Hp, fonctionnement en 220-240 V, optimisé pour des applications de refroidissement basse à moyenne température avec une haute efficacité et une fiabilité thermique.
EMBRACO EMT6152GK COMPRESSOR
The EMT6152GK compressor by Embraco is a reliable single-phase refrigeration component, engineered for optimal thermal performance in low to medium temperature commercial applications. Designed for use with R-404A refrigerant, it supports a wide evaporating temperature range and offers dependable operation under varying load conditions.

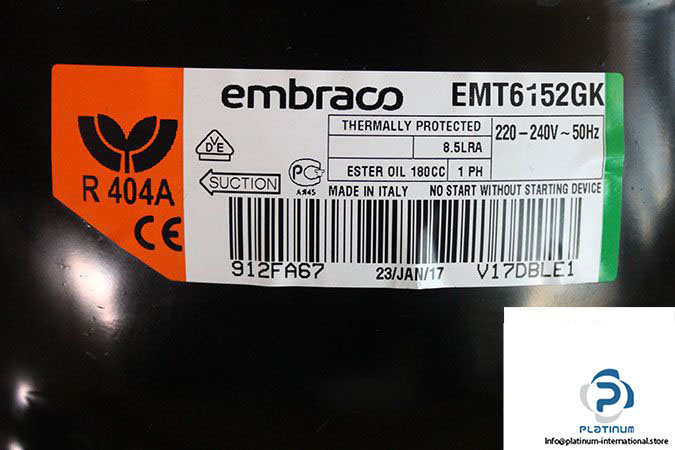

Manufacturer: Embraco
Type: Compressor
Model: EMT6152GK
Part No.: V17DBLE1
Engineering Nr.: 912FA67
Phase: 1~ Single Phase
| Horsepower | 1/4 Hp |
| Rated Voltage | 220 to 240 V |
| Displacement | 4.5 cm³ |
| Bore | 21.0 mm |
| Stroke | 13 mm |
| Nitrogen Charge | 0.2 to 0.3 kgf/cm² |
| Max Condensing Pressures (Operating) | 25.7 kgf/cm² |
| Max Condensing Pressures (Peak) | 28.7 kgf/cm² |
| Evaporating Temperature Range | -20°C to 10°C |
| Maximum Winding Temperature | 130°C |
| Frequency | 50 Hz |
| Refrigerant | R-404A |
| Lubricant Charge | 180 ml |
| Lubricant Type/Viscosity | ESTER / ISO22 |
