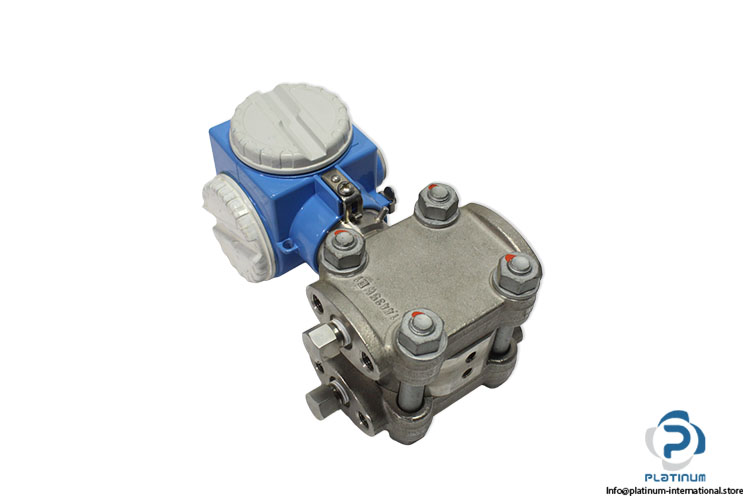

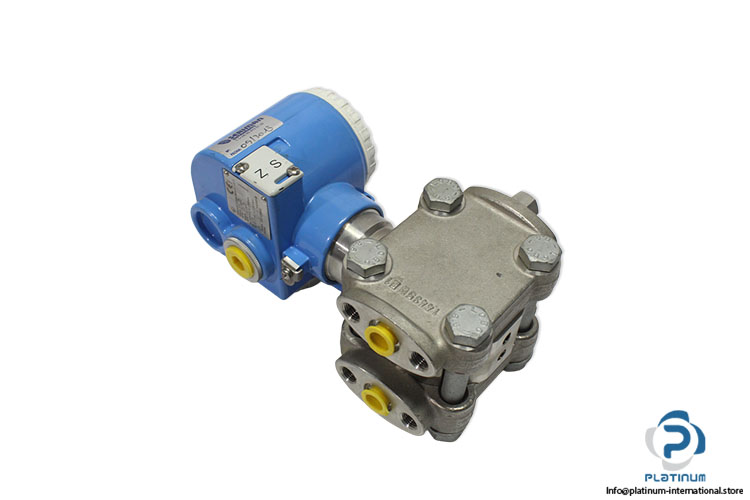

Endress+Hauser PMD235-6U4C9EM1D Pressure transmitter
Nouveau
En stock1 unitéPrêt à être expédié
555,55$
ENDRESS+HAUSER DELTABAR PMD235 Differential Pressure Transmitter The ENDRESS+HAUSER Deltabar PMD235 is a high-accuracy differential pressure transmitter designed for demanding industrial process measurement applications. Featuring 4–20 mA HART output, 160 bar maximum working pressure, hazardous area approvals, and support for PROFIBUS PA and FOUNDATION Fieldbus communication.
Differential Pressure Range:
Minus 40 To 40 mbar
Maximum Working Pressure:
160 bar
Supply Voltage:
30 V DC
Output Signal:
4 To 20 mA HART
Housing Material:
316L, Die-Cast Aluminum
Communication:
HART, PROFIBUS PA, FOUNDATION Fieldbus
Certification:
ATEX Approved
0.2AccuracyAlloyANDApplicationsC276ConstructionDeltabardemandingdifferentialEndressforHartHauserIndustrialInstrumentationIP66PRPressureProcessProtectionSensorsTransmitter
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

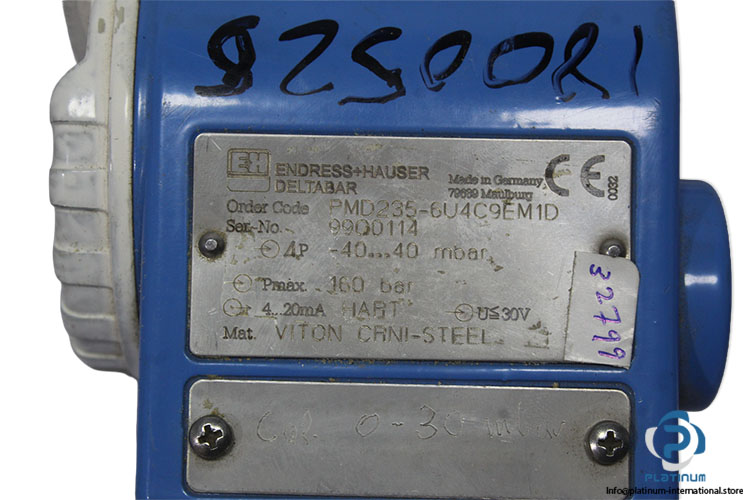

| Order Code | PMD235-6U4C9EM1D |
| Series | Deltabar |
| Serial Number | 9900114 |

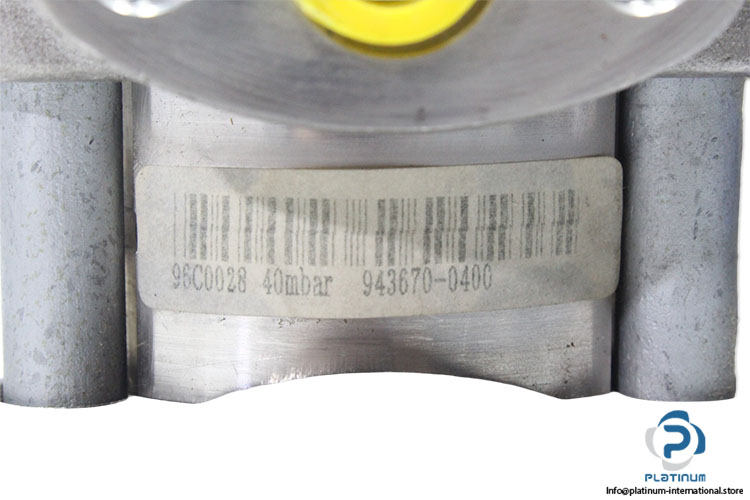

| Ref No | 943670-0400 |
| Code | 96C0028 |
| Differential Pressure Range | minus 40 to 40 mbar |
| Maximum Working Pressure | 160 bar |
| Supply Voltage | 30 V DC |
| Electrical Limits | i 300mA, and P 1W |

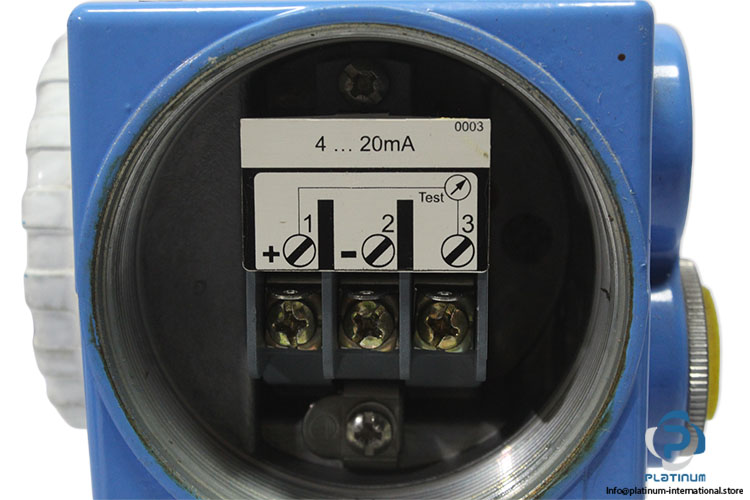

| Output Signal | 4 to 20 mA HART |
| Maximum Internal Capacitance | 11.2 Nf |
| Maximum Internal Inductance | 0.2 mH |
| Material housing | 316L, Die-cast aluminum |
| Process temperature | -40°C...85°C |
| Ambient temperature | -50°C...85°C |
| Measuring cell | 10 mbar...250 bar |
| Process connection | 1/4-18NPT/RC1/4 |
| Communication | 4...20 mA HART,PROFIBUS PA,FOUNDATION Fieldbus |

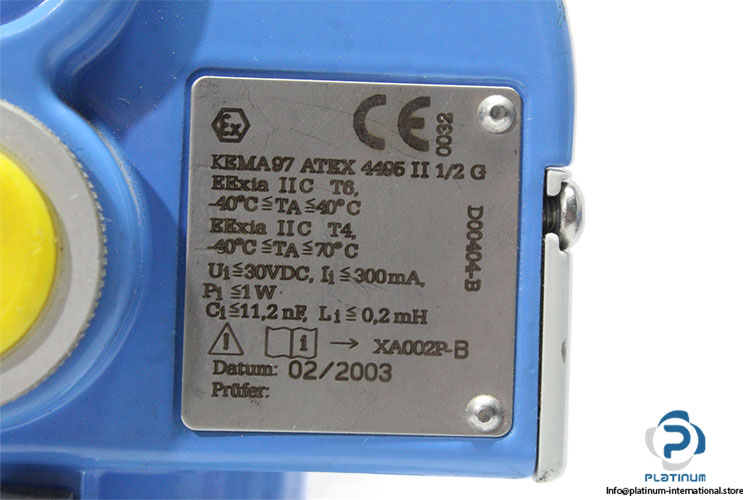

| Certificates / Approvals | KEMA97 ATEX 4496 II 1/2 G0032,EExia IIC T6. |
| Stock Key | CON-003 |
| Condition | New |
| SKU | 1099043 |
| Weight | 4,9 |
