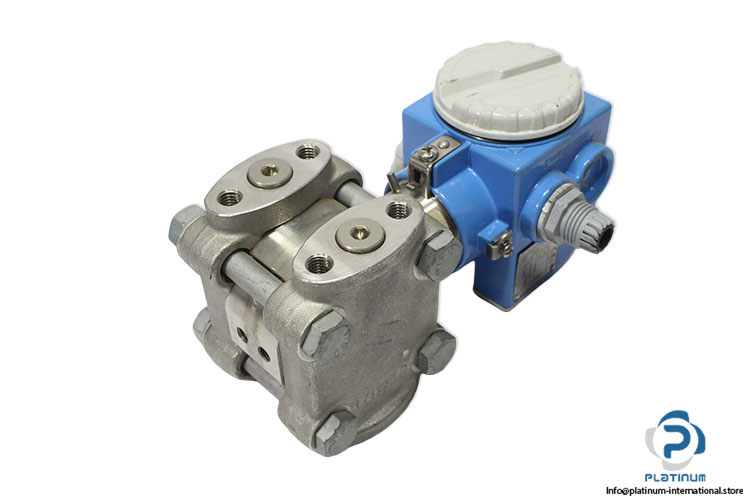

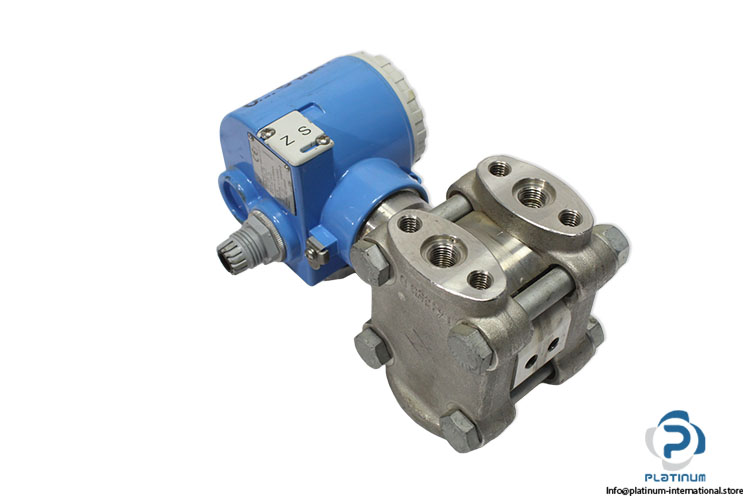

Endress+Hauser PMD235-AH4K1ED1C Pressure transmitter
Nouveau
En stock1 unitéPrêt à être expédié
555,55$
ENDRESS+HAUSER DELTABAR PMD235 DIFFERENTIAL PRESSURE TRANSMITTER The ENDRESS+HAUSER Deltabar PMD235 is a high-accuracy differential pressure transmitter designed for industrial process measurement, pressure monitoring, and automation applications. Featuring up to 140 bar working pressure, advanced fieldbus communication, and ATEX-certified safety for hazardous environments.
Calibration Range:
0 To 6 BAR
Working Pressure:
140 Bar
Supply Voltage:
11.5 … 45VDC
Communication:
4…20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus
Process Connection:
1/4-18NPT/RC1/4
Certification:
KEMA97 ATEX 4496
0.2AccuracyAlloyANDApplicationsC276ConstructionDeltabardemandingdifferentialEndressforHartHauserIndustrialInstrumentationIP66PRPressureProcessProtectionSensorsTransmitter
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

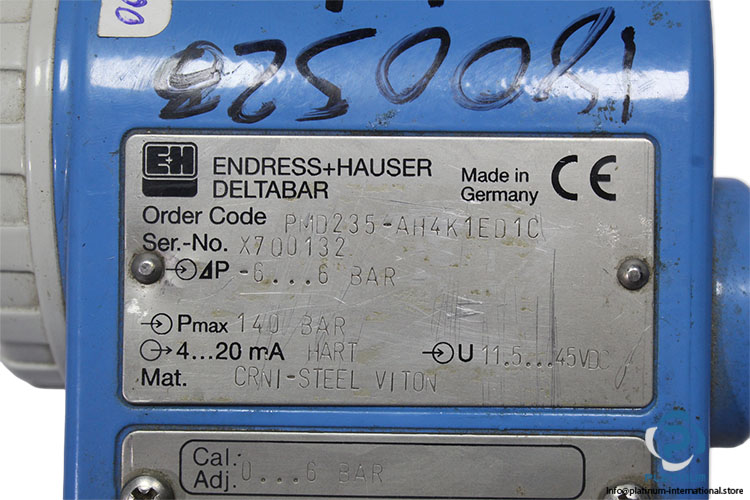

| Order Code | PMD235-AH4K1ED1C |
| Series | Deltabar |
| Serial Number | X700132 |
| Ref code | D00404-B/XA002P-B |
| Calibration Range | 0 to 6 BAR |
| Differential Pressure Range | minus 6 to 6 bar |
| Maximum Working Pressure | 140 bar |
| Supply Voltage | 11.5 ... 45VDC |
| Electrical Limits | i 300mA, and P 1W |
| Maximum Internal Capacitance | 11.2 Nf |
| Maximum Internal Inductance | 0.2 mH |
| Material housing | CRNI-STEEL VITON |
| Process temperature | -40°C...85°C |
| Ambient temperature | -50°C...85°C |
| Measuring cell | 10 mbar...250 bar |
| Process connection | 1/4-18NPT/RC1/4 |

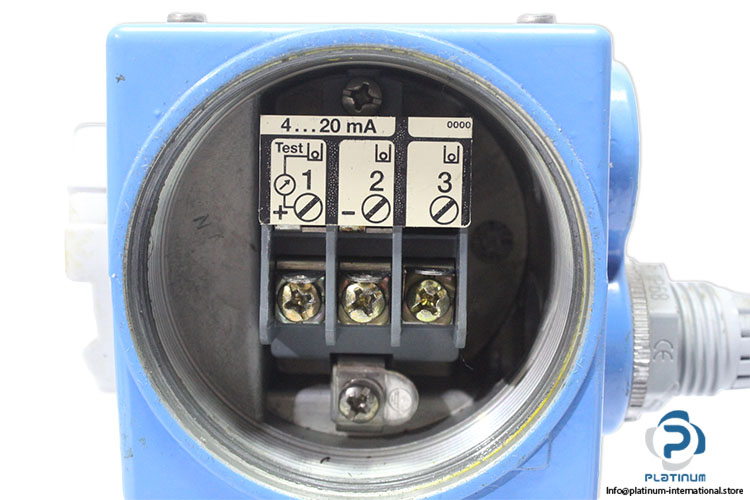

| Communication | 4...20 mA HART,PROFIBUS PA,FOUNDATION Fieldbus |

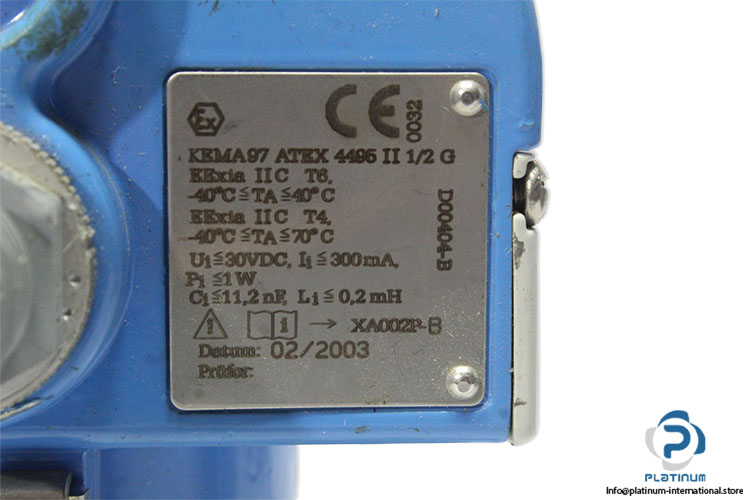

| Certificates / Approvals | KEMA97 ATEX 4496 II 1/2 G,EExia IIC T6. |
| Stock Key | CON-003 |
| Condition | New |
| SKU | 1099044 |
| Weight | 4,9 |
