Endress+Hauser Soliphant II FTM 31-A4BA1A 1900 MM Vibration Level Limit Switch
Interrupteur de niveau de vibration L'Endress+Hauser SOLIPHANT II FTM 31-A4BA1A est un interrupteur de niveau robuste avec un tube capteur de 1900 mm et une protection IP66, idéal pour les applications de silos. Comprend un insert électronique FEM34 pour un fonctionnement fiable.

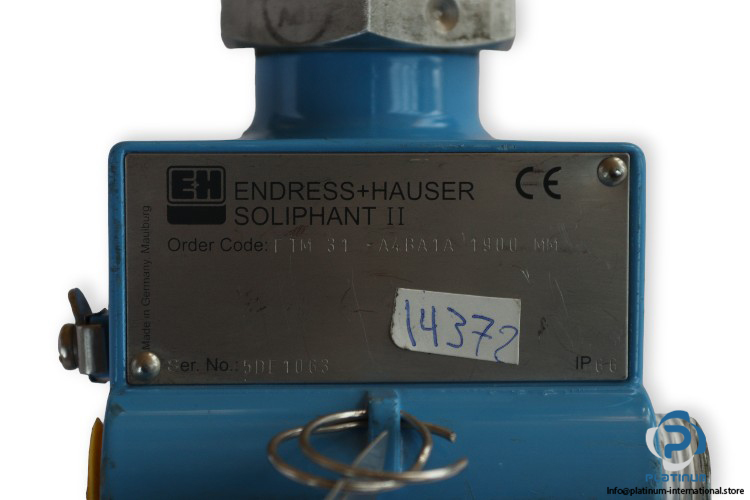

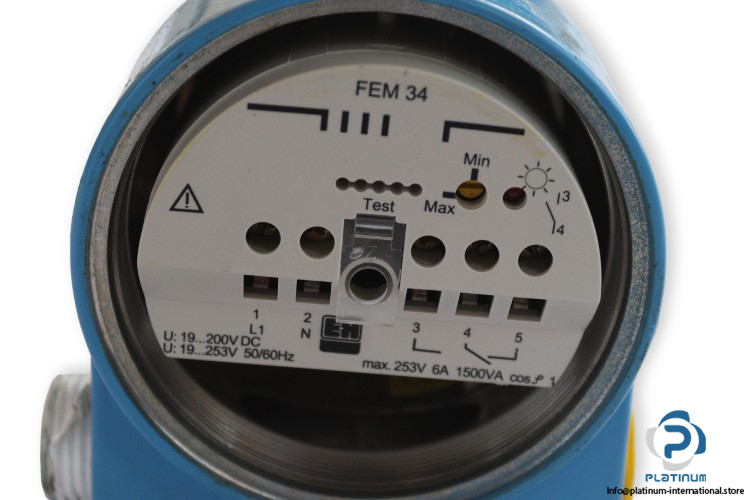

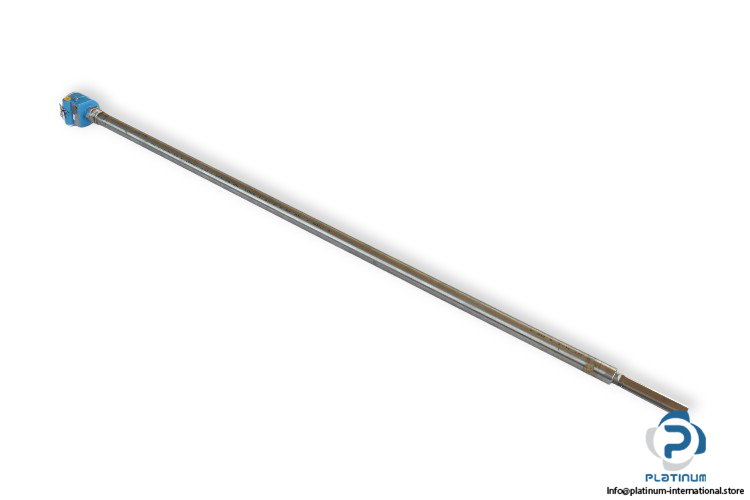

Endress+Hauser SOLIPHANT II FTM 31-A4BA1A 1900 mm Vibration Level Limit Switch with FEM34 Electronic Insert
The Endress+Hauser SOLIPHANT II FTM 31-A4BA1A is a rugged vibration level limit switch designed for precise level detection in silos containing powdered or fine-grained solids, including those with very low bulk densities. Supplied with the reliable FEM34 electronic insert, this unit ensures durability and consistent performance in industrial environments.
Manufacturer: ENDRESS+HAUSER
Type: Vibration Level Limit Switch
Model: SOLIPHANT II FTM 31-A4BA1A 1900 MM
Attachment “ Electronic Insert
| Series | FTM 31 |
| Description | Rugged limit switch for silos with powdered or fine-grained solids, even with very low bulk densities |
| Process Pressure | 1 / 16 bar |
| Material | Aluminium |
| Protection Class | IP66 |

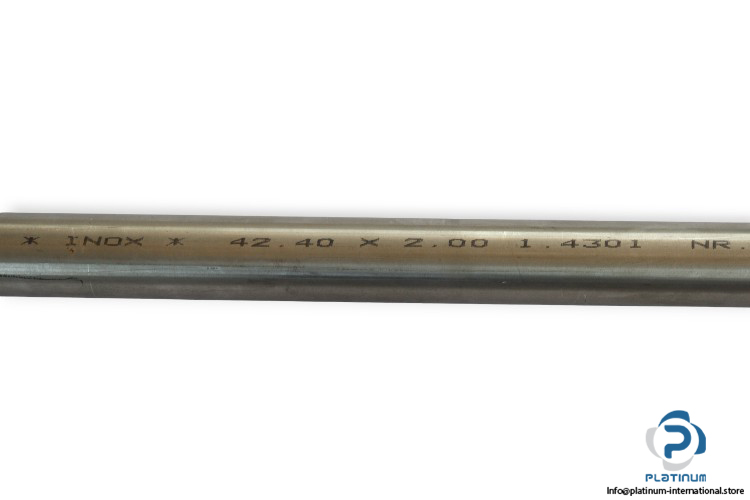

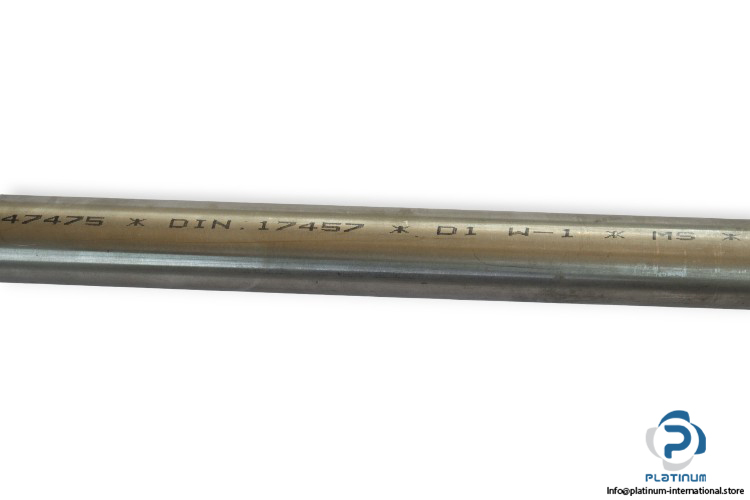

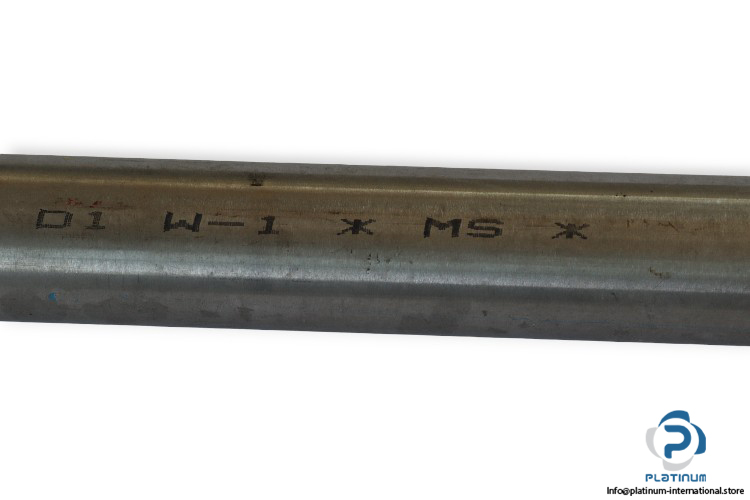

| Sensor Tube Length | 1900 mm |

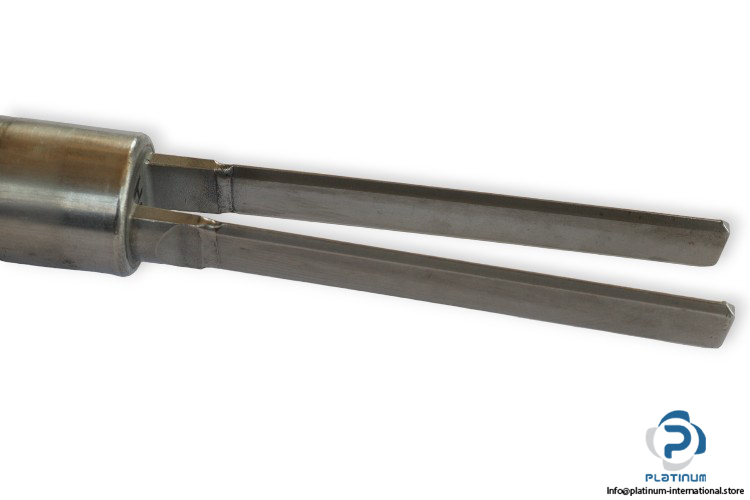

| Sensor Fork Length | 170 mm |
| Ambient Temperature | -40 / 70 °C |
| Length, Diameter | 2308 mm, 104 mm |
| Rated Voltage | 19 / 253 V AC / 19 / 200 V DC |
| Frequency | 50 / 60 Hz |
| Current Consumption Max. | 350 mA |

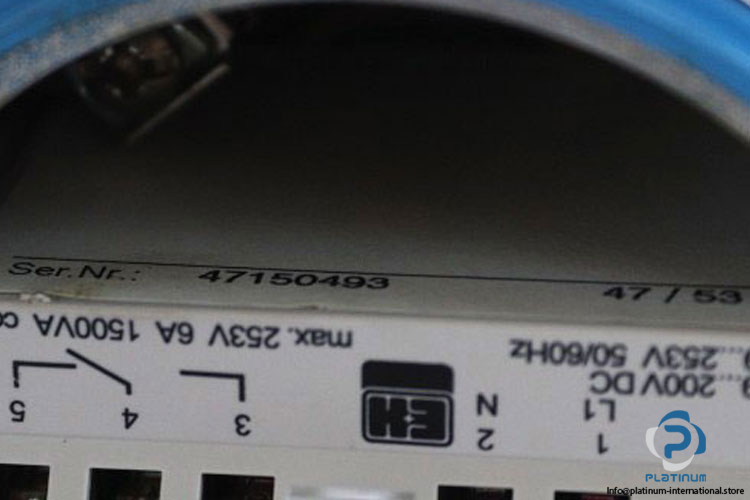

| Contact | SPDT 1 Changeover (CO) |
| Contact Ratings | 253 V AC, 6A, 1500 VA |
