Eurotherm 6100XIO Paperless Graphic Recorder
999,99$
PAPERLESS GRAPHIC RECORDER
Eurotherm Chessell 6100XIO paperless graphic recorder with 100 mm TFT 1/4 VGA display, 19.2“28.8 V DC input, 20 W max, IP65 protection, Modbus Master/Slave, 96 MB memory, and 8 GB storage.Eurotherm Chessell 6100XIO Paperless Graphic Recorder

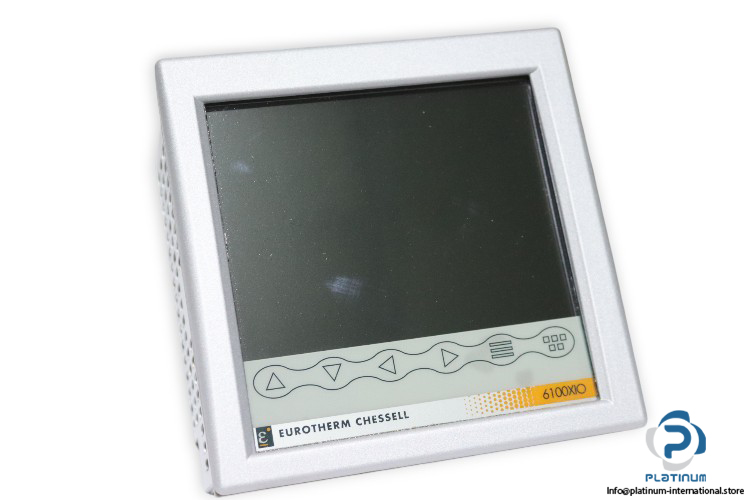

The Eurotherm Chessell 6100XIO by Schneider Electric is a high-performance paperless graphic recorder with a 100 mm TFT 1/4 VGA display. Built for industrial monitoring and data acquisition, it offers flexible communication, secure recording, and efficient process visualization in compliance with demanding standards.
Manufacturer: Eurotherm Chessell by Schneider Electric
Type: Paperless Graphic Recorder (100 mm TFT 1/4 VGA Display)

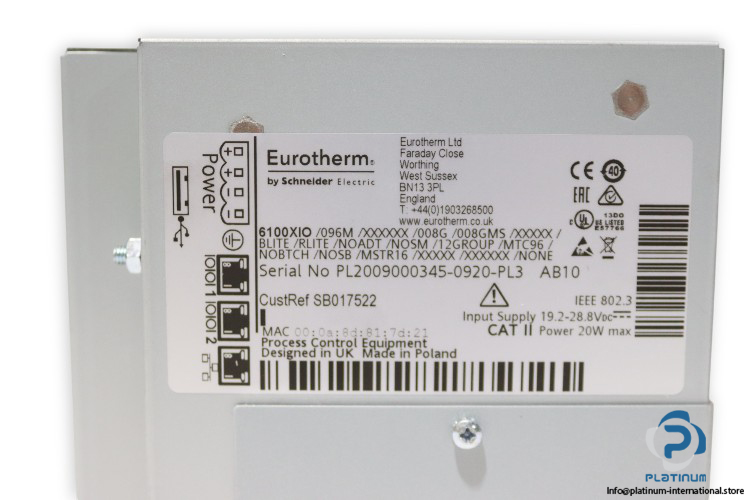

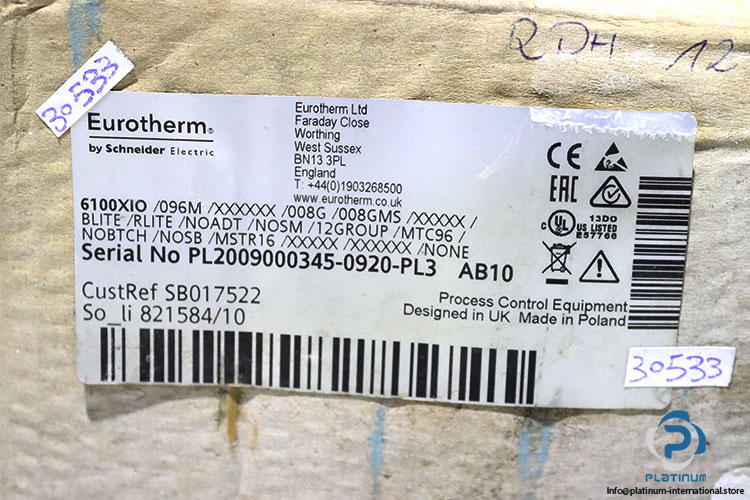

Model: 6100XIO/096M/XXXXXX/008G/008GMS/XXXXX/BLITE/RLITE/NOADT/NOSM/12GROUP/MTC96/NOBTCH/NOSB/MSTR16/XXXXX/XXXXXX/NONE
Serial No.: PL2009000345-0920-PL3 AB10
Cust Ref: SB017522
So_li: 821584/10
Code: AB10
MAC: 00:0a:8d:81:7d:21
| Input Supply | 19.2 to 28.8 V DC |
| Power | 20 W max |
| Graphic Display | 5.5 inch |
| Protection | IP65 |
| Modbus | Master/Slave |
| Recording Speed | 8 Hz |
| Network Addressing | DHCP, Boot P, Fixed IP |
| Inrush Current | 10 A max |

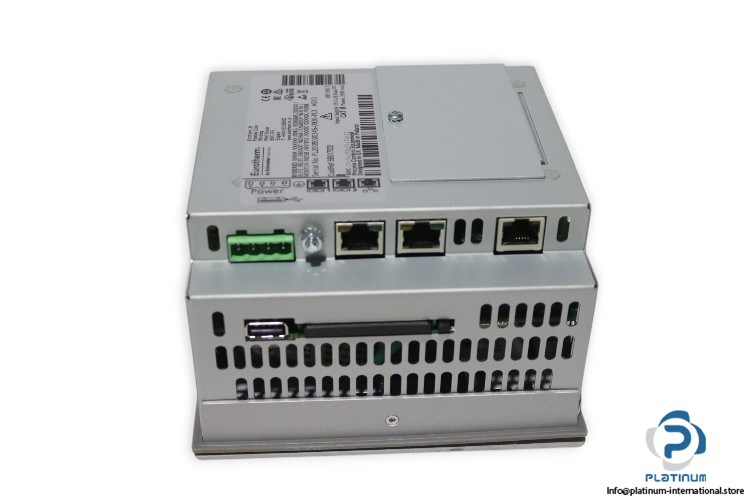

| User Termination | 4-way connector |
| Operating Current (at 24 V) | Small frame = 0.8 A; Large frame = 1 A |
| Ripple | 1 V max |
| Operating Temperature | 0 to 50 °C |
| Internal Memory | 096M (96 MB for history) |
| Memory Card Size | 008G (8 GB CF Card) |
| USB Memory Stick Size | 008GMS (8 GB USB Memory Stick) |
| Warranty | Standard Warranty |
| Bridge | BLITE (Bridge Lite, standard) |
| Review and Quick Chart | RLITE (standard) |
| Auditor | NOADT (None) |
| Security Manager | NOSM (None) |
| Groups | 12GROUP (12 groups) |
| Maths, Totalisers and Counters | MTC96 (96 virtual channels) |
| Batch | NOBATCH (None) |
| Screen Builder | NOSB (None) |
| Master Comms | MSTR16 (Modbus Master Comms for 16 Slaves, standard) |
