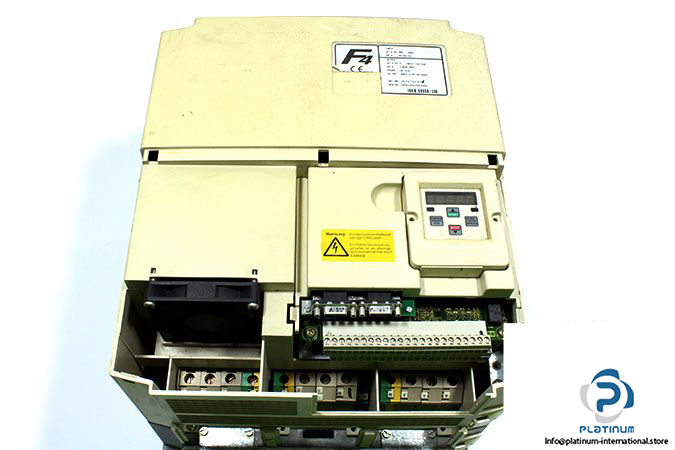

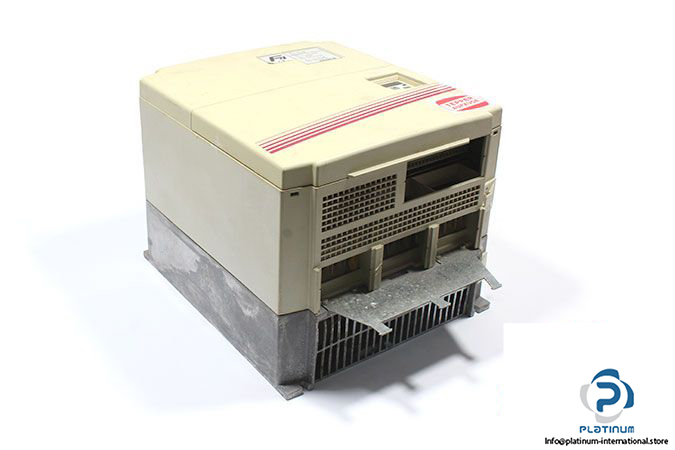

F4 19.F4.F1H-4I08 Inverter

Manufacturer: F4 Karl E.Brinkmann / KEB

Type: Inverter

Model: 19.F4.F1H-4I08

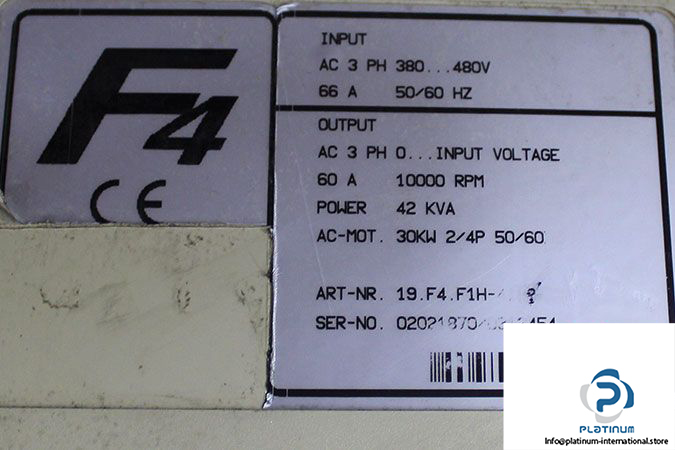

Input

Voltage: 3 Phase 380…480 V AC

Frequency: 50/60 Hz

Rated Current: 66 A

Output

Voltage: 3 Phase 380…480 V AC

Rated Current: 60 A

Power: 30 kW (42 kVA)

Speed Motor: 10000 RPM

AC Motor: 30KW 2/4P 50/60 Hz

Dimensions: 340 X 290 X 250 mm

Weight: 17.20 Kg
