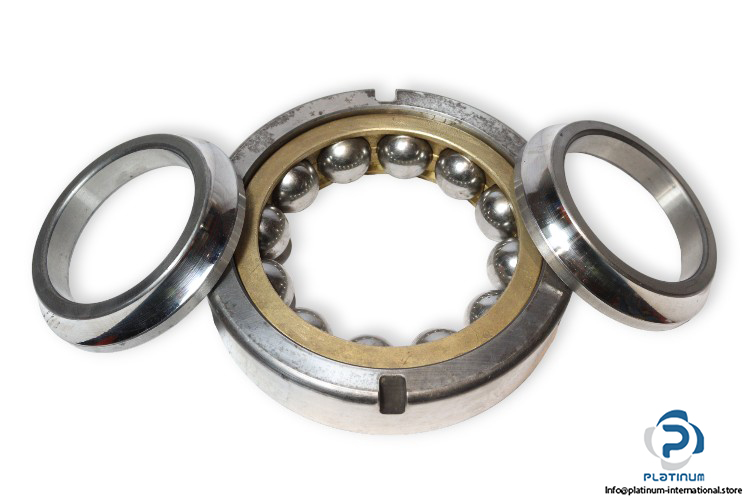

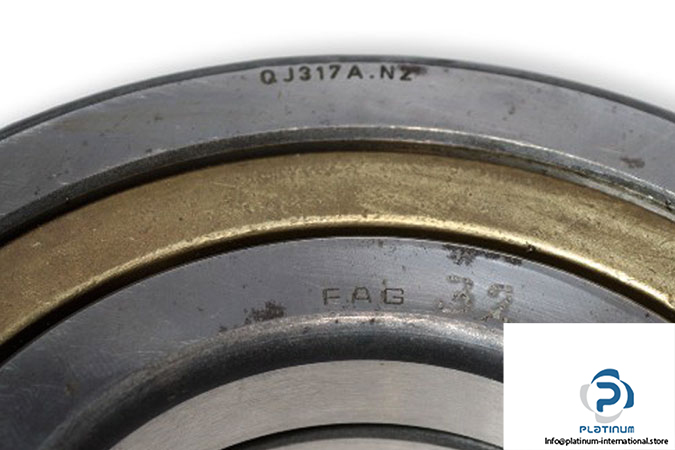

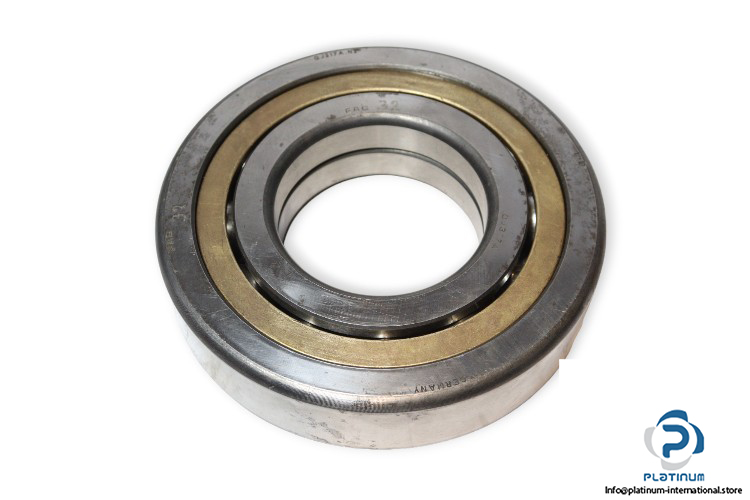

FAG QJ317A.N2 Four-Point Contact Ball Bearing
Utilisé
Manufacturer: FAG
Type: Four-point contact bearing
Model: QJ 317 A N2
Dimensions
Bore Diameter d: 85 mm
Outer Diameter D: 180 mm
Width B: 41 mm
Basic load ratings:
Dynamic C: 248 kN
Static C0: 255 kN
Fatigue load limit: 12800 N
Limiting speed: 6600 rpm
Reference speed: 3550 rpm
Design, bearing outer ring: N2, two retaining grooves in the outer ring on one side
Cage: solid brass cage
