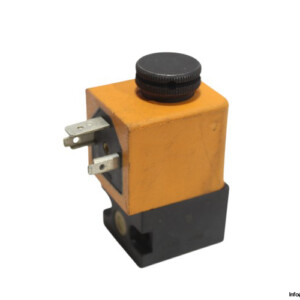

Festo 119600 Pilot Valve
Nouveau
En stock1 unitéPrêt à être expédié
Pilot Valve
The Festo MDH-3/2-24V DC Pilot Valve features a 3/2 valve function with electrical actuation, 50 l/min flow rate, and 24 V DC voltage, designed for precise control in industrial automation systems.
Utilisé
En stock
Ce produit est également disponible en occasion
Voir la version utilisée →
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

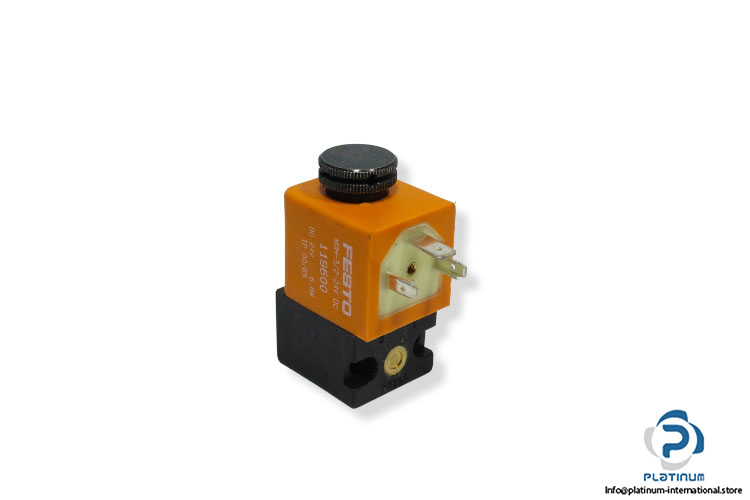

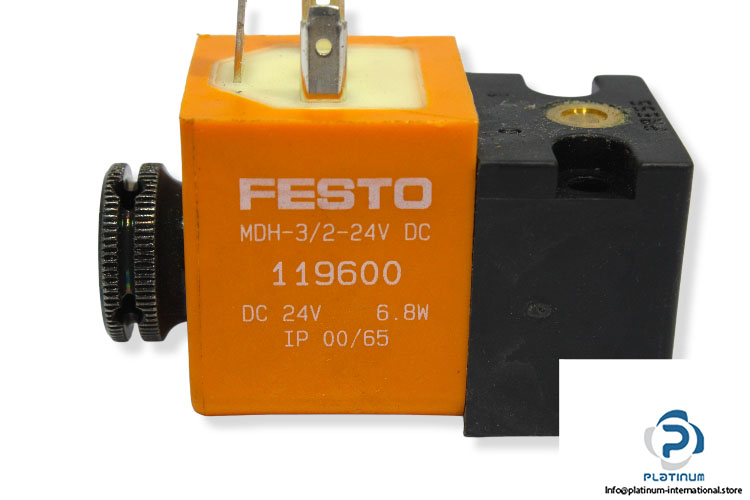

Festo MDH-3/2-24V DC Pilot Valve
The Festo MDH-3/2-24V DC Pilot Valve is a high-performance valve designed for precise control in industrial automation systems. With a 3/2 valve function and electrical actuation, it provides efficient operation with a nominal flow rate of 50 l/min. The valve is designed to operate with a 24 V DC voltage and is built to withstand challenging environmental conditions.
Manufacturer: FESTO
Type: Pilot Valve
Model: MDH-3/2-24V DC
Part No.: 119600
Technical Data:
- Valve Function: 3/2, closed, monostable
- Standard Nominal Flow Rate: 50 l/min
- Pneumatic Connection: Sub-base
- Actuation Type: Electrical
- Voltage: 24 V DC
- Power: 6.8 W
- Duty Cycle: 100 %
- Electrical Connection: 3-pin “ as per DIN EN 175301-803 form A
- Plug Design: Conical
- Inner Diameter: 8 mm “ 9 mm
- Length: 29.5 mm
- Ambient Temperature: -15°C / 50°C
- Protection Class: IP00/65
