Festo 163334 ISO Cylinder
Utilisé
En stock1 unitéPrêt à être expédié
Cylindre ISO FESTO DNC-40-420-PPV-A-KP cylindre pneumatique ISO double effet avec un diamètre de piston de 40 mm et une course de 420 mm, équipé d'une butée pneumatique réglable et d'un corps profilé en aluminium anodisé.
4“2040ActingActuatorAutomationCylinderDNCDNC-40-420-PPV-A-KPDoubleFestoIndustrialISOmmPistonPneumaticSeriesStroke
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

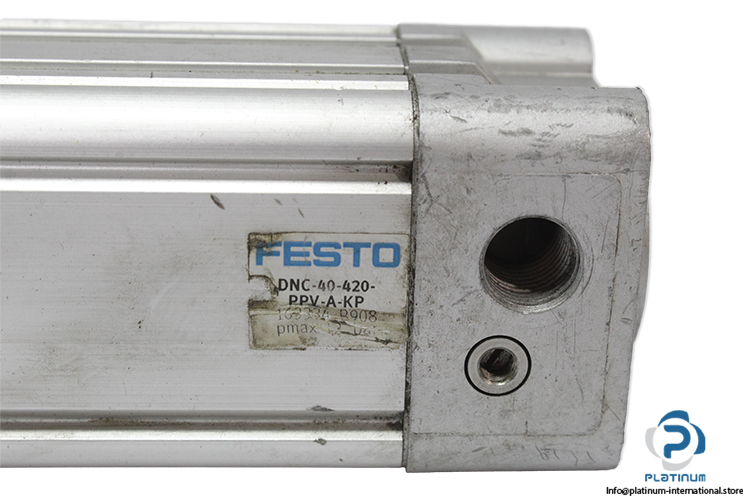

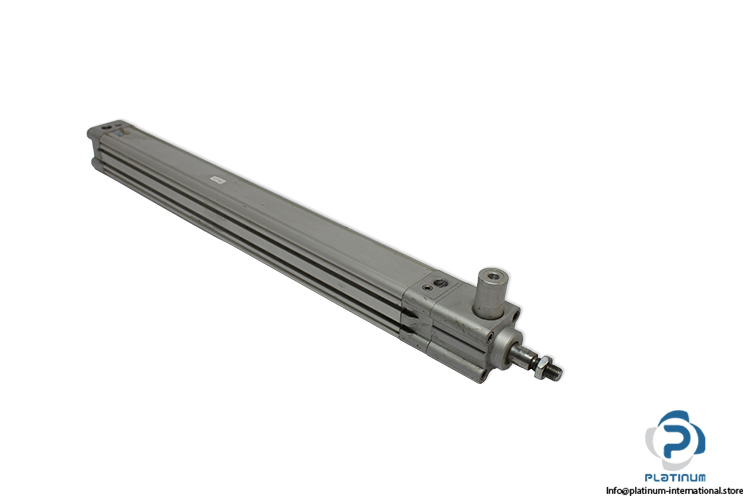

FESTO DNC-40-420-PPV-A-KP ISO Cylinder
The FESTO DNC-40-420-PPV-A-KP is an ISO standard pneumatic cylinder designed for reliable linear motion in industrial automation systems. Built with a durable anodised aluminium profile barrel and adjustable pneumatic cushioning, this double-acting cylinder ensures smooth operation and precise control in demanding pneumatic applications.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DNC-40-420-PPV-A-KP
Part No.: 163334
| Series | DNC |
| Stroke Length | 420 mm |
| Piston Diameter | 40 mm |
| Max. Operating Pressure | 12 bar |
| Mode Of Operation | Double Acting |
| Cushioning | Pneumatic Cushioning, Adjustable At Both Ends |
| Position Sensing | For Proximity Sensing |
| Pneumatic Connection | G1/4 |
| Ambient Temperature | “20 / +80 °C |
| Profile Barrel | Wrought Aluminium Alloy, Smooth Anodised |
