Festo 173024 Double Solenoid Valve
Nouveau
En stock1 unitéPrêt à être expédié
DOUBLE SOLENOID VALVE
FESTO MEBH-5/3E-1/8-P-B valve with MSEB-3-24V DC coil features 5/3 exhausted function, piston slide design, and high flow capacity for pneumatic systems.5/3AircoilDoubleExhaustedFestoflowG1/8HighMEBH-5/3E-1/8-P-BMSEB-3-24VPistonPneumaticSlidesolenoidSub-BaseValve
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

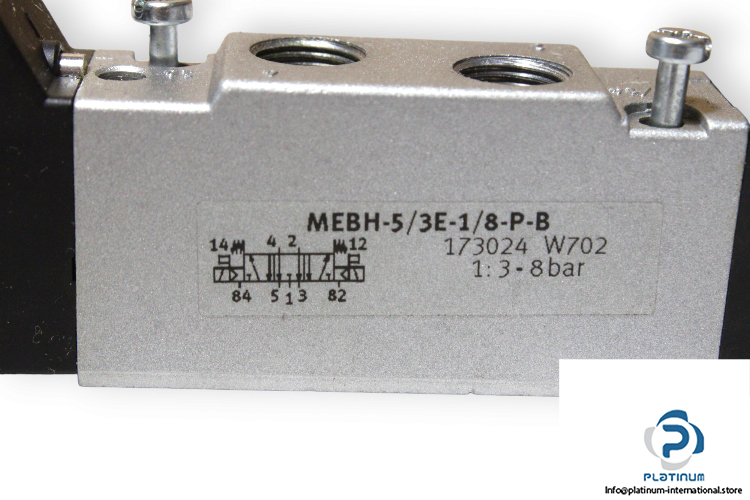

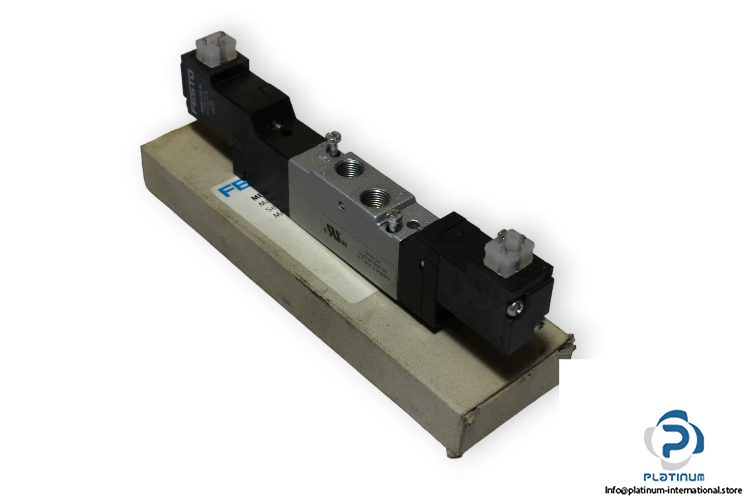

FESTO MEBH-5/3E-1/8-P-B DOUBLE SOLENOID VALVE WITH COIL
The FESTO MEBH-5/3E-1/8-P-B is a high-performance double solenoid valve featuring a piston slide design and a 5/3 exhausted valve function. Engineered for efficient control of air flow, it delivers reliability in automated pneumatic systems. This valve is equipped with the FESTO MSEB-3-24V DC solenoid coil, ensuring stable electrical actuation and protection against harsh environments.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: MEBH-5/3E-1/8-P-B
Part No.: 173024
Solenoid Coil Technical Information
| Fluid | Air |
| Design | Piston slide |
| Valve Function | 5/3 exhausted |
| Type of Actuation | Electrically |
| Operating Pressure | 3 / 8 bar |
| Nominal Flow Rate | 500 l/min |
| Pneumatic Connection | G1/8 / Sub-base |
| Material | Die-cast aluminum |
| Ambient Temperature | -5 / 50 °C |

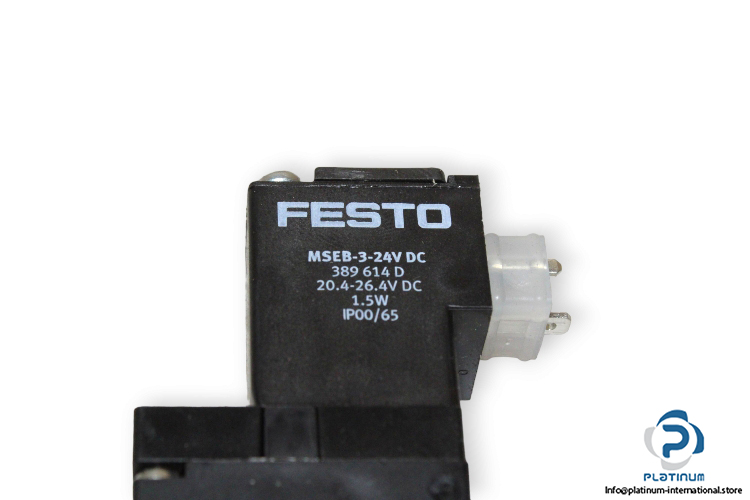

| Attachment | FESTO MSEB-3-24V DC Solenoid Coil |
| Part No. | 389614 |
| Supply Voltage | 20.4 ... 26.4 V DC |
| Power Consumption | 1.5 W |
| Protection Class | IP00 / IP65 |
