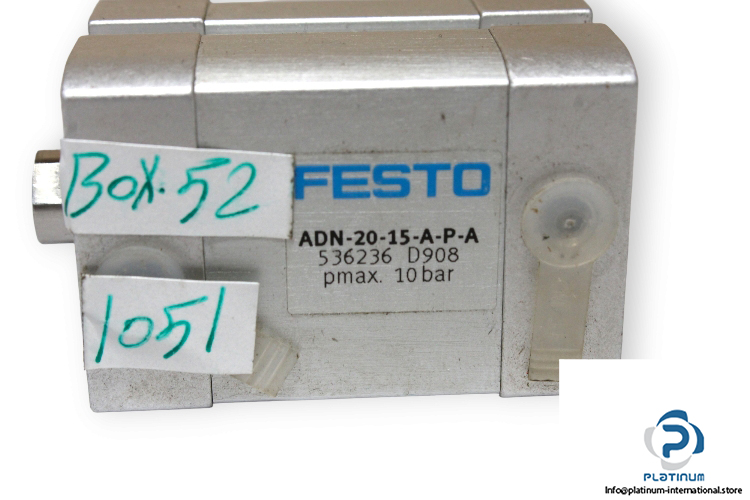

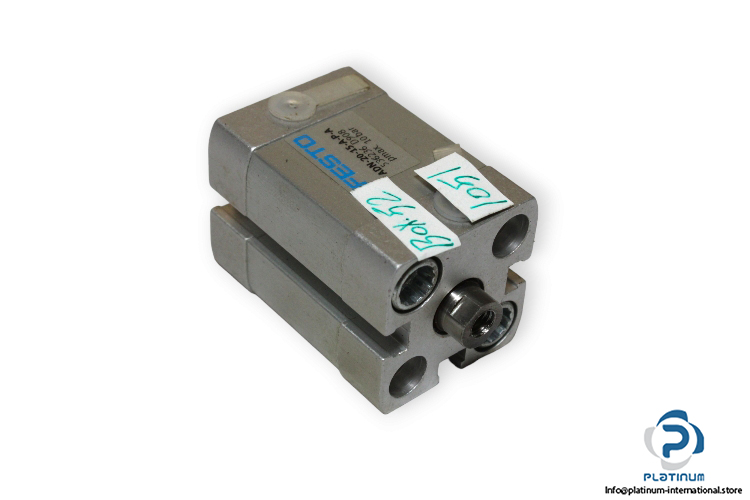

Festo 536236 Compact Cylinder Female

Manufacturer: FESTO
Type: Compact Cylinder
Model: ADN-20-15-A-P-A
Part No.: 536236

Stroke Length: 15 mm
Piston Diameter: 20 mm
Piston rod thread: Female
Max. Operating Pressure: 10 bar
Mode of operation: Double acting
Cushioning: Elastic cushioning rings/pads at both ends
Position Sensing: For proximity sensing
Variant: Piston rod at one end
Pneumatic Connection: 5 mm
Temperature: -20 … 80 °C
