Festo 554040 Proportional Pressure Regulator
188,88$
RÉGULATEUR DE PRESSION FESTO VPPM-6L-L-1-G18-0L10H-V1P-S1 est une vanne de régulation de pression proportionnelle 3 voies pour applications pneumatiques, offrant une régulation de 0,1 à 10 bar, un débit de 1400 l/min et des connexions filetées G 1/8.
FESTO VPPM-6L-L-1-G18-0L10H-V1P-S1 PRESSURE REGULATOR
The FESTO VPPM6LL1G180L10HV1PS1 Pressure Regulator is a high-performance 3-way proportional valve designed for precise air pressure control in pneumatic systems. With high flow capacity, electronic control, and durable threaded connections, it ensures reliable and accurate operation across a wide pressure range.
Manufacturer: FESTO
Type: Pressure Regulator

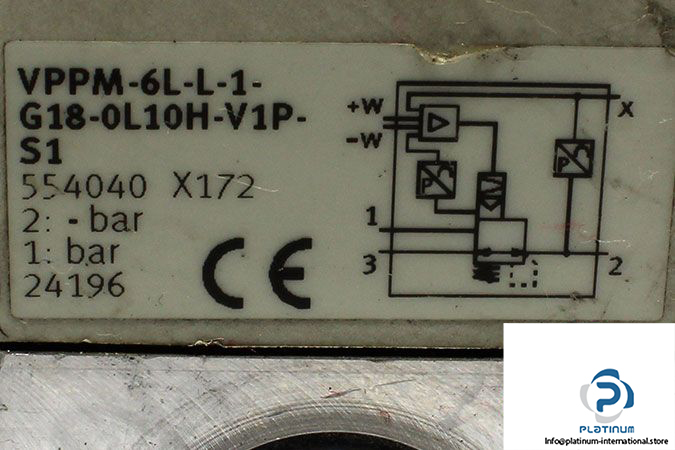

Model: VPPM-6L-L-1-G18-0L10H-V1P-S1
Part No.: 554040
Media: Air
Valve Function: 3-way proportional pressure control valve
Pressure Regulating Range: 0.1 / 10 bar
Inlet Pressure: 0 / 11 bar
Nominal Flow Rate: 1400 l/min
Switching Output: PNP
Pneumatic Connection: G 1/8, Threaded
Supply Voltage: 21.6 / 26.4 V
Ambient Temperature: 0 / 60 °C
