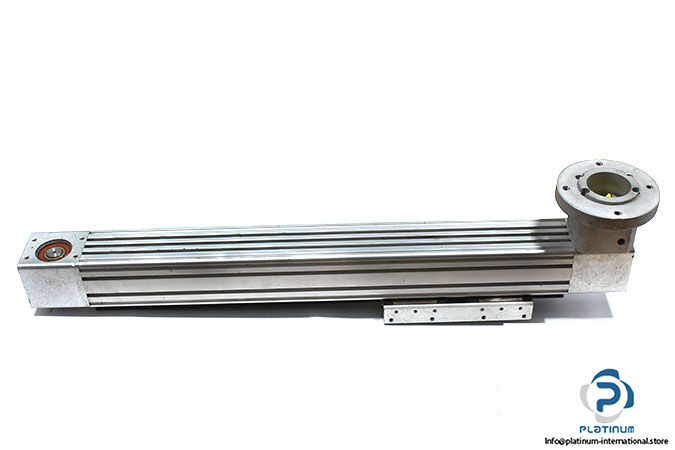

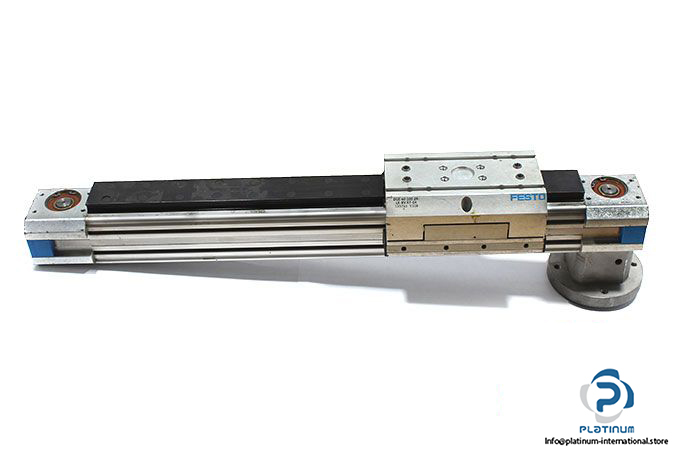

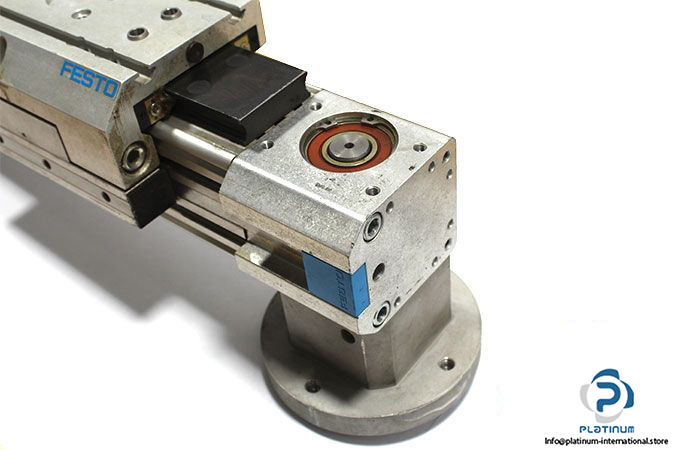

Festo DGE-40-100-ZR-LK-RV-KF-GK Belt Driven Linear Actuator

Manufacturer: FESTO

Type: Belt Driven Linear Actuator

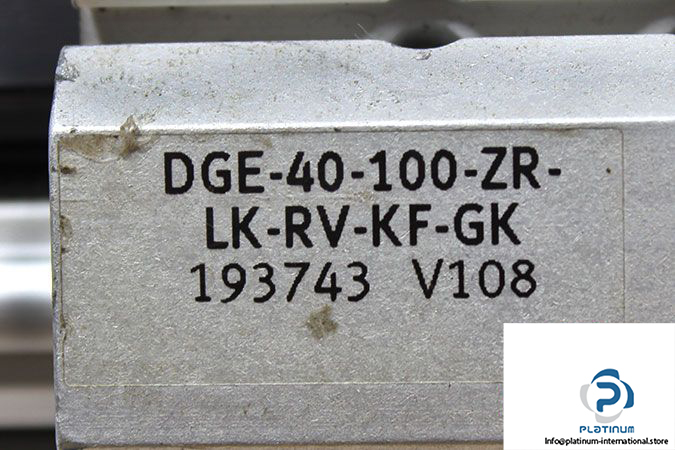

Model: DGE-40-100-ZR-LK-RV-KF-GK

Part No: 193743

Piston Diameter: 40 mm

Cushioning: Adjustable at Both Ends

Stroke: 100 mm

Operating Pressure: 8 bar

Max. Input Torque: 9.7 N

Max. No-Load Running Torque: 1.0 N

Max. Speed: 3 m/s

Constructional Design: Pneumatic Linear Drive with Slide

Guide: Recirculating Ball Bearing Guide

Repeatability: ±0.1 mm

Magnet: with Magnet

Type of Mounting: with Accessories

Weight: 8.9 kg
