Festo DN-32-900-PPV ISO Cylinder
Utilisé
En stock1 unitéPrêt à être expédié
ISO Cylinder
FESTO ISO Cylinder DN-32-900-PPV offers reliable performance with a 32 mm bore diameter, 900 mm stroke, and a maximum pressure of 12 bar. Ideal for pneumatic systems requiring high efficiency and durability.32900AirboreCircularCompressedconnectionCylinderDN-32-900-PPVDoubleFestoGIndustrialISOmmModeOperationPneumaticShapeStrokeSystems
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

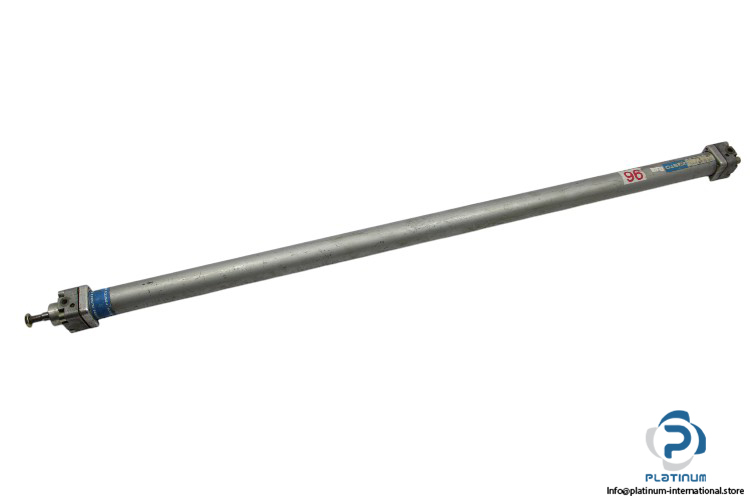

FESTO ISO Cylinder DN-32-900-PPV
The FESTO ISO Cylinder DN32900PPV is designed for high-performance pneumatic systems. With a bore diameter of 32 mm and a stroke of 900 mm, this cylinder offers efficient operation and reliable performance in various industrial applications.
Manufacturer: FESTO
Model: DN-32-900-PPV
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 32 mm
- Stroke: 900 mm
- Bore x Stroke: 32 x 900 mm
- Rod Diameter: 12 mm
- Frame Dimensions: 45 x 1020 mm
- Pneumatic Connection: G 1/8
- Pressure Max.: 12 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Circular
- Rod Direction: One Side
