Flowserve Lrgt 16-2 Conductivity Monitoring
799,99$
Surveillance de conductivité Flowserve LRGT 16-2 Le Flowserve LRGT 16-2 offre une surveillance fiable de la conductivité avec une sortie 4-20 mA, une protection IP65, et est conçu pour des applications industrielles nécessitant une grande durabilité et une performance précise jusqu'à 70°C.

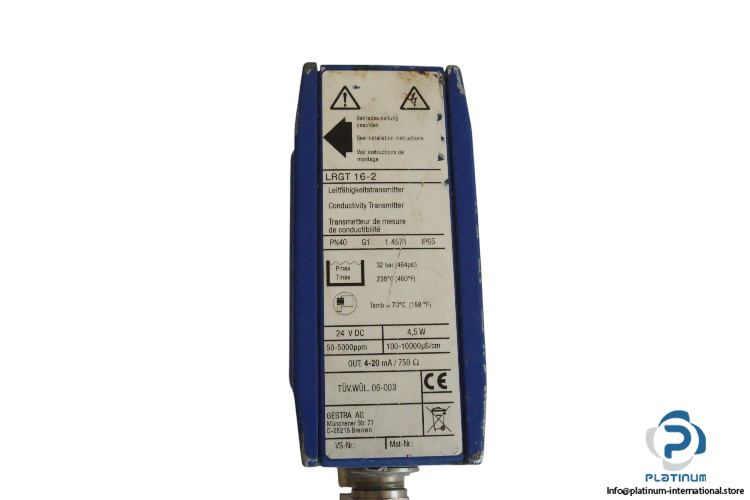

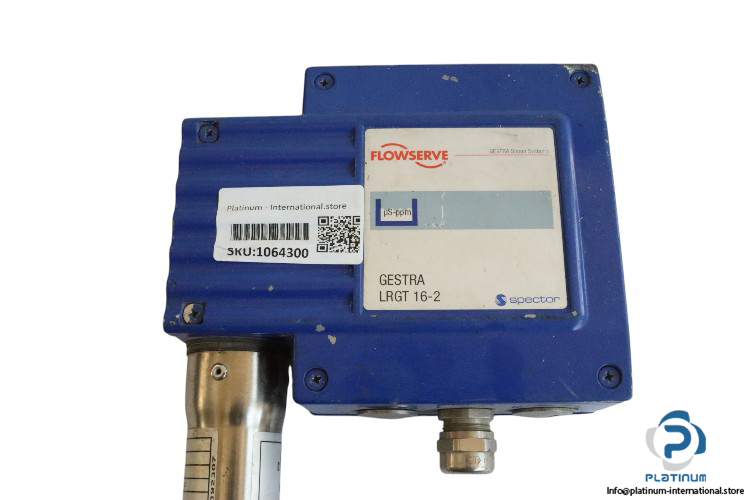

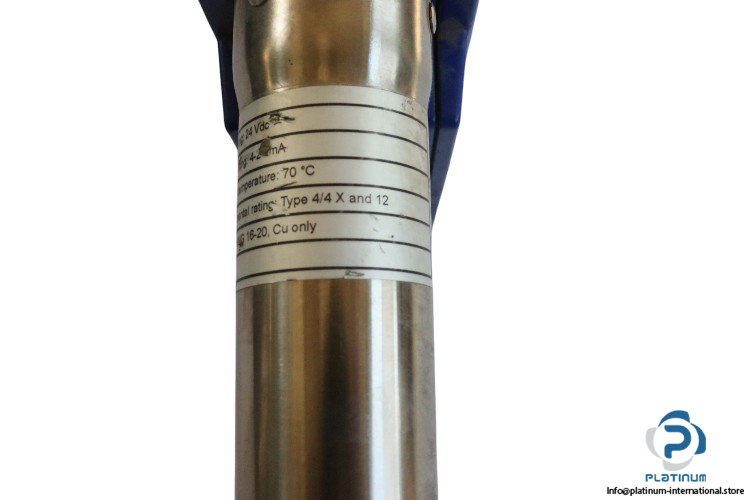

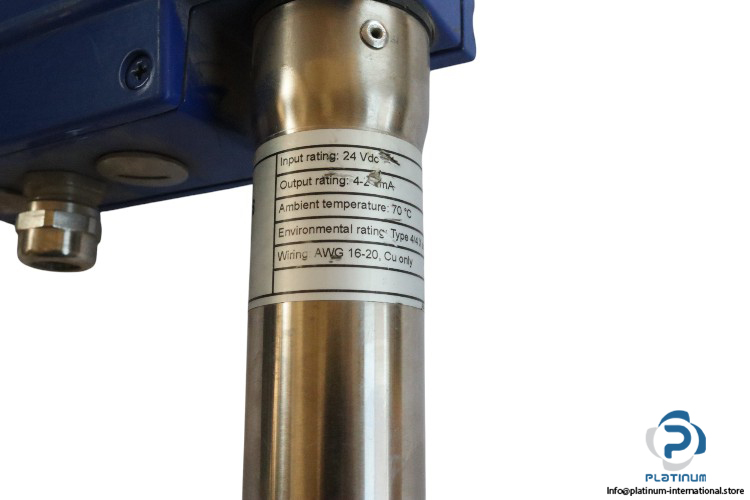

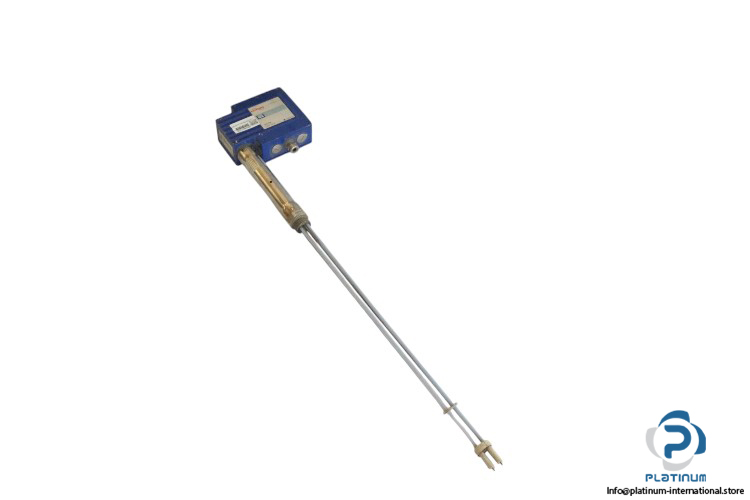

Flowserve LRGT 16-2 Conductivity Monitoring
The Flowserve LRGT 16-2 Conductivity Monitoring device is designed to accurately monitor the conductivity of various fluids in industrial processes. This unit operates with a voltage supply of 24 V DC (with a range of 18-36 V DC) and provides a current output of 4-20 mA for easy integration into control systems. With a power consumption of 4.5 watts, this device is energy-efficient and reliable. It features an EMC cable gland with an integrated cable clamp (M20 x 1.5) and a detachable 5-pole screw-type terminal strip, allowing for flexible wiring using 16-20 AWG conductors. The LRGT 16-2 is designed for durability with an IP65 degree of protection, ensuring it operates effectively in harsh environments. With a maximum ambient temperature of 70°C, this conductivity monitoring unit is ideal for demanding industrial applications.
- Manufacturer: Flowserve
- Type: Conductivity Monitoring
- Model: LRGT 16-2
Technical Specifications:
- Voltage Supply: 24 V DC (18-36 V DC)
- Current: 4-20 mA
- Power Consumption: 4.5 watts
- Cable Entry: EMC cable gland with integrated cable clamp, M20 x 1.5
- Terminal Strip: 5-pole screw-type, detachable, conductor size 1.5 mm²
- Wiring: 16-20 AWG
- Degree of Protection: IP65
- Max Ambient Temperature: 70°C
- Dimensions: 336 x 173 mm
- Diameter: 28 mm
The Flowserve LRGT 16-2 is a high-performance and durable conductivity monitoring solution, perfect for applications requiring accurate fluid analysis and reliable operation in harsh conditions.
