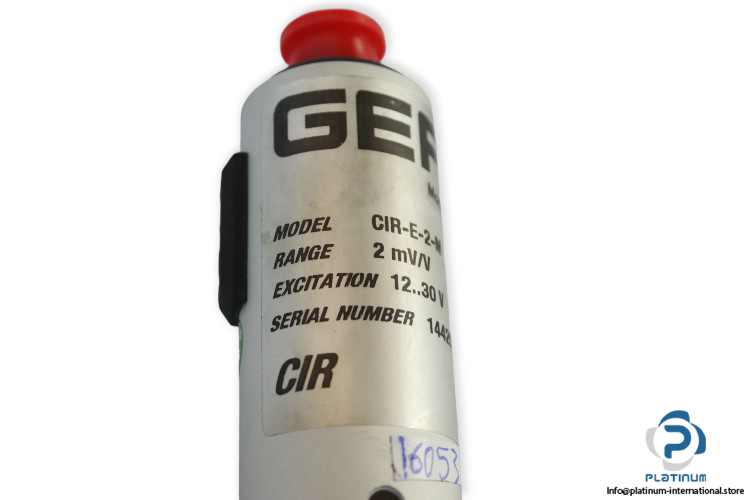

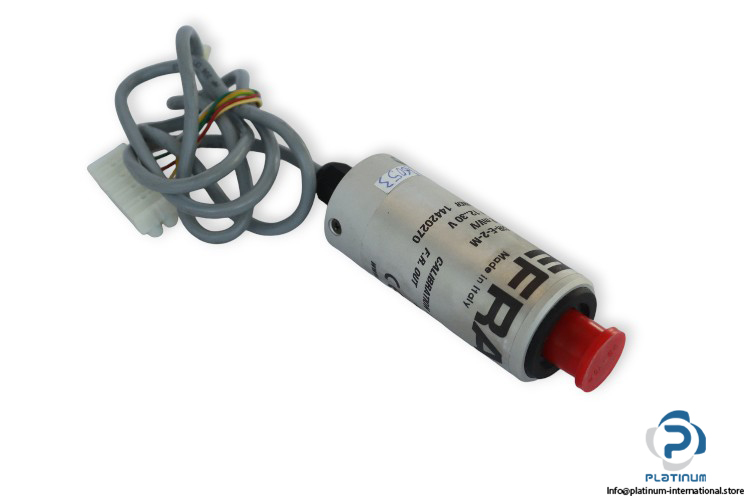

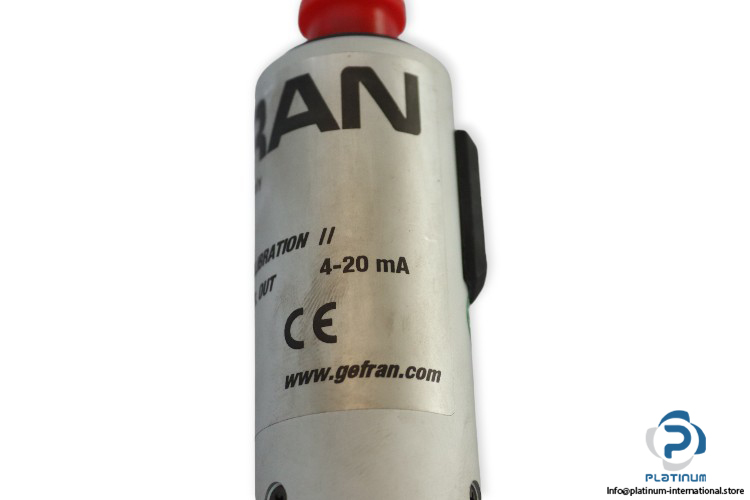

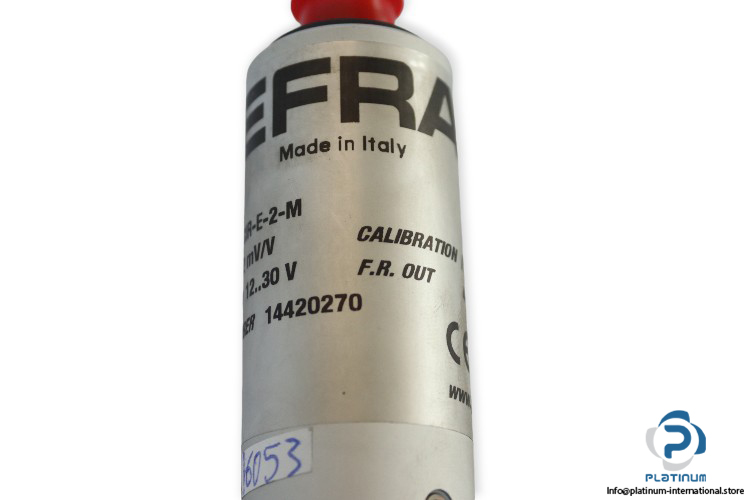

Gefran CIR-E-2-M Current Amplifier

Manufacturer: GEFRAN
Type: Current Amplifier
Model: CIRE2M

Series: CIR
Used for: Adapt Non-Amplified Strain Gauge Transducers (Load Cells, Pressure Transducers) to Acquisition Systems, PLC, Instrumentation with High Level Inputs
Supply Voltage: 12 … 30 V AC/DC
Output Signal: 4 … 20 mA 2 Fili
Primary Element Sensitivity: 2 mV/V 2
Output Load Resistance: 350 Ohm

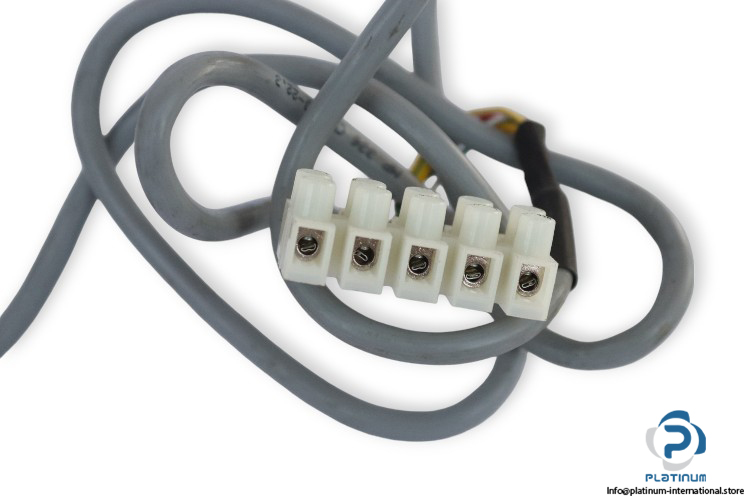

Electrical Connection: Cable  1 m
Protection Class: IP65
Operation Temperature: -10 … 80 °C
Length, Diameter: 117.5, 38 mm
