GMW ASK 105.6N Current Transformer
Nouveau
En stock1 unitéPrêt à être expédié

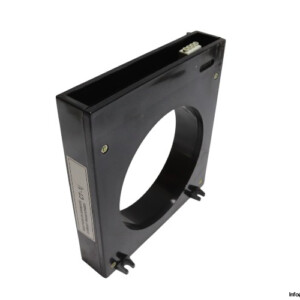

GMW ASK105.6N Plug-in Current Transformer Industrial plug-in current transformer with 4000 A primary current rating, 1 A secondary current, Class 1 accuracy, and 10 VA burden, designed for electrical measurement and monitoring applications.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
| Part Nr | 08J 92296304 |
| SN | H08205593194000/1 |
| Primary rated current | 4000 A |
| Secondary rated current | 1 A |
| Rated Burdens | 10 VA |
| Frequency | 50-60 Hz |
| Accuracy Class (Kl.) | Class 1 (Kl. 1) |
| Instrument Security Factor | FS10 |
| Thermal Nominal Continuous Current | 60 IN |
| Nominal Insulation Level | 0.72 / 3 Kv |
| Insulation Class | E |
| Round conductor Diameter | 55 mm |
| Dimensions | 129 x 214 x 78 mm |
| Isolation class | E |
| Condition | New |
| SKU | 1099357 |
| Weight | 2,25 |
