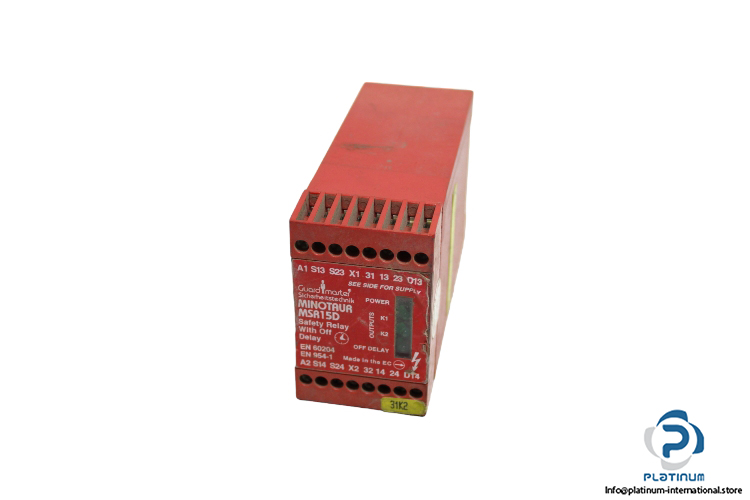

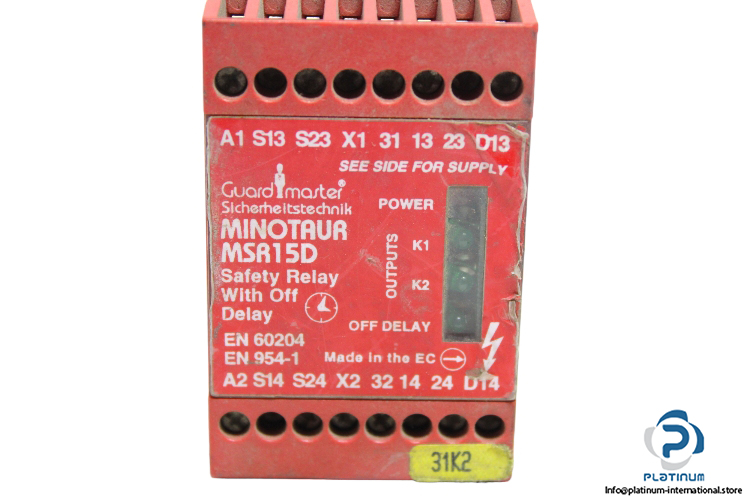

Guard Master MSR15D Monitoring Safety Relay

Manufacturer: Guard Master

Type: Monitoring Safety Relay

Model: MSR15D

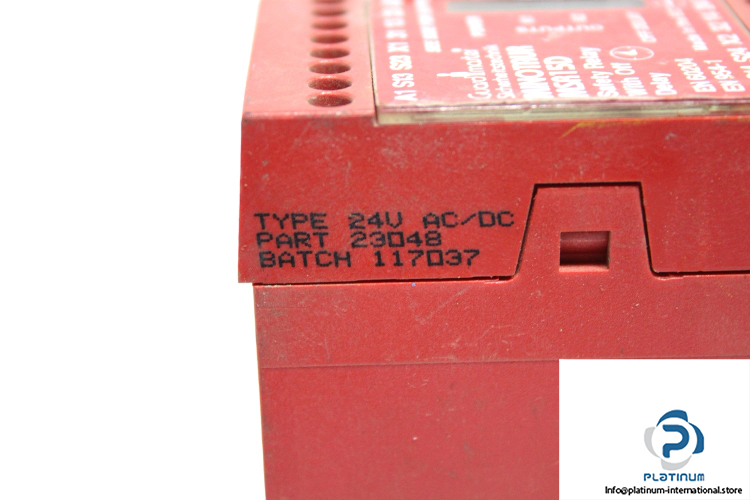

Part No.: 23048

Power supply: 24 V AC/DC

Power consumption: <4 VA

Safety inputs: 2 Normally closed switches

Relay outputs: 2 Normally open and 1 Normally closed TUV approved, 1 Normally open delay output TUV approved

Operating Temperature: -10 … +55 °C

Degree of enclosure protection: IP 40

Terminal isolation: IP 20

Terminals: plus-minus terminal screw M3.5, Box terminal with wire protection

Dimensions: 120 x 73 x 45.5 mm

Housing material: Polycarbonate
