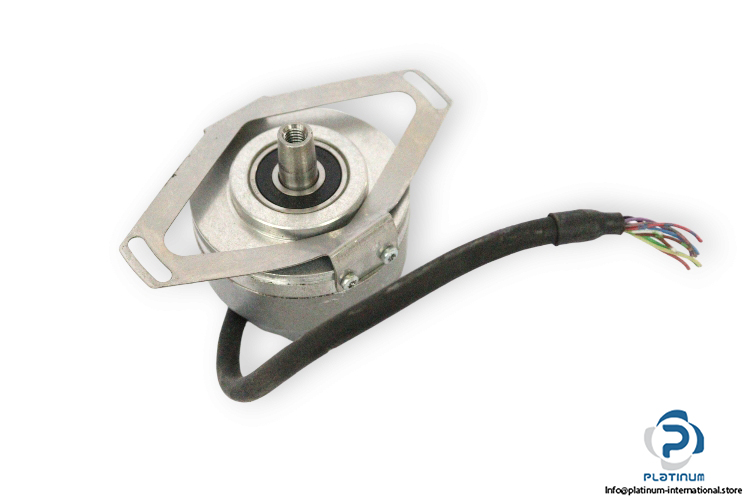

Heidenhain EQN 1325 049-2048 655 251-52 Absolute Rotary Encoder With Tapered Shaft
750,00$
CODEUR ROTATIF ABSOLU L'encodeur Heidenhain EQN13250492048 avec une résolution de 2048 lignes et un arbre conique offre un fonctionnement à grande vitesse jusqu'à 12 000 tr/min, un suivi précis de la position, et une protection durable IP40 pour les systèmes industriels.
HEIDENHAIN EQN13250492048 ABSOLUTE ROTARY ENCODER
The Heidenhain EQN13250492048 is a high-precision absolute rotary encoder designed with a tapered shaft for accurate and stable feedback in dynamic industrial environments. It offers high-resolution positioning and robust performance for demanding automation systems.

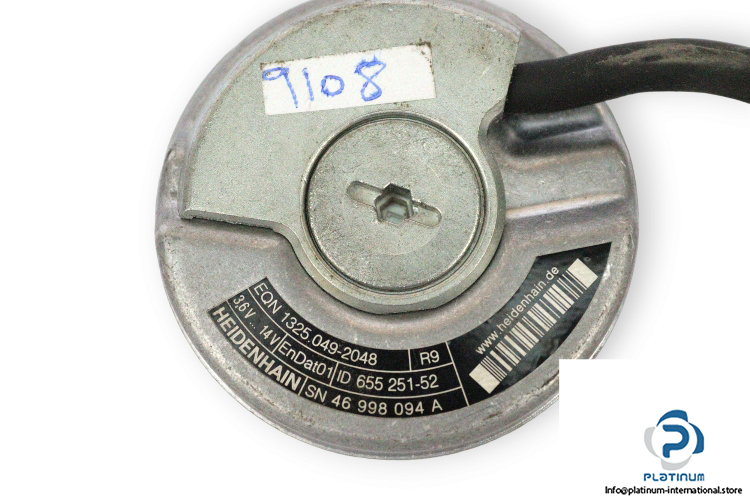

Manufacturer: Heidenhain
Type: Absolute Rotary Encoders with Tapered Shaft
Model: EQN13250492048
ID No.: 655 251-52
Ordering Designation: EnDat01
Serial No.: 46998094A
Reference No.: R9
| Voltage | 3.6 … 14 V |
| Speed | 1500 … 12 000 RPM |
| Line Count | 2048 Lines |
| Calculation Time | 9 µs |
| Revolutions | 4096 (12 bits) |
| Positions per Revolution | 8192 |
| Output Signal | Vpp |
| Output Code | Binary |
| Coupling Version | Without Coupling |
| Connecting Direction | Cable Outlet for Axial and Radial Use |
| Electrical Connection | 12 Pin |
| Shaft | Tapered Shaft (9.25 mm), Taper: 1:10 |
| Operating Temperature | -40 … 115 °C |
| Degree of Protection | IP40 |
