Motion Control Rotary Encoders

Heidenhain ROD 1080 1000 03S12-03 Incremental Encoder

Name: HEIDENHAIN ROD 1080 1000 03S12-03 INCREMENTAL ENCODER
Brand: HEIDENHAIN
SKU: 966129
Price: 300.00 USD
Availability: InStock


heidenhain-rod-1080-1000-03s12-03-incremental-encoder3_675x450

heidenhain-rod-1080-1000-03s12-03-incremental-encoder4_675x450

heidenhain-rod-1080-1000-03s12-03-incremental-encoder5_675x450




Nouveau

En stock1 unitéPrêt à être expédié

300,00$

Encodeur incrémental HEIDENHAIN ROD-1080-1000-03S12-03 offrant une résolution de 1000 PPR, alimentation 5 VDC, et sortie 1 VPP, avec un arbre solide et protection IP64. Idéal pour l'automatisation et les systèmes servo.

Fabricant

HEIDENHAIN

SKU

966129

Catégorie

Rotary Encoders

Condition

Nouveau

1000 5VDC Control Encoder Heidenhain High-Speed Incremental IP64 Motion PPR ROD-1080-1000-03S12-03 shaft Signal Solid

Stock massif

Expédition mondiale

Support Expert

Qualité garantie

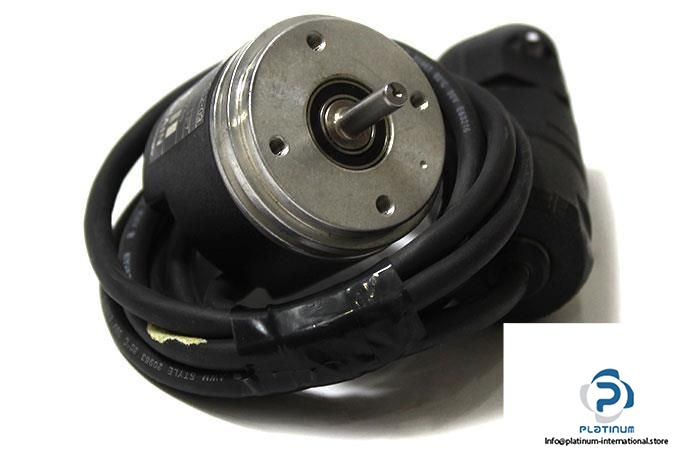

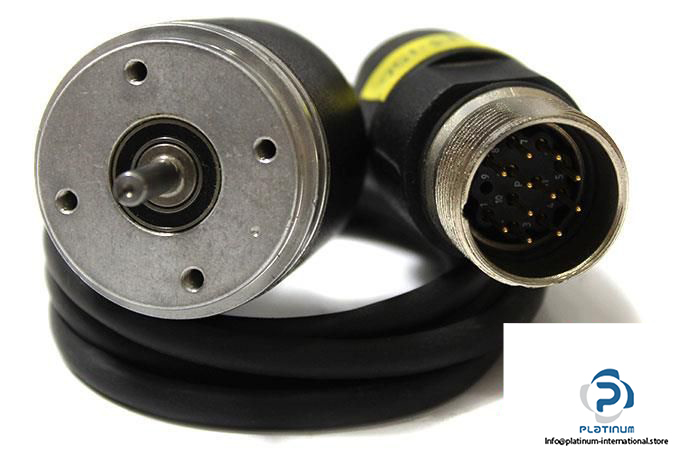

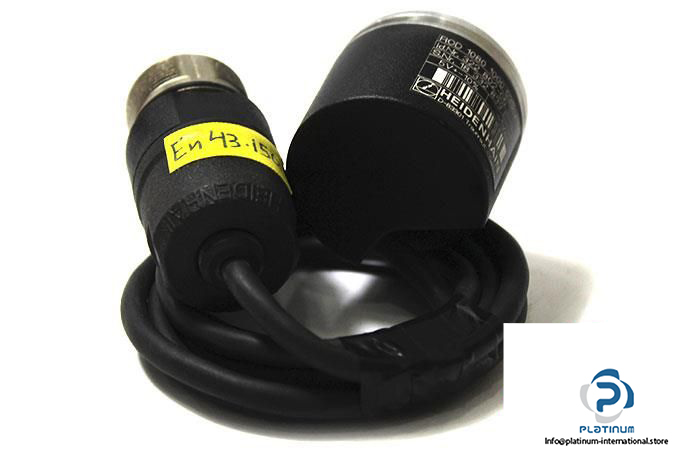

HEIDENHAIN ROD-1080-1000-03S12-03 INCREMENTAL ENCODER

The HEIDENHAIN ROD-1080-1000-03S12-03 is a precision-engineered incremental encoder built for high-speed, high-resolution applications. It provides accurate pulse feedback for motion control systems, ideal for integration in automation, robotics, and servo-driven environments.

Manufacturer: HEIDENHAIN

Type: Incremental Encoder

Model: ROD-1080-1000-03S12-03

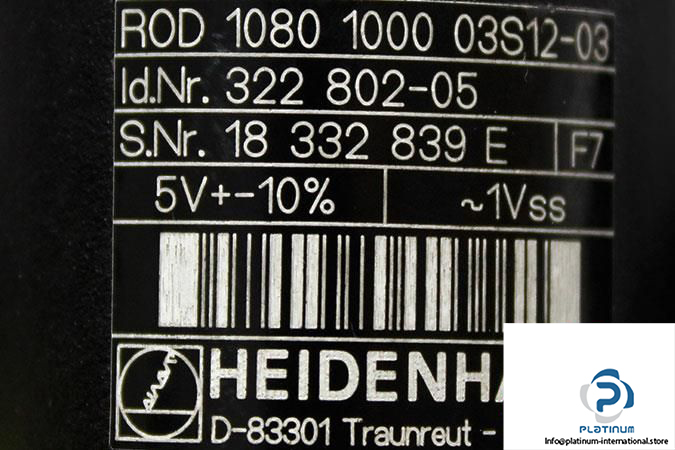

ID No.: 322 802-05

Serial No.: 18 332 839 E

Shaft Design: Solid shaft

Shaft Diameter	4 mm
Voltage Supply	5 VDC
Resolution	1000 PPR (Pulses Per Revolution)
Signal Output	1 VPP
Mechanical Speed	12000 rpm
Max. Pulse Frequency	180 kHz
Protection Class	IP 64
Max. Temperature	100 °C
