Herion 80207 47 Single Solenoid Valve With Coil
En stock1 unitéPrêt à être expédié
66,66$
Single Solenoid Valve
IMI Precision Herion 8020747 electrically actuated 3/2-way solenoid valve with aluminum body, IP65 protection, and wide pressure range for pneumatic air systems.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

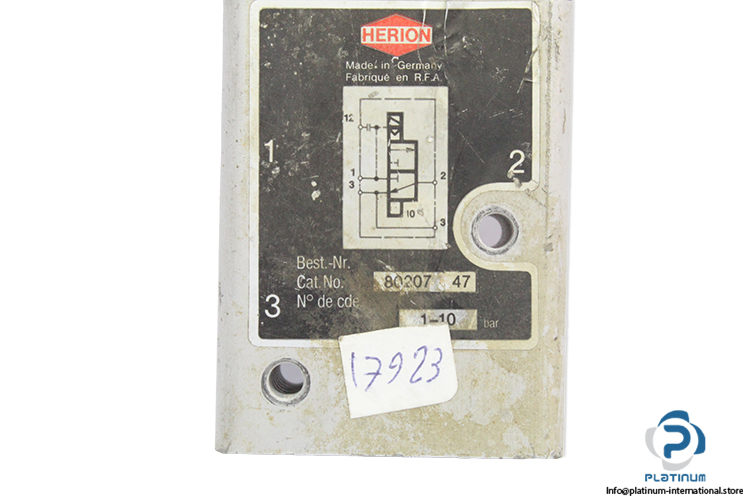

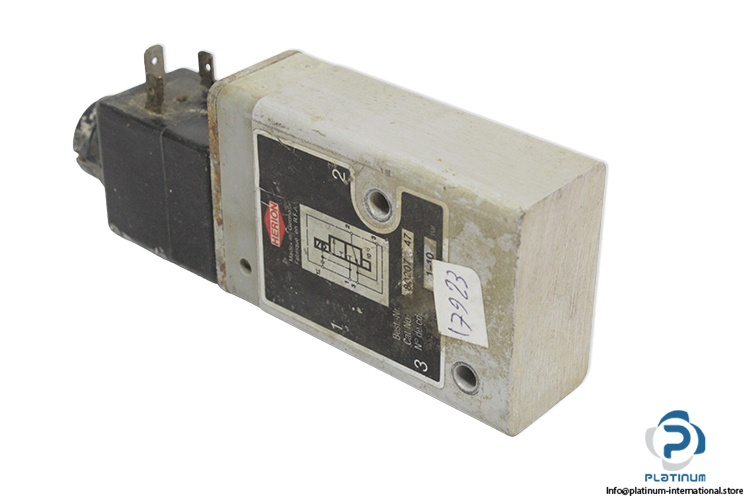

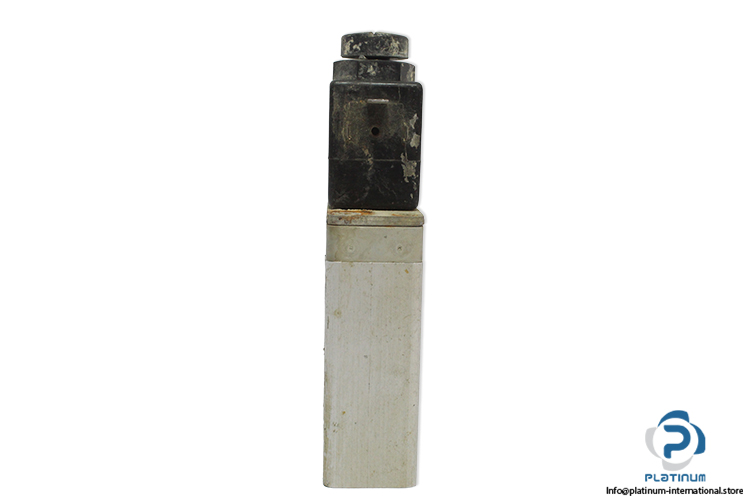

IMI Precision Herion 8020747 Single Solenoid Valve
The IMI Precision Herion 8020747 is a single solenoid pneumatic valve designed for electrically actuated control of compressed air systems. It features a robust aluminum body, precise 3/2-way valve function, and reliable operation across a wide pressure and temperature range.
Manufacturer: IMI Precision Herion
Type: Single Solenoid Valve
Model: 8020747
Pneumatic Connection:
| Type of Actuation | Electrically |
| Valve Function | 3/2 Way Valve |
| Operating Pressure | 1 / 10 bar |
| Fluid | Air |
| Ports 2 + 4 | Sub Based |
| Ports 1 + 3 | G 1/4 |
| Plug Diameter | 13 mm |
| Material | Aluminum |
| Ambient Temperature | -10 to 60 °C |

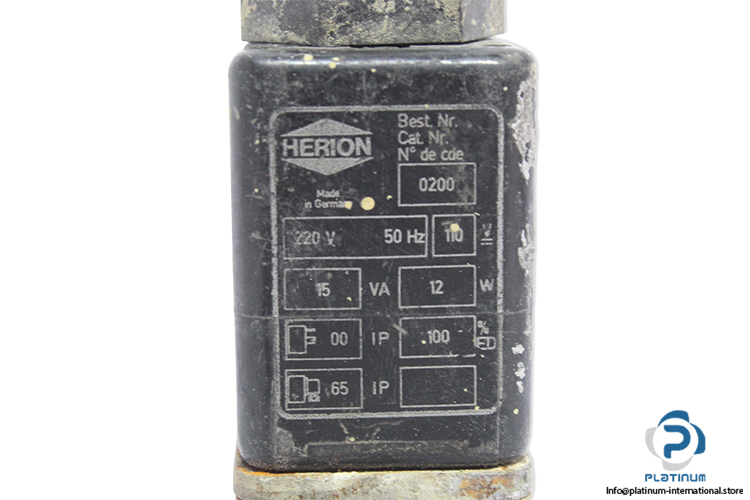

| Attached With | Herion 0200 Solenoid Coil |
| Voltage | 220 V AC |
| Frequency | 50 Hz |
| Power Consumption | 15 VA |
| Voltage | 110 V DC |
| Power Consumption | 12 W |
| Electrical Connection | 3-Pin |
| Plug Design | Cylindrical |
| Inner Diameter | 13.1 mm |
| Length | 40.5 mm |
| Width | 29.5 mm |
| Solenoid Coil Material | PET |
| Protection Class | IP65 |
