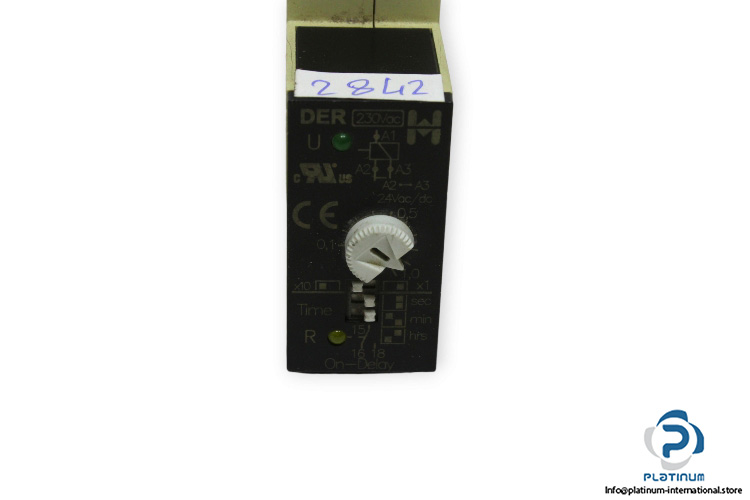

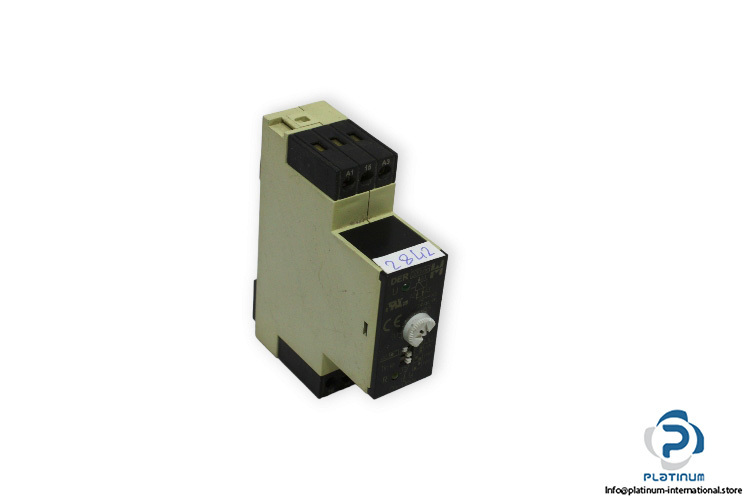

Hiquel Electronik DER ON Delay Timer

Manufacture: Hiquel Electronik
Type: On Delay Timer
Model: DER

Operating voltage: 24 V AC/DC, 230 V AC
Power: 6 VA / 1 W
Frequency: 48 … 63 Hz
Time ranges: 8 selectable time ranges (0.1 sec … 100 h)
Contact: 1 change over contact,8 A,250 V AC
Switching voltage (max.): 24 V DC, 230 V AC
Switching current (max.): 5 A
Connection: Screw terminals
Operation temperature: -20 … +60°C
Dimensions (W x H x D): 22.5 x 85 x 75 mm
