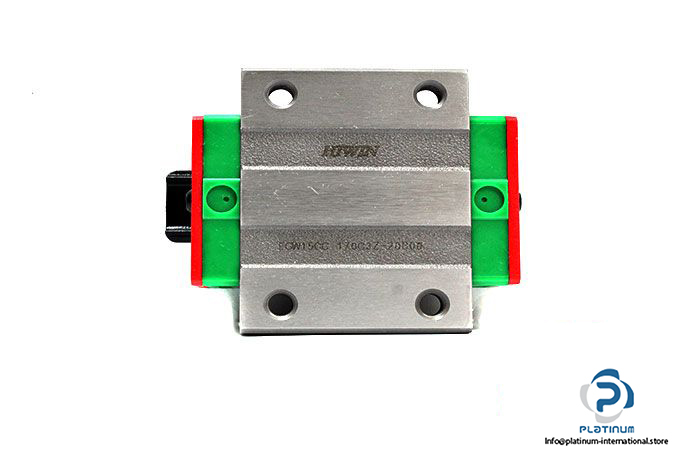

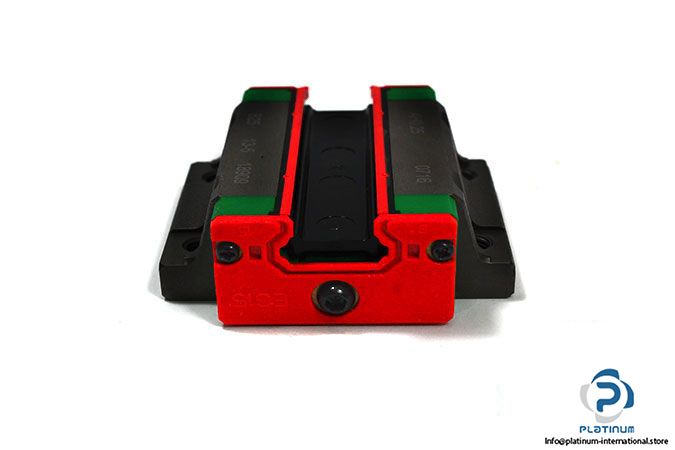

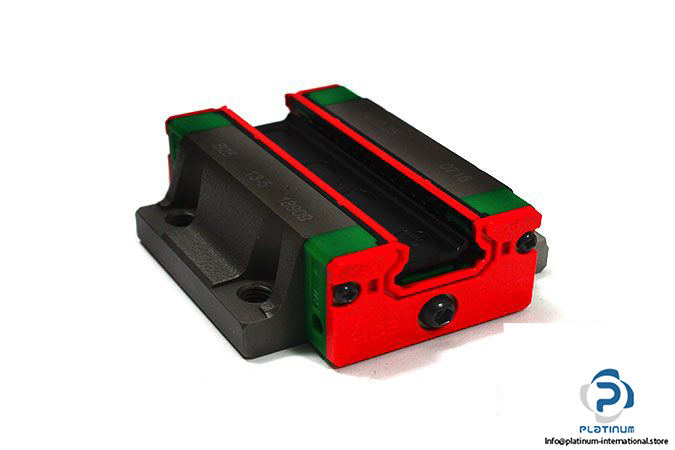

Hiwin EGW15CC Linear Guideway Block
Nouveau
En stock85 unitésPrêt à être expédié
55,99$
BLOC DE GUIDE LINÉAIRE Bloc de guide linéaire Hiwin de 15 mm de taille et de conception type bride, supporte des charges lourdes avec une haute précision. Montage possible par le dessus ou le dessous pour une installation flexible.
15170C3Z-20300BlockCCEGWFlangeGuideGuidewayHeavyHiwinIndustrialLinearLoadM3x16mmMotionPrecisionrailSystemType
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
HIWIN EGW 15 CC 170C3Z-20300 LINEAR GUIDEWAY BLOCK
This heavy-duty linear guideway block from Hiwin is engineered for precise motion and high load capacity. Its compact flange design and dual mounting options make it ideal for high-performance industrial applications requiring durability and rigidity.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: EGW 15 CC 170C3Z-20300
| Size | 15 mm |
| Block Height (H) | 19.5 mm |
| Block Width (W) | 52 mm |
| Block Length (L) | 56.8 mm |
| Total Height | 24 mm |
| Distances Between Holes | 41 mm, 26 mm |
| Thread Size | M3 x 16 |
| Rail Width | 15 mm |
| Rail Height | 12.5 mm |
| Block Type | Flange |
| Load Type | Heavy Load |
| Block Mounting Type | From Above or Below |
| Basic Dynamic Load Rating (C) | 7.83 kN |
| Basic Static Load Rating (C‚) | 16.19 kN |
