Hoerbiger SIPV430-06N17X B1 Pressure Control Valve
Utilisé
En stock2 unitésPrêt à être expédié
699,99$
Pressure Control Valve
The HOERBIGER SIPV430-06N17X B1 is a proportional solenoid pressure control valve with 350 bar rating, 24 V DC operation, and G1/2 connection, designed for precise hydraulic regulation.24v350B1barcoilControldcg1/2HoerbigerHydraulicPressureProportionalSensorSIPV430-06N17XsolenoidUnitValve
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

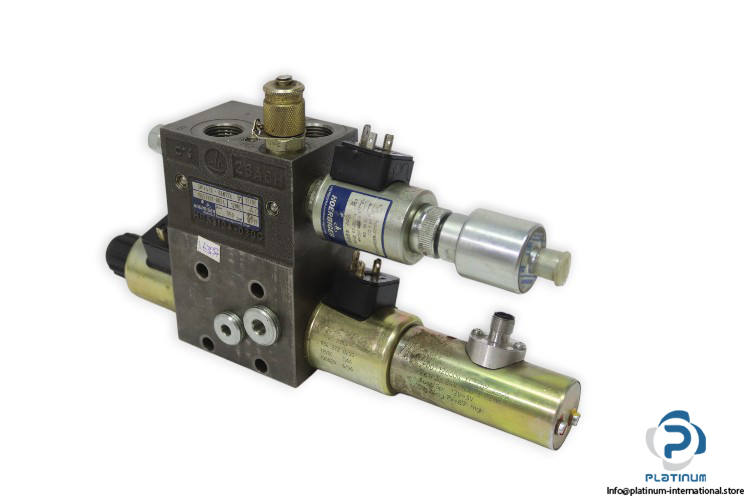

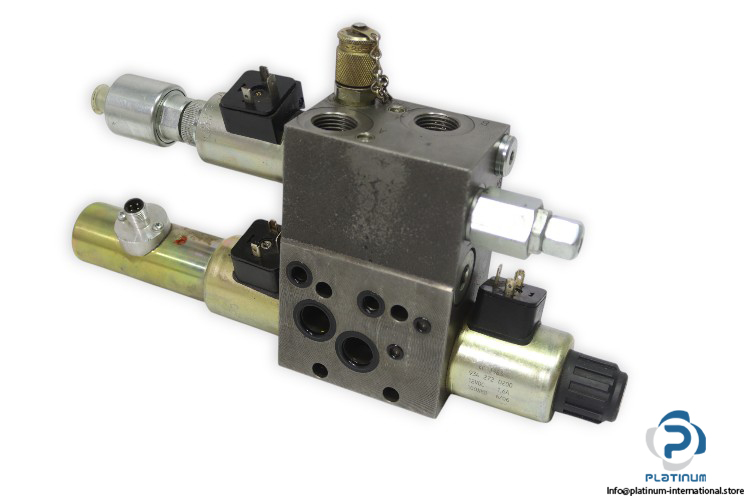

HOERBIGER SIPV430-06N17X B1 Pressure Control Valve
The HOERBIGER SIPV430-06N17X B1 Pressure Control Valve is a direct-acting proportional solenoid valve designed for accurate pressure control in high-pressure hydraulic systems. Engineered for reliability and performance, it ensures consistent operation under demanding industrial conditions.

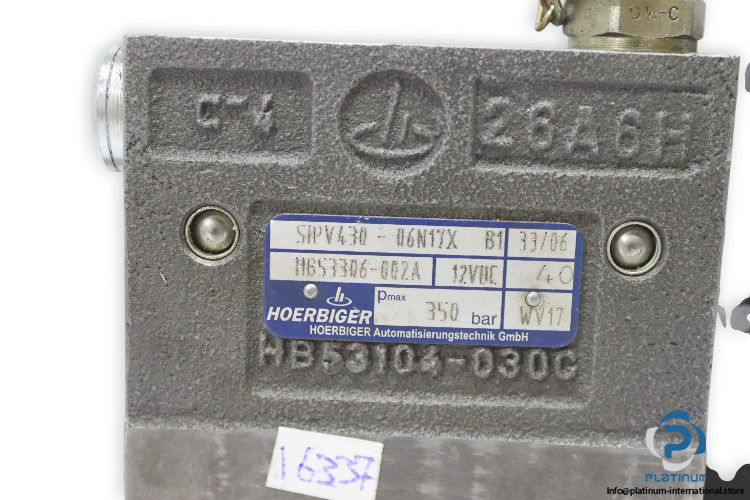

Manufacturer: HOERBIGER
Type: Pressure Control Valve
Model: SIPV430-06N17X B1
REF No.: 33/06, 40
MRN: HB53306-002A
REF Code: WV17, 26A6H
Housing No.: HB53104-030C
Attached Components
| Max Pressure | 350 bar |
| Electrical Supply | 12 V DC |
| Mounting | Subplate / Manifold Mount |
| Thread Connection | G1/2 |

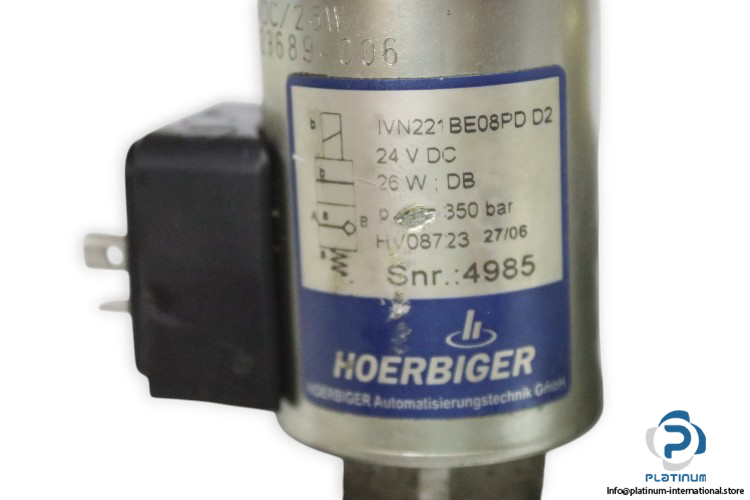

| Attached With | HOERBIGER IVN221BE08PD D2 2/2 Directional Seat Valve |
| Serial No. | 4985 |
| Ref Code | HV08723 27/06 |
| Operating Voltage | 24 V DC |
| Power Consumption | 26 W |
| Rated Pressure | 350 bar |
| Schematic Symbol | Direct-acting Proportional Solenoid Valve |

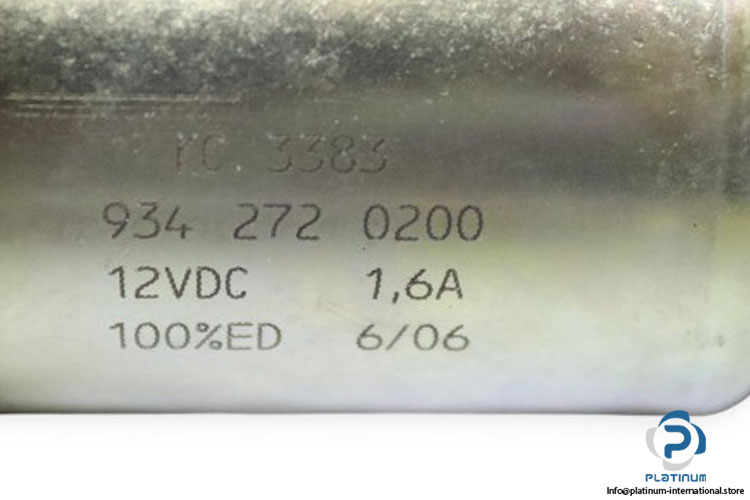

| Solenoid Coil Model | 934 272 0200 (12 V, 1.6 A, 100% ED) |
| Ref Code | KC 3383 |

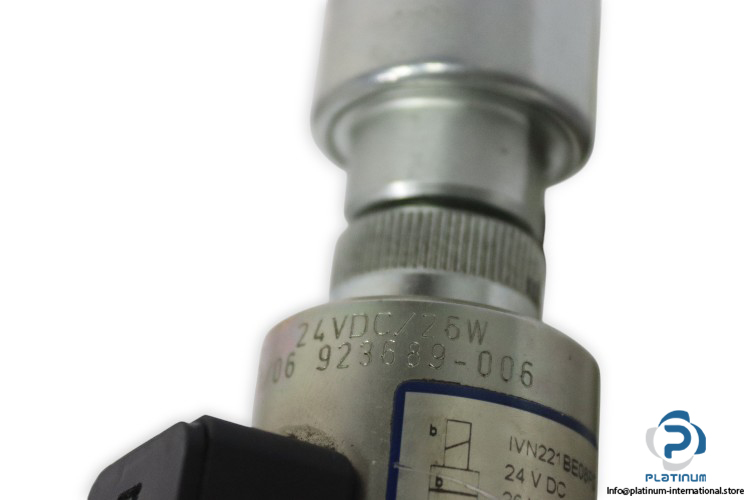

| Solenoid Coil Model | 923689-006 (24 V DC, 26 W, 100% ED) |

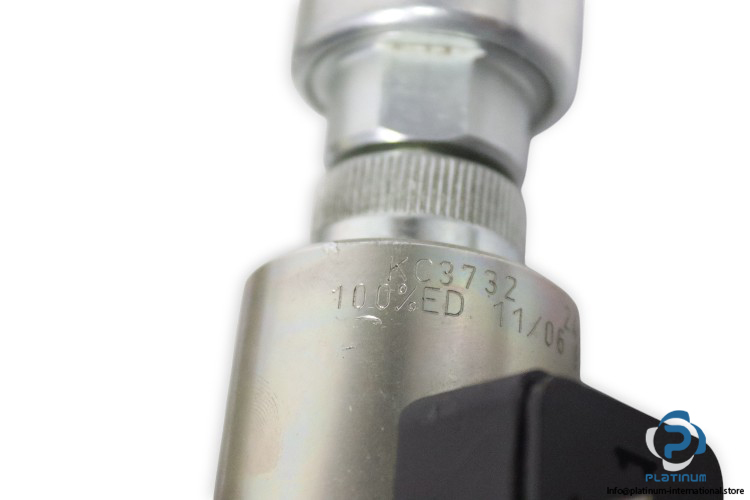

| Ref Code | KC 3732, 11/06 |

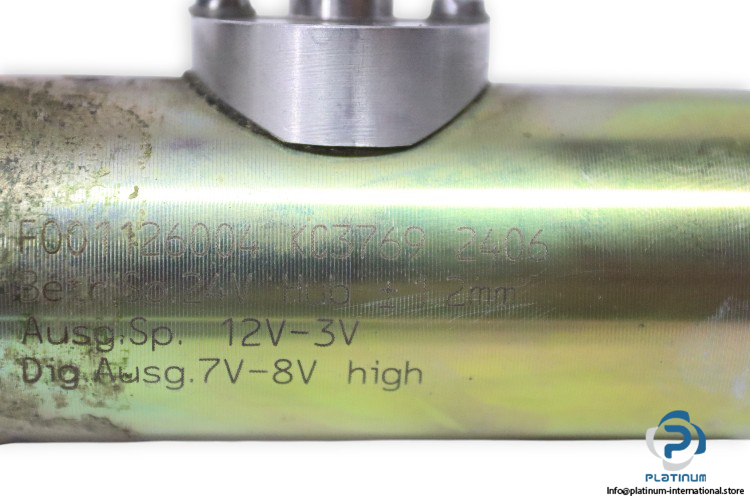

| Sensor Unit Model | F001126004 KC3769 2406 |
| Hub | 2 mm |
| Nominal Voltage | 24 V DC |
| Operating Voltage | 24 V DC |
| Digital Output Signal | 7 V “ 8 V |
| Output Signal Voltage | 12 V “ 3 V |
