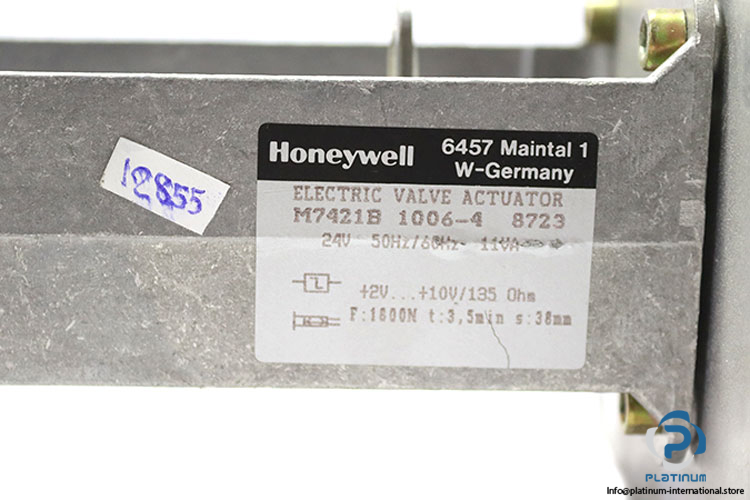

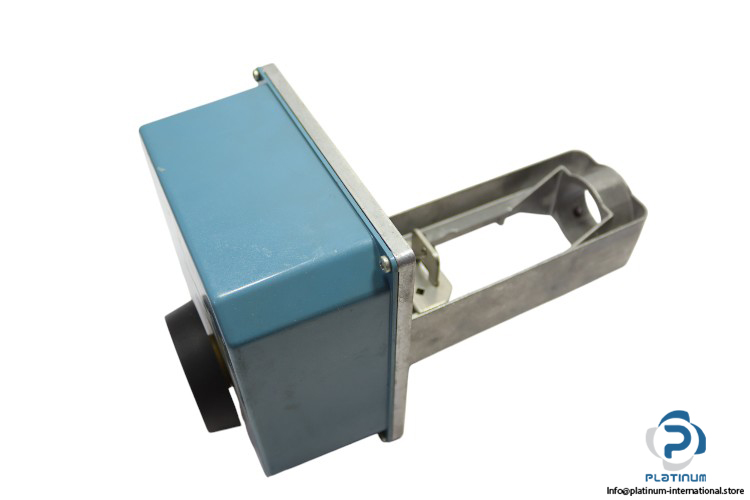

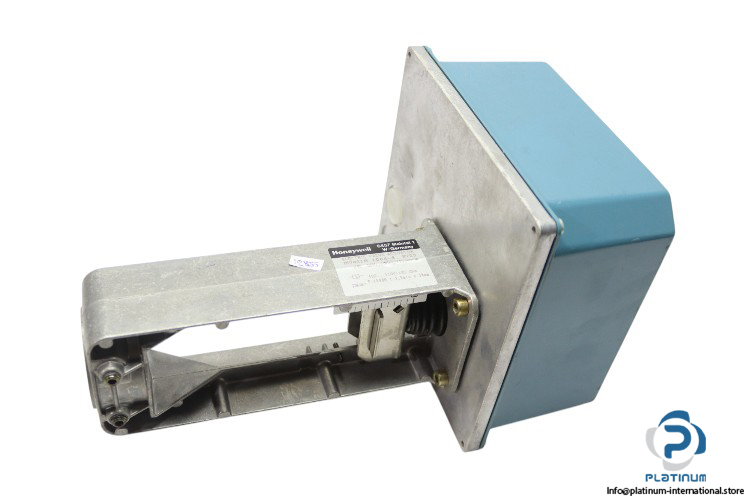

Honeywell M7421B 1006-4 8723 Electric Linear Valve Actuator

Honeywell M7421B 1006-4 8723 Electric Linear Valve Actuator

The Honeywell M7421B 1006-4 8723 Electric Linear Valve Actuator provides precise control for various industrial and HVAC applications. With a nominal stem force of 1600 N and a 38 mm stroke, it delivers reliable performance with fast actuation and minimal power consumption.

Manufacturer: HONEYWELL

Type: Electric Linear Valve Actuator

Model: M7421B 1006-4 8723

Technical Data:

• Supply Voltage: 24 Vac
• Frequency: 50/60 Hz
• Power Consumption: 11 VA
• Output Voltage Range (Position): 2 … 10 Vdc
• Stroke: 38 mm
• Run-Time at 50 Hz: 3.5 min
• Nominal Stem Force: 1600 N
