Hydraulic System Hydraulic Pumps Vane Pumps

Hydraulik Ring PVS 12 H063 PS1.6 A2 Vane Pump

Name: HYDRAULIK RING PVS 12 H063 PS1.6 A2 VANE PUMP
SKU: 1100285
Availability: LimitedAvailability

hydraulic-ring-PVS12H063PS1.6A2-vane-pump-without-control-head(used)

hydraulic-ring-PVS12H063PS1.6A2-vane-pump-without-control-head(used)-1

hydraulic-ring-PVS12H063PS1.6A2-vane-pump-without-control-head(used)-2

Utilisé

En stock1 unitéPrêt à être expédié

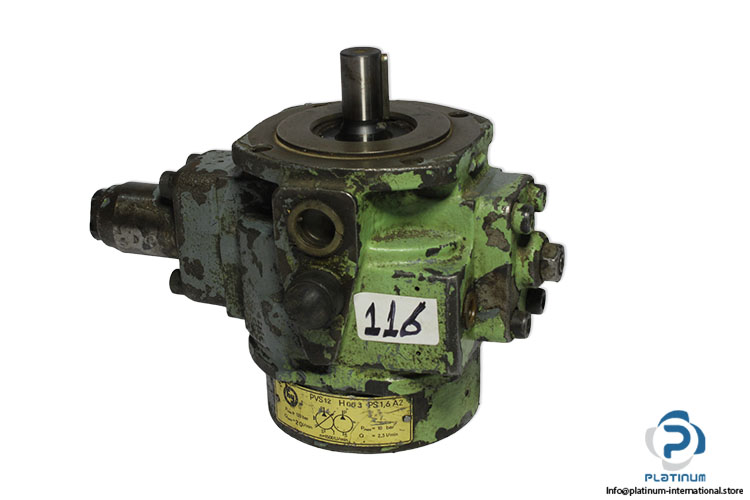

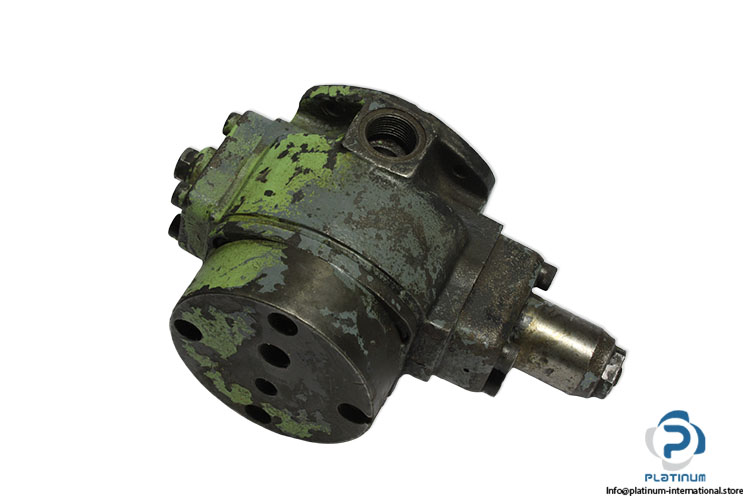

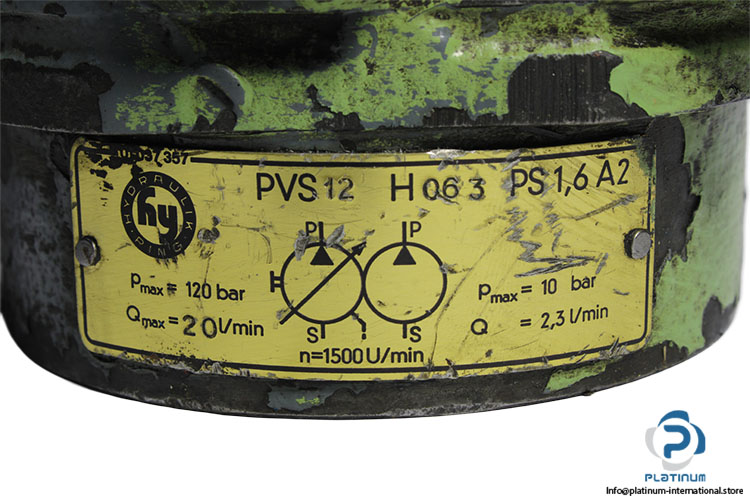

Hydraulic Vane Pump The Parker Hydraulik Ring PVS12H063PS1.6A2 is a PVS series hydraulic vane pump featuring servo pressure compensation, 12.8 cm³/rev displacement, and a maximum pressure of 120 bar.

Fabricant

HYDRAULIK RING

SKU

1100285

Catégorie

Vane Pumps

Condition

Utilisé

Stock massif

Expédition mondiale

Support Expert

Qualité garantie

Series	PVS
Fluid	oil
size	12
Control options	Servo pressure compensator
Displacement	12.8 cm3/rev
Direction of Rotation	Clockwise
Shaft Diameter	19 mm
Output flow at 1500 rpm	19 l/min
Input power	5 kW
Maximum Pressure , Main Pump	120 bar
Maximum Flow Rate , Main Pump	20 L/min
Maximum Pressure , Auxiliary Pump	10 bar
Flow Rate , Auxiliary Pump	2.3 L/min
Speed	1500 rpm
Ambient-temperature range	–10 … 70 °C
Max Pressure	120 [bar]
Inlet Pressure min.	1.0 [bar]
absolute Drain port	max. 0.5 [bar]
Viscosity range	22 - 100[mm²/s]
Stock key	CON-003
Condition	Used
SKU	1100285
Weight	10,5
