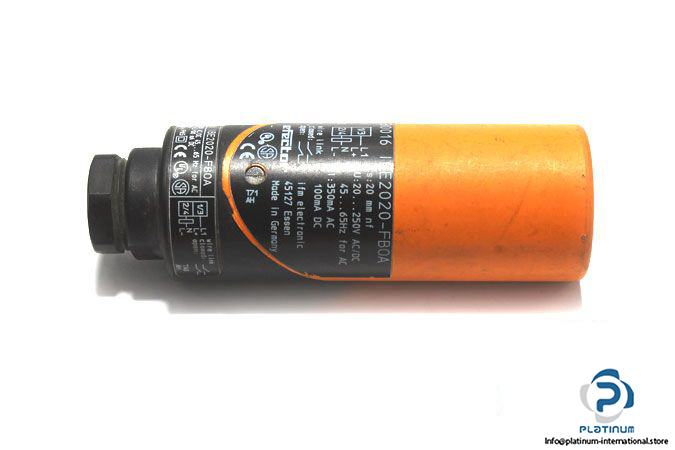

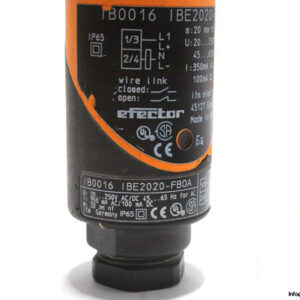

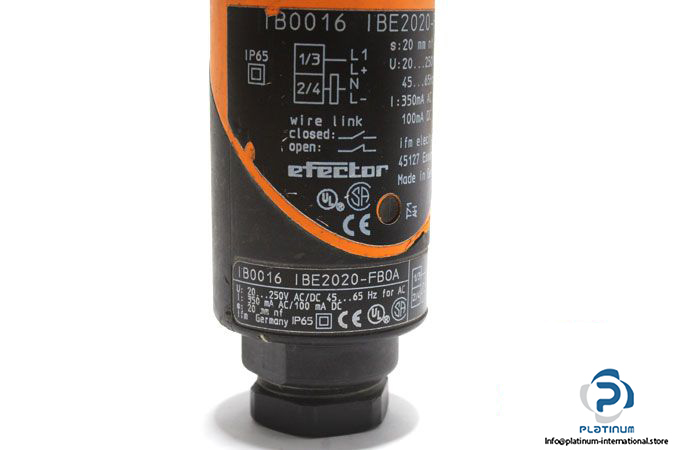

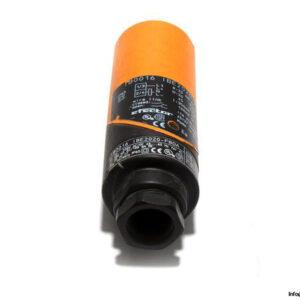

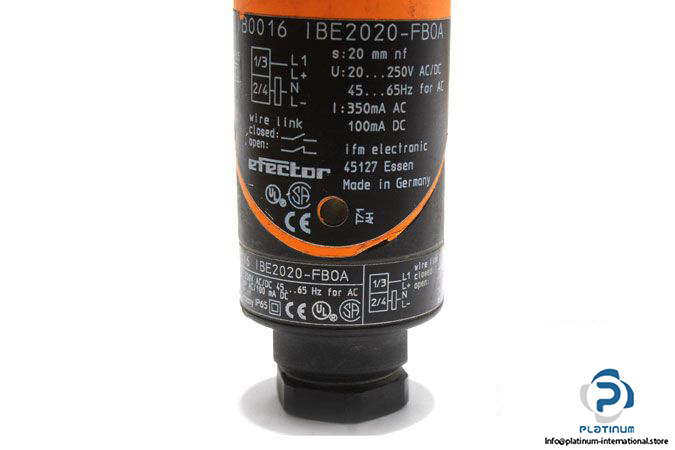

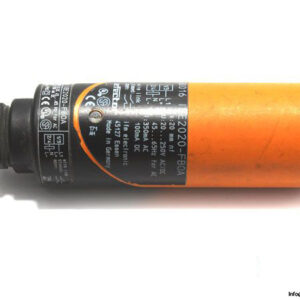

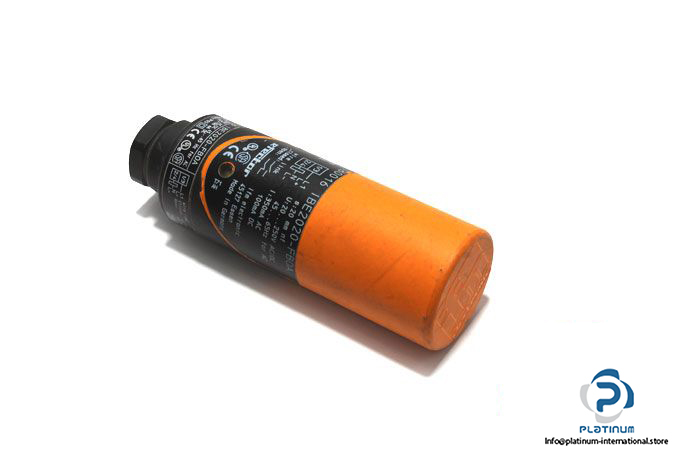

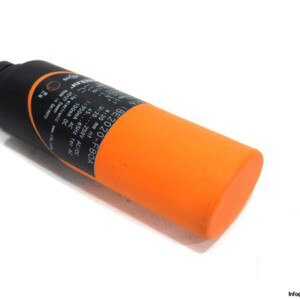

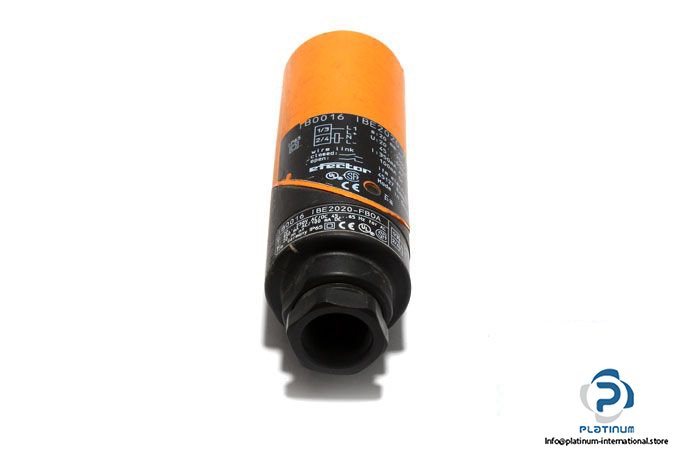

IFM IB0016 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IB0016

MRN: IBE2020-FBOA

Sensing Range: 20 mm

Real Sensing Range: 20 ± 10% mm

Operating Distance: 0 … 16.2 mm

Operating Voltage: 20 … 250 V AC/DC

Switching Output Current: 350 mA AC ,100 mA DC

Switching Frequency (AC, DC): 25 ,50 Hz

Output Function: Normally Open/Normally Closed (Selectable)

Connector Type: Cable Gland: M20 X 1.5

Protection Class: II

Enclosure Rating: IP65

Housing: Cylindrical

Ambient Operating Temperature: -25 … 80°C

Diameter, Housing Length: 34, 98 mm

Material: PBT; End Cap: PC

Mounting: Non-Flush Mountable

Weight: 184.5 g
