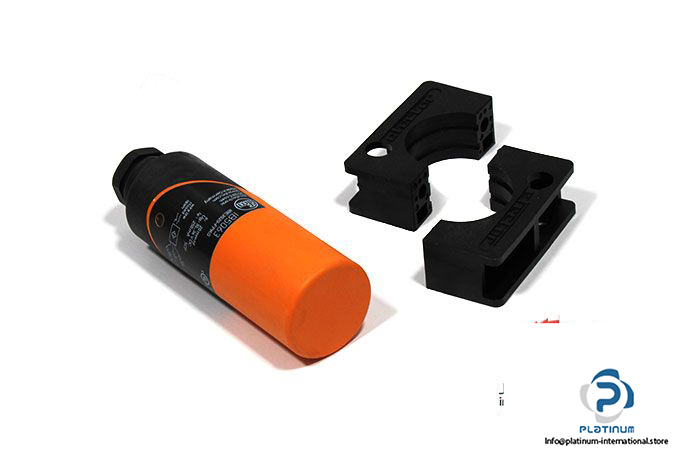

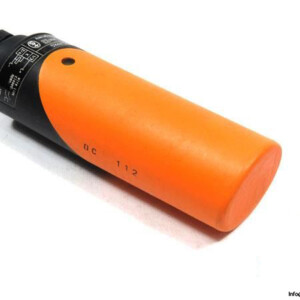

IFM IB5063 Inductive Sensor

Manufacturer: ifm

Type: Inductive Sensor

Part No.: IB5063

MRN: IBE3020-FPKG

Sensing Range: 20 mm

Real Sensing Range: 20 ± 10% mm

Operating Distance: 0 … 16.2 mm

Operating Voltage: 10 … 55 V DC

Switching Output Current: 250 mA DC

Switching Frequency: 350 Hz

Electrical Design: PNP

Output Function: Normally Closed and Normally Open

Connector Type: Cable Gland: M20 X 1.5

Protection Class: II

Enclosure Rating: IP65

Housing: Cylindrical

Ambient Operating Temperature: -25 … 80°C

Diameter: 34, 98 mm

Material: PBT; End Cap: PC

Mounting: Non-Flush Mountable

Weight: 0.2 kg
