IFM IF5647 Inductive Sensor
1 000,00$
Capteur inductif Le capteur inductif IFM IF5647 offre une portée de détection de 4 mm, un fonctionnement en 10-55 V CC et une protection IP67. Conçu pour des applications d'automatisation industrielle de haute précision.
IFM IF5647 Inductive Sensor
The IFM IF5647 Inductive Sensor is designed for high-precision proximity detection in industrial automation. With a 4 mm sensing range and robust brass housing, it ensures reliable performance in demanding environments. Its PNP/NPN electrical design and normally open/closed output function provide flexibility in various applications.
Manufacturer: IFM
Type: Inductive Sensor
Part No.: IF5647
MRN: IFA2004-FRKG/US-100-IRF
With its durable construction and high switching frequency, the IFM IF5647 is an ideal solution for industrial automation and proximity sensing applications.
| Sensing Range | 4 mm |
| Real Sensing Range | 4 ± 10% mm |
| Operating Distance | 0 to 3.25 mm |
| Operating Voltage | 10 to 55 V DC |
| Voltage Drop | 4 V |
| Switching Output Current | 300 mA DC |
| Switching Frequency | 1500 Hz |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open / Normally Closed |

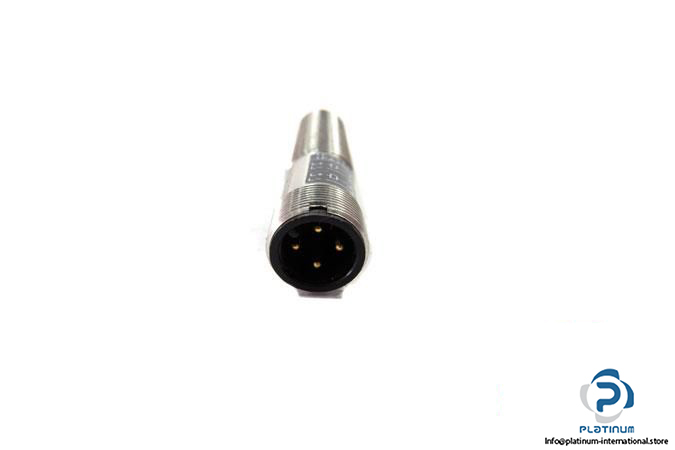

| Connector Type | M12 Connector, 4 Pin |
| Protection Class | III |
| Enclosure Rating | IP67 |
| Housing | Threaded Type |
| Ambient Operating Temperature | -25 to 80°C |
| Diameter | 12 mm |
| Length | 83 mm |
| Material | Brass White Bronze Coated, Active Face PC |
| Mounting | Non-Flush Mountable |
