IFM IF5775 Inductive Sensor
Nouveau
En stock1 unitéPrêt à être expédié
Capteur inductif Ifm IF5775 avec une portée de détection de 4 mm, tension de fonctionnement de 10 à 30 V DC et indice de protection IP68. Montage affleurant avec connecteur M12 pour applications industrielles.
10-304ConnectordcenclosureFlushifmInductiveIndustrialIP68M12mmMountableNormallyOpenOperatingPNPRangeSensingSensorSwitchVvoltage
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

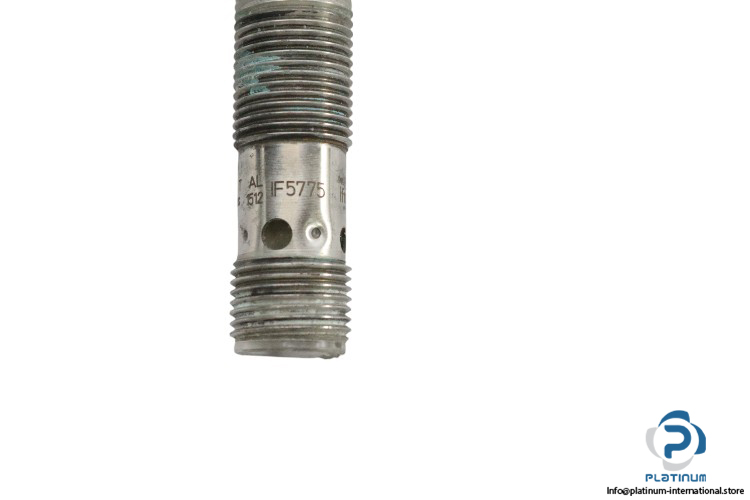

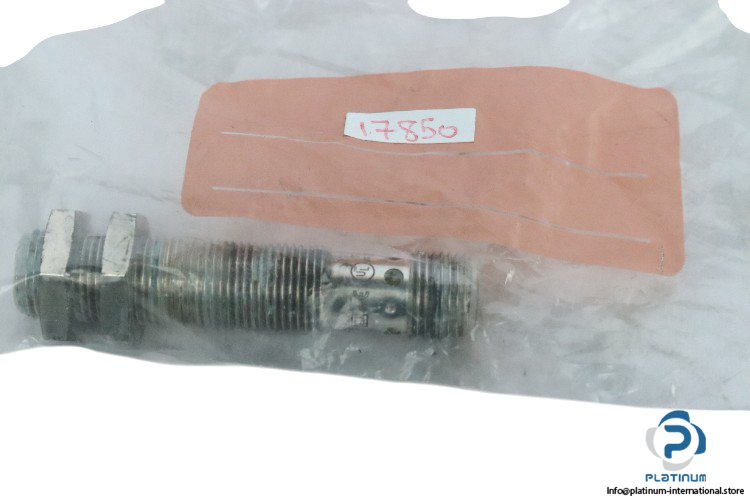

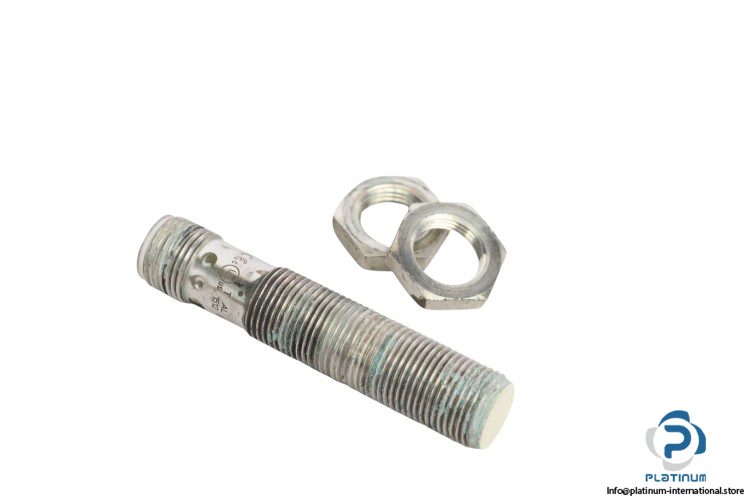

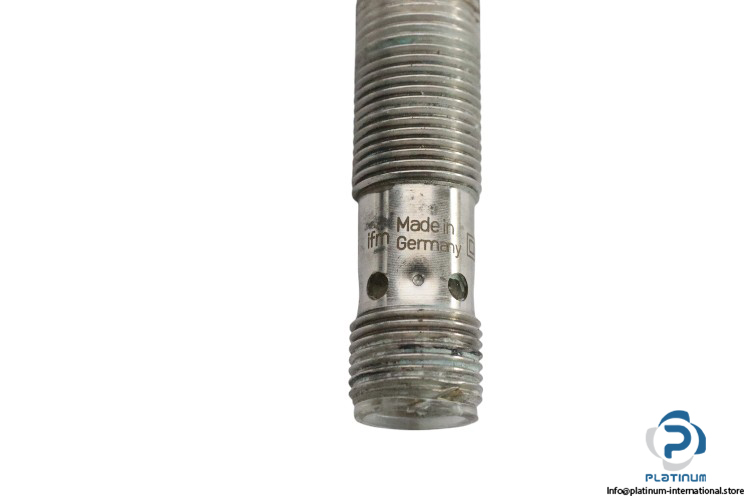

Ifm Inductive Sensor IF5775
Ifm Inductive Sensor IF5775 is a high-performance sensor designed for precise detection in industrial environments. It features a sensing range of 4 mm and an operating voltage range of 10 to 30 V DC, ensuring reliable performance under various conditions. Below are the key technical specifications:
- Manufacturer: Ifm
- Type: Inductive Sensor
- Model: IF5775
Technical Data:
- Sensing Range: 4 mm
- Operating Distance: 0 to 3.24 mm
- Operating Voltage: 10 to 30 V DC
- Electrical Design: PNP
- Switching Output: Normally open
- Current Consumption [mA]: max. 10 mA
- Connector: Connector M12
- Housing Materials: Brass white bronze coated
- Mounting: Flush mountable
- Operating Temperature: -25 to 70°C
- Enclosure Rating: IP68
- Dimensions: M12 x 1 / L = 60 mm
