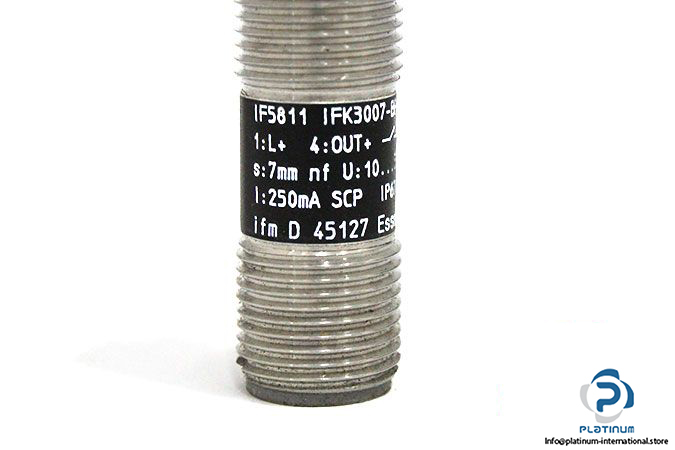

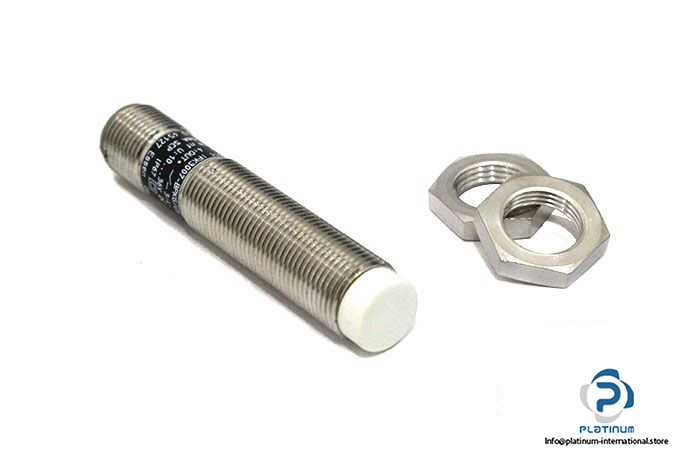

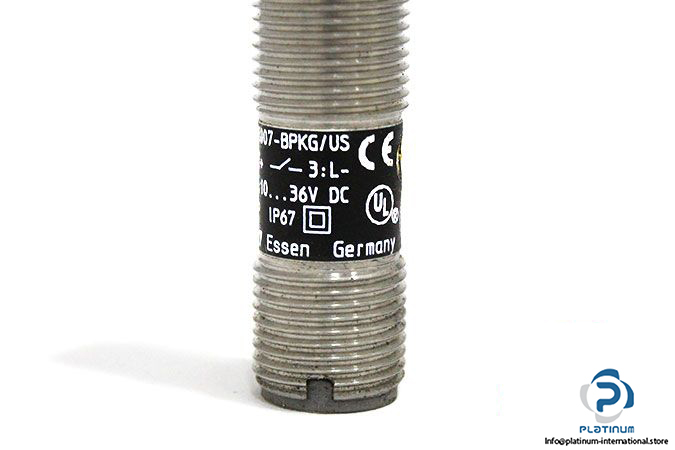

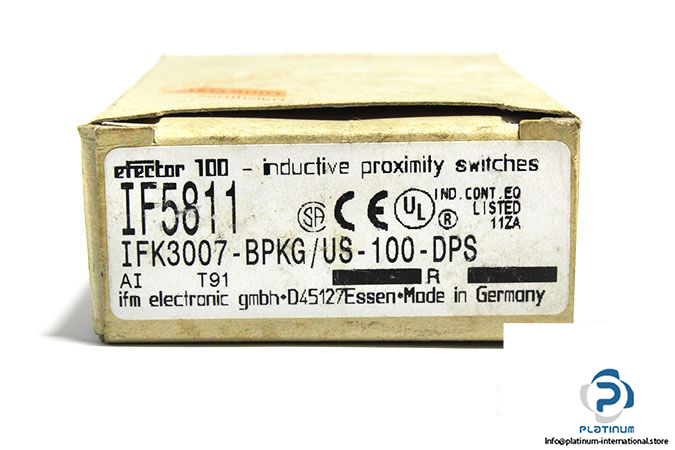

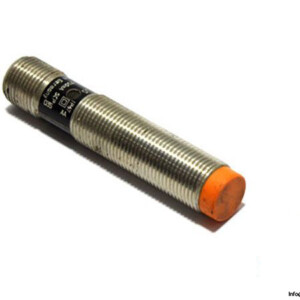

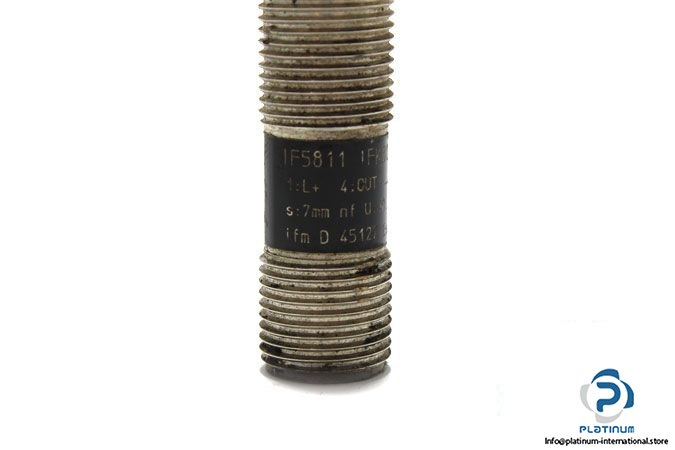

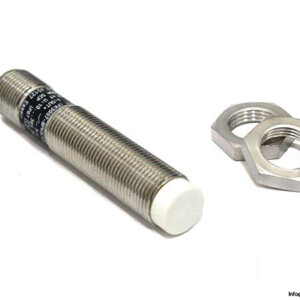

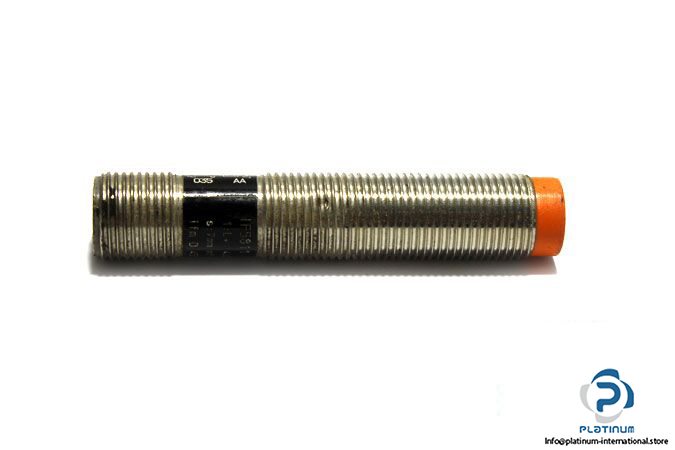

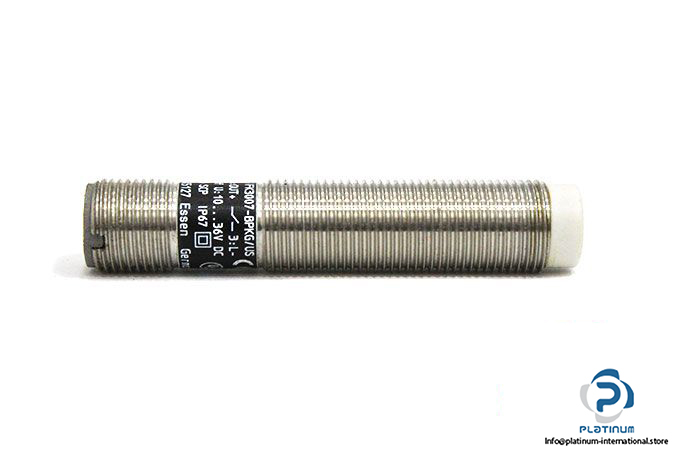

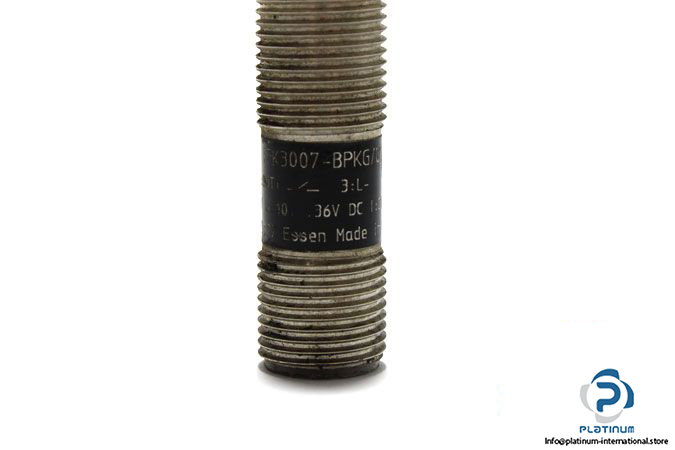

IFM IF5811 Inductive Sensor

Manufacturer: ifm

Type: Inductive Sensor

Part No.: IF5811

MRN: IFK3007-BPKG/US-104

Sensing Range: 7 mm

Real Sensing Range: 7 ± 10% mm

Operating Distance: 0 … 5.67 mm

Operating Voltage: 10 … 36 V DC

Switching Output Current: 200 mA DC

Current Consumption Max.: 10 mA

Switching Frequency: 700 Hz

Electrical Design: PNP

Output Function: Normally Open

Connector Type: M12 Connector

Protection Class: II

Enclosure Rating: IP68

Housing: Threaded Type

Ambient Operating Temperature: -25 … 70°C

Diameter, Housing Length: 12 , 60 mm

Material: Brass White Bronze Coated; Sensing Face: LCP

Mounting: Non-Flush Mountable

Weight: 0.027 kg
