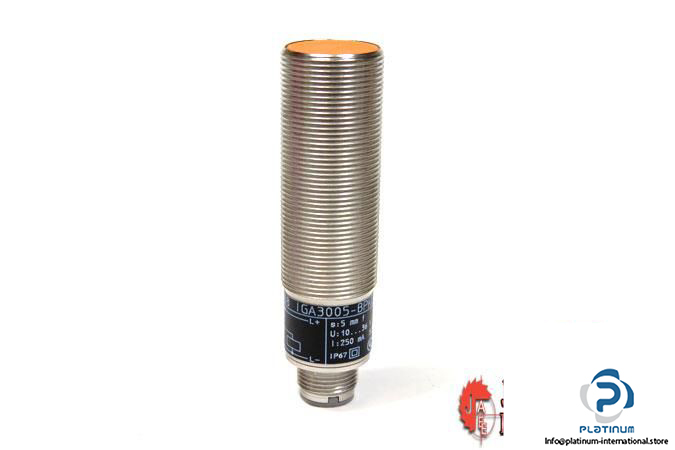

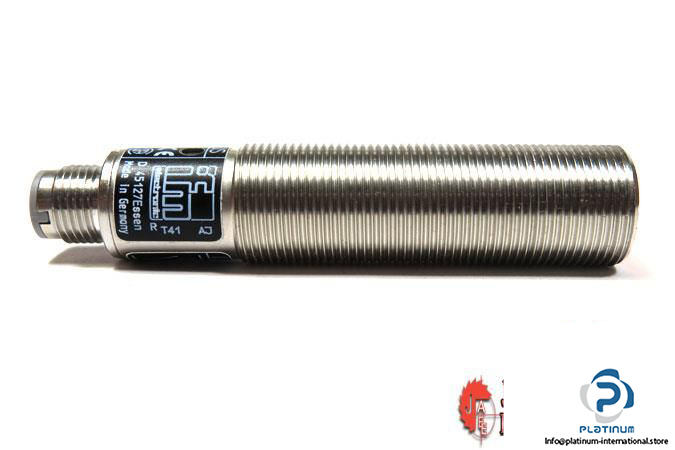

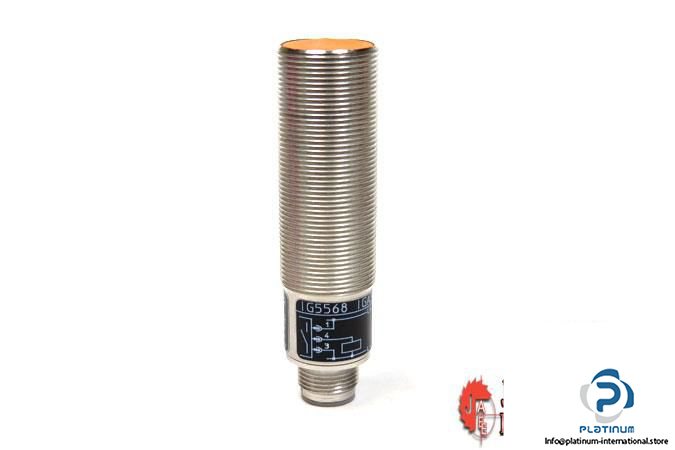

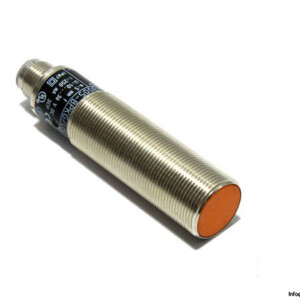

IFM IG5568 Inductive Sensor

Manufacturer: IFM

Type: INDUCTIVE SENSOR

Part No.: IG5568

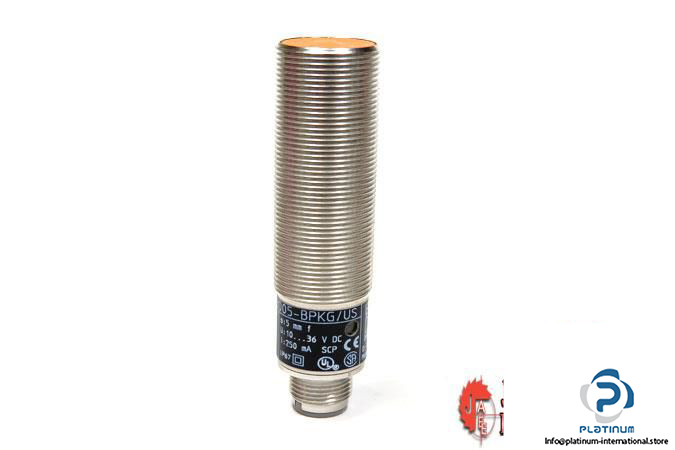

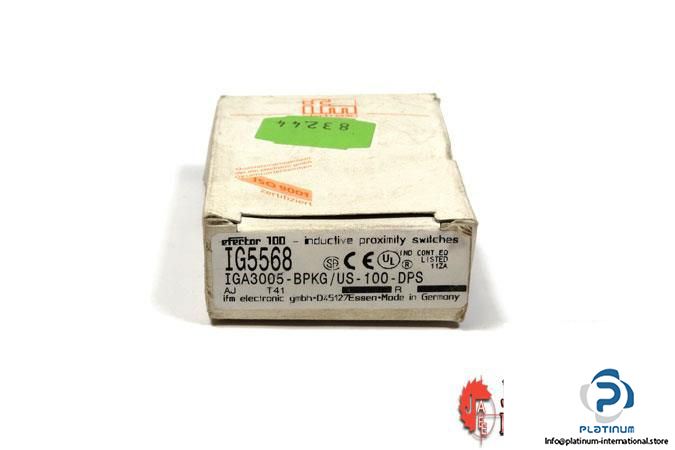

MRN:  IGA3005-BPKG/US

Sensing Range: 5 mm

Real Sensing Range: 5 ± 10 % mm

Operating Distance: 4.05 mm

Operating Voltage: 10 … 30 V DC

Voltage Drop: 2.5 V DC

Switching output current: 200 mA DC

Current consumption: 10 mA

Switching frequency: 500 Hz DC

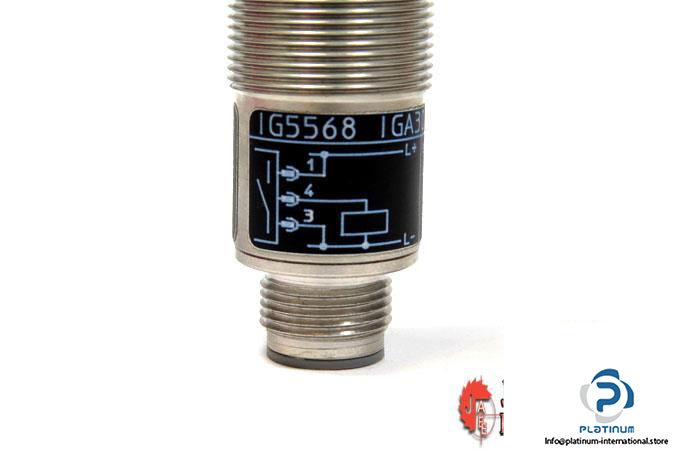

Electrical Design: PNP

Output Function: Normally open

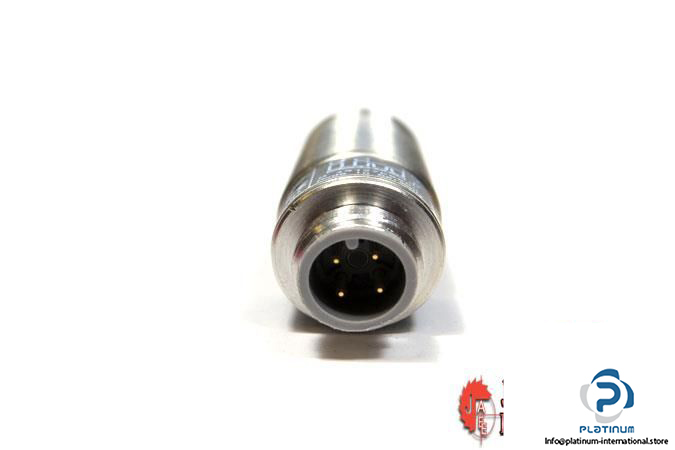

Connector type: M12 Connector, Gold plated contacts

Protection Class: II

Enclosure rating: IP67

Housing:  Threaded type

Ambient Operating temperature: -25 … 80 °C

Diameter, Housing length: 18,75 mm

Material: Brass white bronze coated; Sensing face: PBT orange

Mounting: Flush mountable

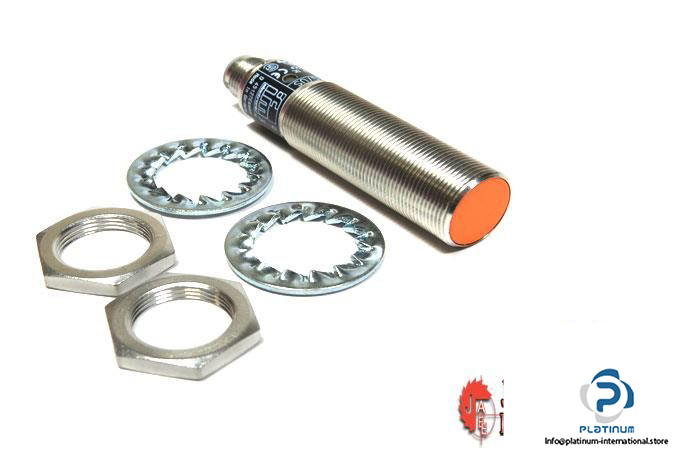

Supplied accessories: 2 lock nuts

Weight: 54.2 g
