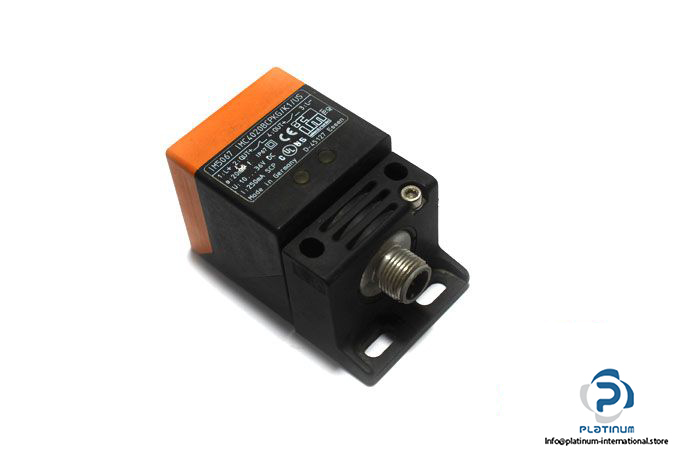

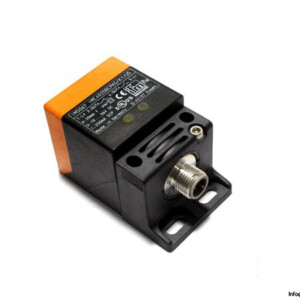

IFM IM5067 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IM5067

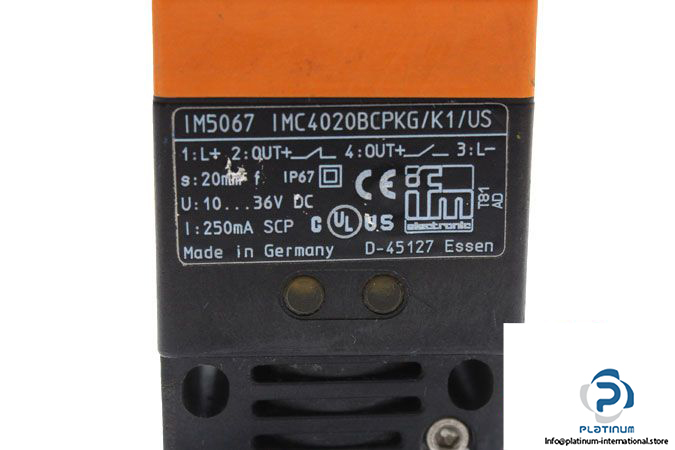

MRN: IMC4020BCPKG/K1/US

Sensing Range: 20 mm

Real Sensing Range: 20 ± 10% mm

Operating Distance: 0 … 16.2 mm

Operating Voltage: 10 … 36 V DC

Voltage Drop max.: 2.5 V DC

Switching output current: 250 mA DC

Switching frequency:  200 Hz

Electrical Design: PNP

Output Function: Complementary

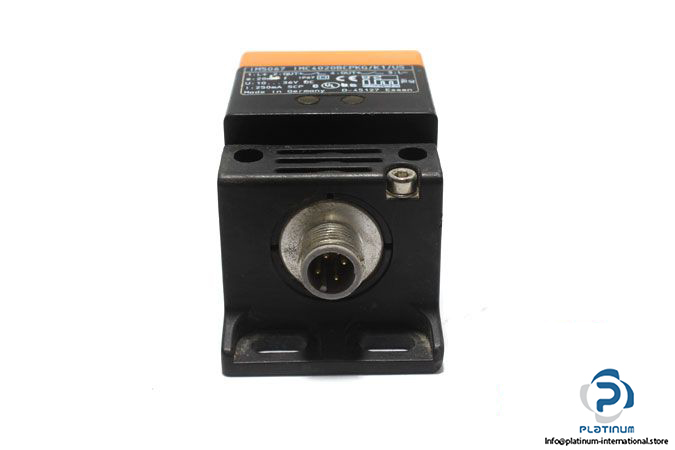

Connector type: M12 Connector

Protection Class: II

Enclosure rating: IP67

Housing: Rectangular

Ambient Operating temperature: -25 … 70°C

Dimensions: 40 x 40 x 66 mm

Material: housing: PPE; sensing face: PPE

Mounting: Flush mountable

Weight: 120 g
