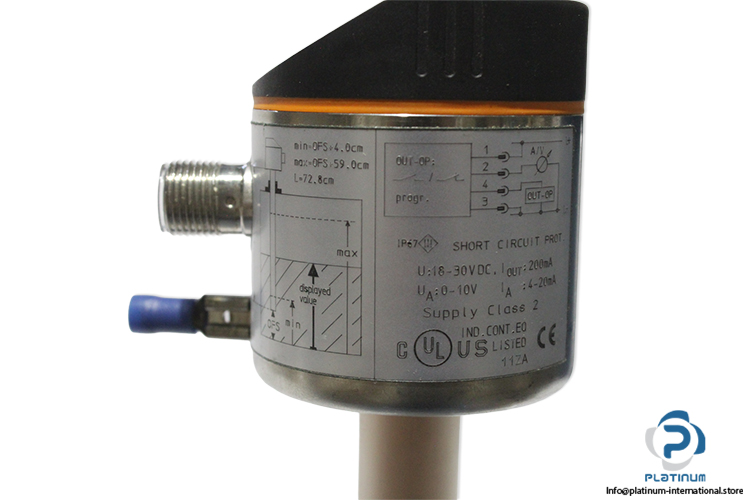

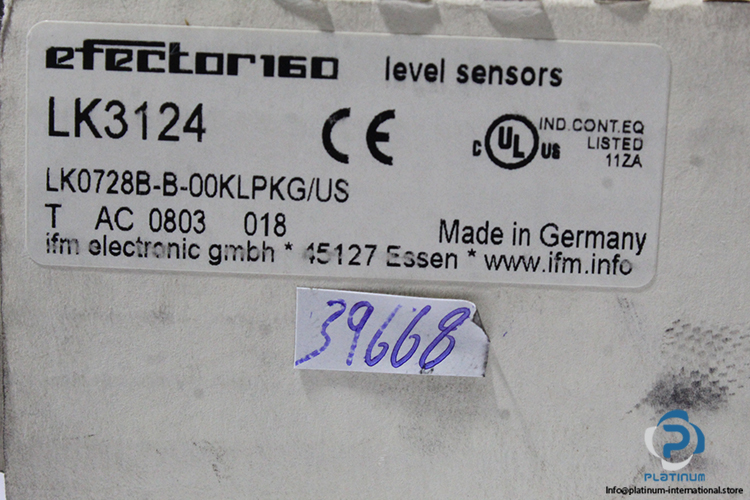

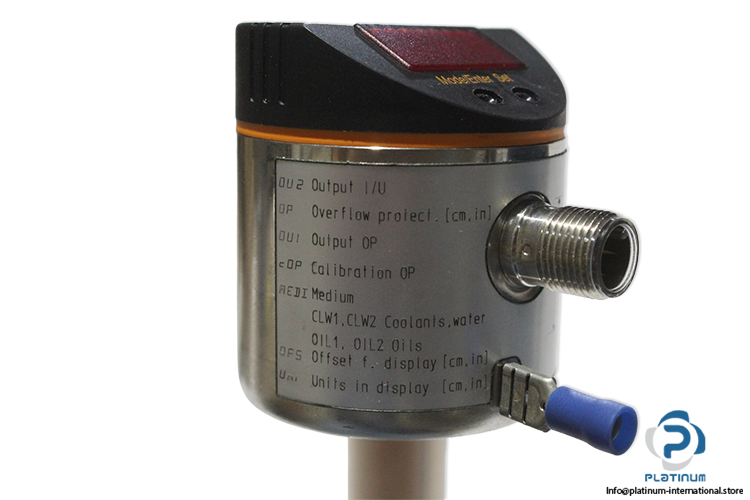

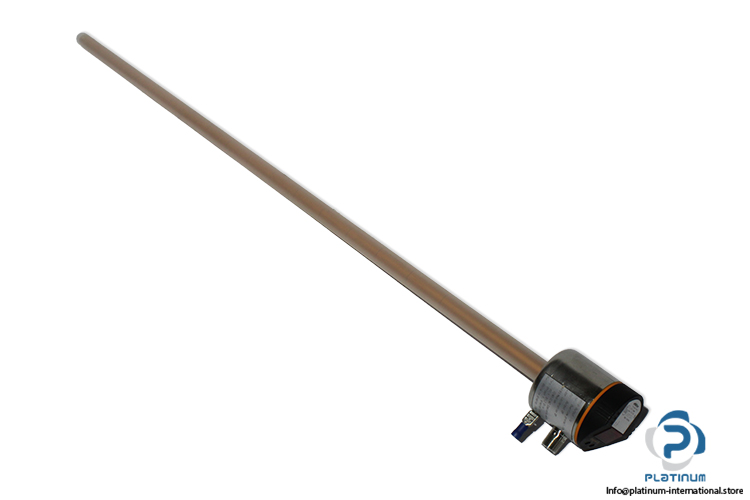

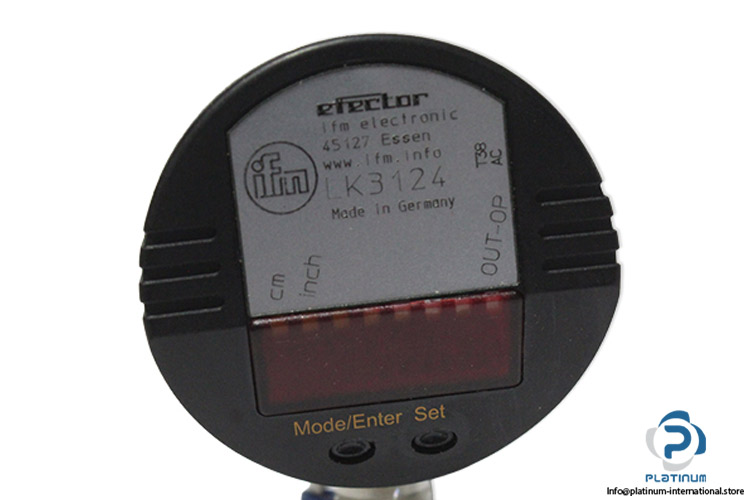

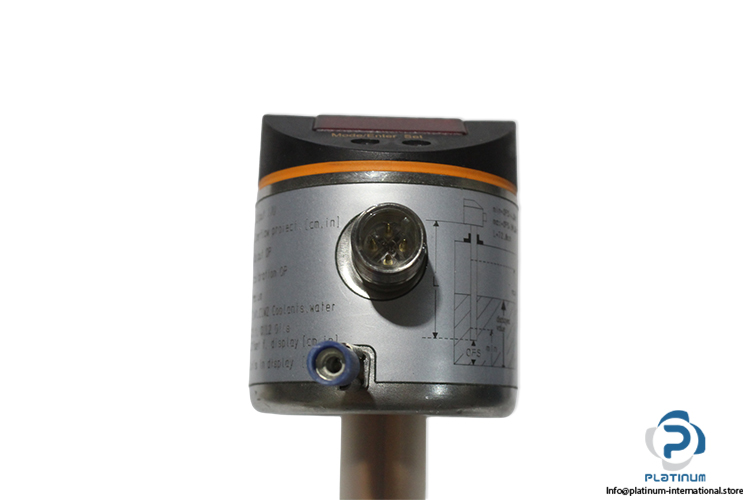

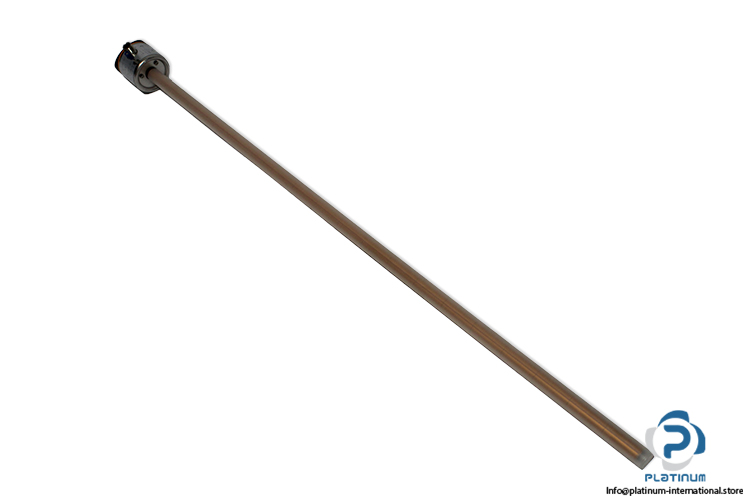

IFM LK3124 LK0728B-B-00KLPKG/US Electronic Level Sensor
Nouveau
En stock2 unitésPrêt à être expédié
Electronic Level Sensor IFM electronic level sensor with 728 mm stainless steel probe, programmable PNP/NPN output and analogue output, designed for water, oils and coolants.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
| Part No. | KN5101 |
| Suitable for | Water, Oils And Coolants |
| Change of Level Speed Max. | 300 mm/s |
| Operating Voltage (Us) | 18 … 30 V DC |
| Current Consumption | 50 mA |
| Contact | PNP/NPN 1 Normally Open (NO) / Normally Closed (CO) Programmable |
| Digital Outputs Do No. | 1 |
| Analogue Outputs Ao No. | 1 |
| Analogue Output | 4 … 20 mA / 0 … 10 V |
| Electrical Connection | M12 Connector 4-Pin |
| Probe Length | 728 mm |
| Material | Stainless Steel |
| Protection Class | IP67 |
| Oil Medium Temperature | 0 … 70 °C |
| Water Medium Temperature | 0 … 35 °C |
| Ambient Temperature | 0 … 60 °C |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103690 |
| Weight | 0,49 |
