IFM OP5030 Diffuse Reflection Sensor

En stock1 unitéPrêt à être expédié

Capteur à réflexion diffuse Le capteur à réflexion diffuse IFM OP 5030 offre une portée de détection de 3000 mm, une lumière infrarouge, une sortie PNP et une protection IP65, idéal pour les applications d'automatisation industrielle.

Fabricant
IFM
SKU
1055480
Catégorie
Sensors
Condition
Utilisé
Partager
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

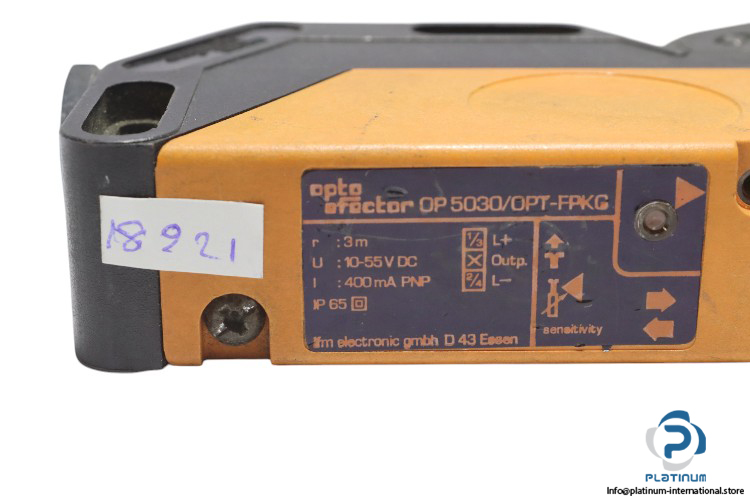

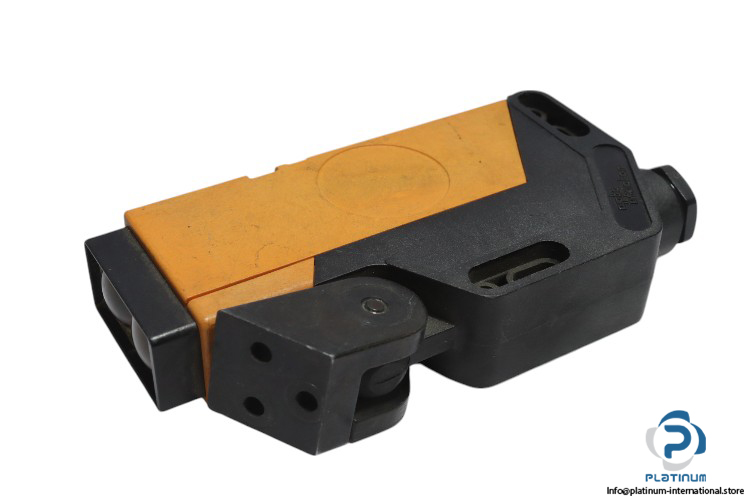

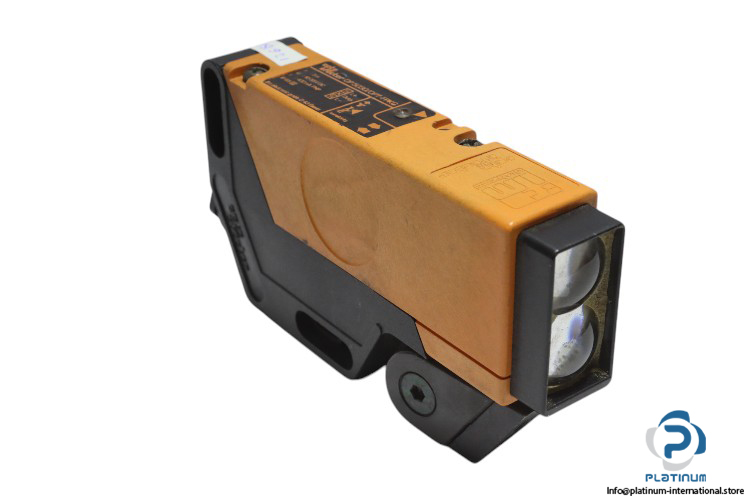

IFM OP 5030 Diffuse Reflection Sensor

The **IFM OP 5030 Diffuse Reflection Sensor** is designed to provide reliable object detection in industrial environments. It offers a **detection zone range** of **up to 3000 mm**, making it suitable for long-range sensing applications. With an **operating voltage range** of **10 to 55 V DC**, this sensor is highly versatile and compatible with various systems. It features a **light-on/dark-on mode** output function, providing flexible control options. The sensor operates with an **infrared light source** at a wavelength of **880 nm**, ensuring accurate detection. With a **maximum voltage drop of 2.5 V DC** on the switching output and a **permanent current rating** of **400 mA**, it ensures dependable performance. The **PPO modified housing** and **glass lens** provide durability, while the **IP65 protection degree** ensures reliable operation in dusty and wet environments. It operates in a **temperature range of -25 to 80°C**, making it suitable for diverse industrial conditions. The sensor is designed for easy installation with a **terminal connection**.

Manufacturer: IFM

Type: Diffuse Reflection Sensor

Model: OP 5030

The **IFM OP 5030 Diffuse Reflection Sensor** offers long-range and reliable sensing in a compact, durable design, ideal for industrial automation and demanding environments.

Operating Voltage10 to 55 V DC
Current Consumption12 mA at 24 V
Detection Zone Range3000 mm
Output FunctionLight-on/dark-on mode
Max. Voltage Drop Switching Output2.5 V DC
Permanent Current Rating of Switching Output AC400 mA
Type of LightInfrared light
Wavelength880 nm
Housing DesignRectangular
Housing MaterialPPO modified
Lens MaterialGlass
ConnectionTerminal
Ambient Temperature-25 to 80°C
Protection DegreeIP65
Dimensions86 x 28 x 142 mm
