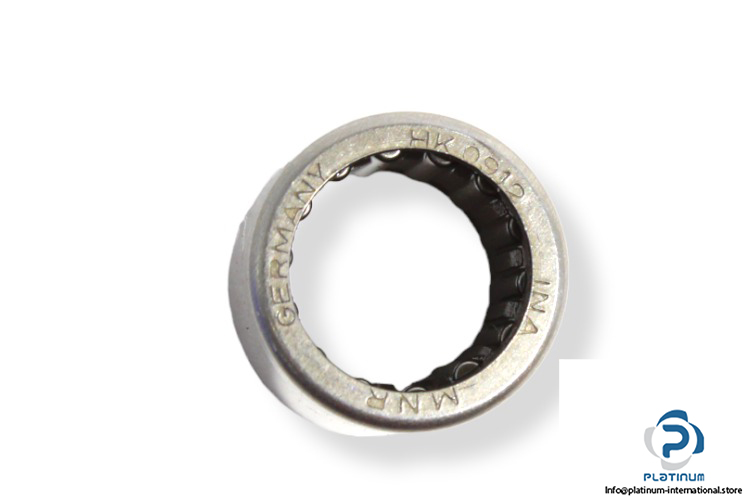

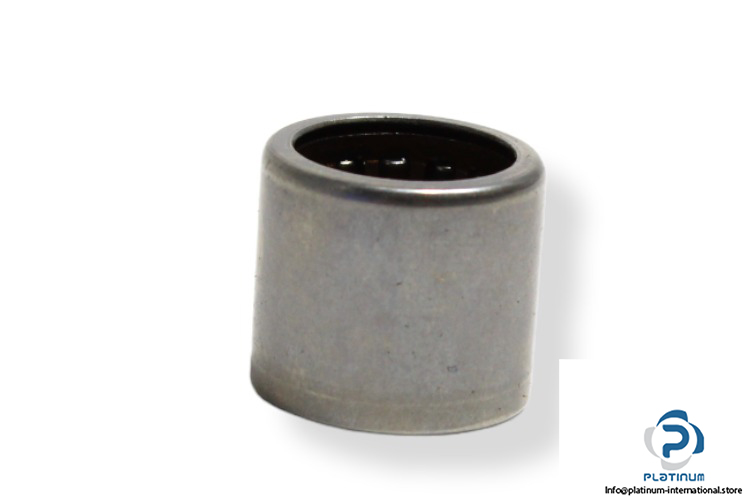

INA HK 0912 Drawn CUP Needle Roller Bearing

Manufacturer: Schaeffler INA

Type: Drawn cup needle roller bearing open end

Model: HK0912

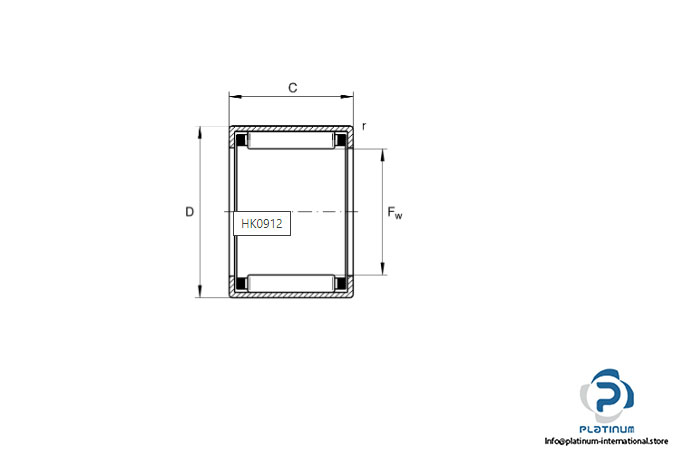

Dimensions

Diameter under rollers F_w: 9 mm

Outer diameter D: 13 mm

Width outer ring C: 12 mm

Chamfer dimension drawn cup (outer ring) r_min: 0.4 mm

Basic load ratings:

Dynamic C: 5300 N

Static C₀: 6300 N

Fatigue load limit P_u: 870 N

Limiting speed: 26500 rpm

Limiting speed for grease lubrication: 16000 rpm

Reference speed: 20200 rpm

Operating temperature: -30 °C…140 °C
