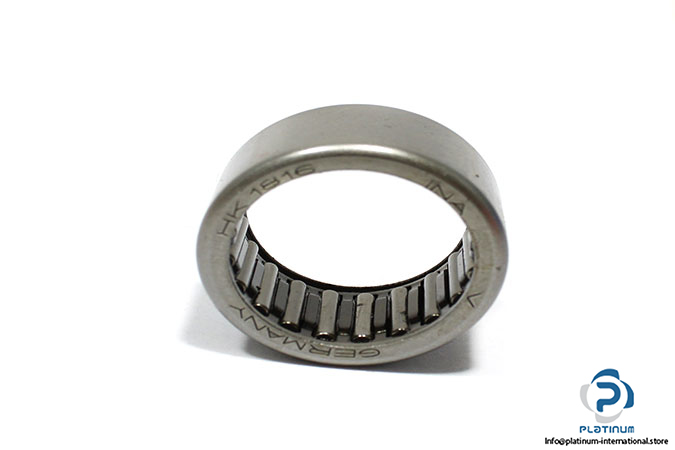

INA HK 1816 Drawn CUP Needle Roller Bearing

Manufacturer: Schaeffler INA

Type: Drawn cup needle roller bearing open end

Model: HK1816

Dimensions

Diameter under rollers F_w: 18 mm

Outer diameter D: 24 mm

Width outer ring C: 16 mm

Chamfer dimension drawn cup (outer ring) r_min: 0.8 mm

Basic load ratings:

Dynamic C: 11600 N

Static C₀: 17300 N

Fatigue load limit P_u: 2180 N

Limiting speed: 14000 rpm

Limiting speed for grease lubrication: 8400 rpm

Reference speed: 10400 rpm

Operating temperature: -30 °C…140 °C
